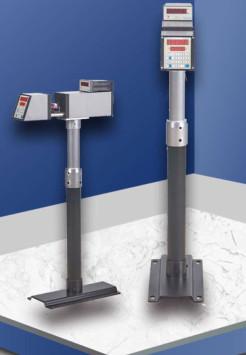

QIPANG Infrared diameter measuring instrument AND Suitable for measuring

Applications
● Various transparent and translucent objects such as glass tubes and glass rods
● Local area network (LAN) cable
● Coaxial cable
● Optical fiber, flat cable
● Frequency camera cable, communication cable
● Power cables, pipes, wires

Mounting position
Diameter Measurement may be mounted before or after the cooling trough. When mounted before the cooling
trough, an optimized controlling effect may be obtained through in-time feedback due to the proximity of the
measuring head to the extruder. But nominal value must be accordingly. When mounted after the cooling
trough, the measured value is the real diameter of the wire or cable. But the controlling effect is not so good
because of large control lag. Be sure to blow dry the tested wire of cable otherwise the measuring precision
will be affected by the water coating around the wire or cable. In practical use, the nominal value shall be
increased appropriately according to the water content of the test object.

Parameter

Product description
● Non-contact optical measurement
● Multi-angle display of operation panel
● Laser or LED long-life light source
● Adopt advanced DSP processing technology
● Excellent dust and dirt resistance design
● Protection grade IP65, NEMA4
● S232/485 communication interface
● Fully automatic closed-loop control technology, automatic feedback control wire diameter
● The measurement is not affected by speed and vibration, and the wire diameter exceeds the
tolerance automatically.
● Scanning speed 600 times/sec (up to 1400 times/sec)
