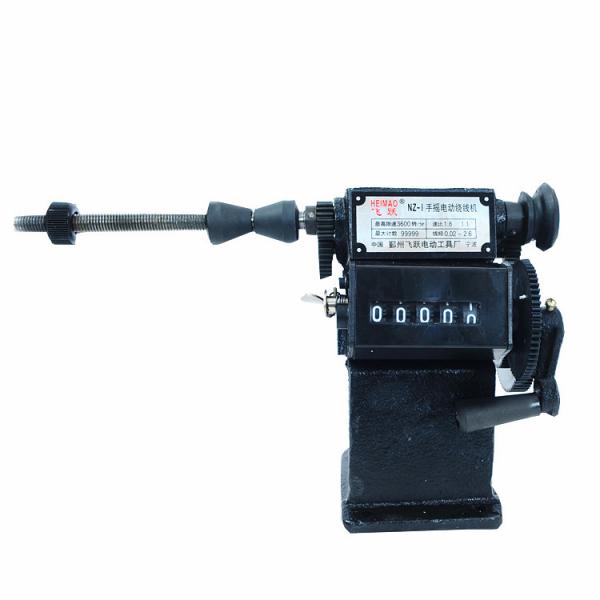

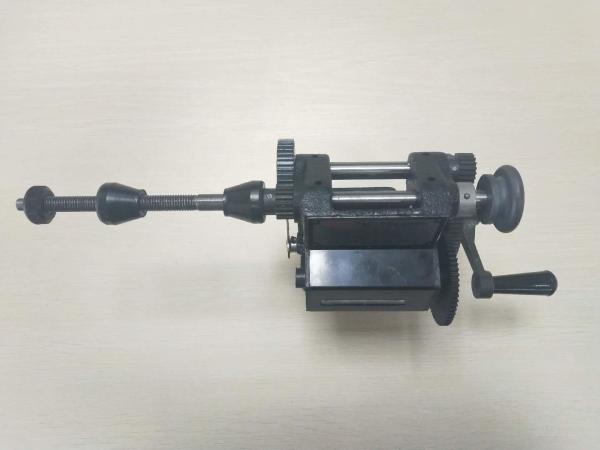

Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Iron Dia 150mm Manual Wire Coiling Machine With Handle
Specifications
Brand Name :
QIPANG
Model Number :
NZ-1
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs/month
Delivery Time :
15 days
Packaging Details :
carton box
diameter :
150mm
Material :
Iron
count range :
9999
net weight :
3kg
brand :
QIPANG
dimension :
290*100*180
Country of origin :
China
certification :
CE
Description

DIY Manual Wire Coiling Machine With Handle For Small Workshop

1. Purpose:

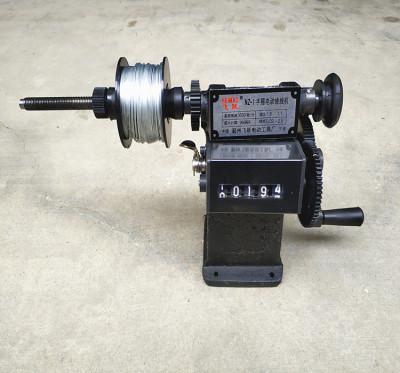

NZ-1 type hand crank electric counting winding machine is suitable for the telecommunications and electrical industry, winding various tape recorder heads, inductance coils, instrument coils, buzzers, relays, timers, various coils and power transformers in televisions, Radio and various flat coils, etc. The products designed and produced by our factory are firm and reliable, easy to operate and flexible, stable performance, accurate counting, clear numbers and other characteristics.

2. Mechanical principle:

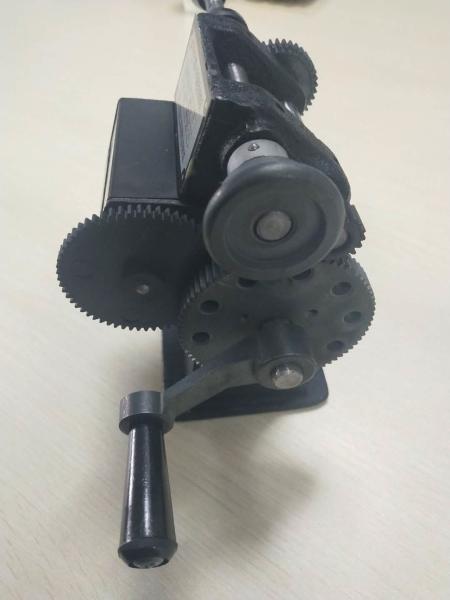

1. The hand-cranked electric counting winding machine is driven by the driving gear of the crank handle to drive the
main shaft, and the counter is counted by the driving gear without head gear transmission. The speed ratio of the main
shaft and the counter shaft is 10:1. When the main shaft rotates 1, the counter shaft is 1/ 10 revolutions, that is, the
number of letters in the counter is 1 revolution.
2. This machine can be used for both hand crank and electric. When the handle is removed, the maximum speed of the
main shaft of the winding machine is 2000 rpm.
3. Add a small amount of oil to the main oil hole normally.

Maximum diameter of winding coil
 150mm
Maximum width of winding coil 120mm
Count range 0-9999 circle
Transmission ratio 1:8 or 1:1

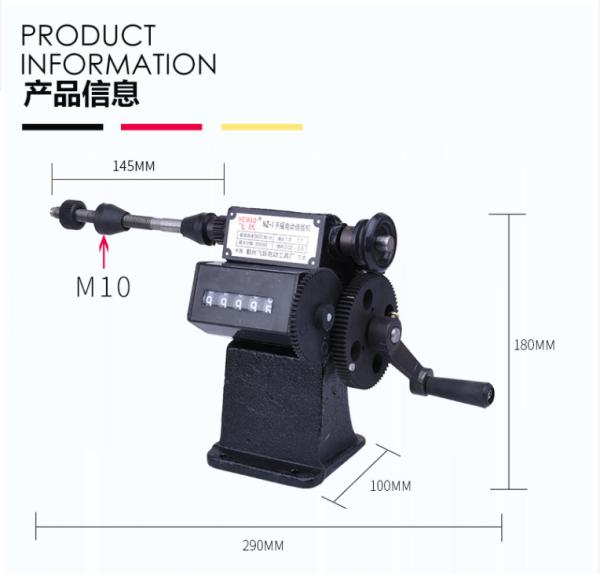

External dimension(length X width X height) 290*100*180 mm
Net weight 3kg
