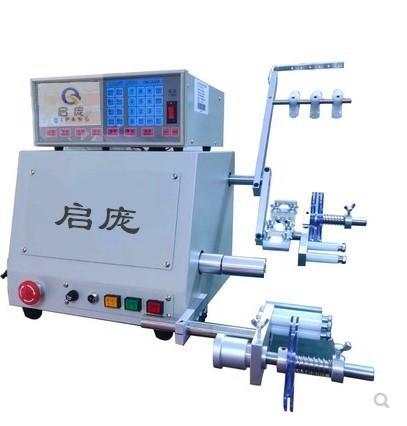

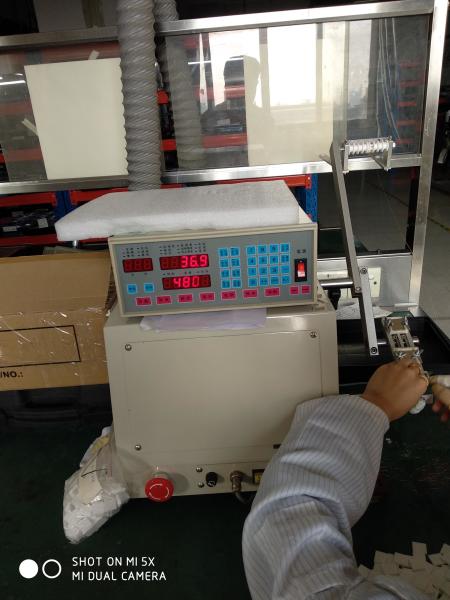

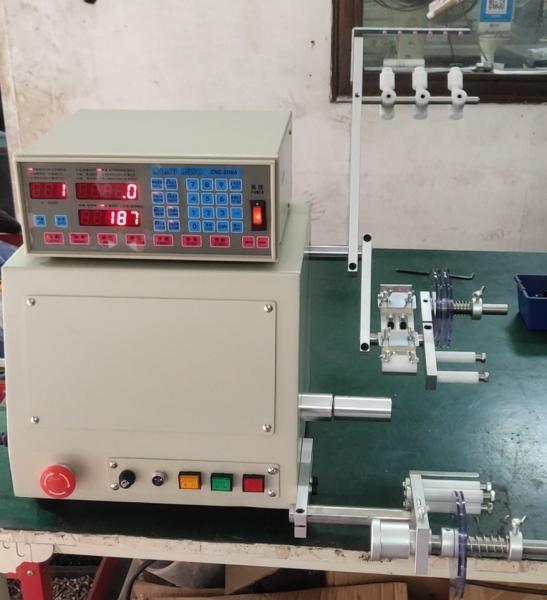

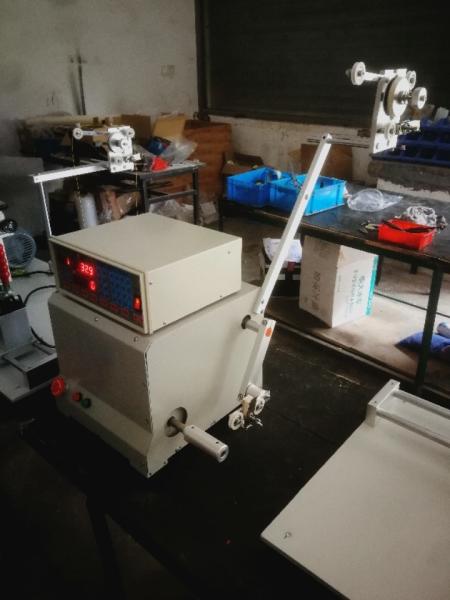

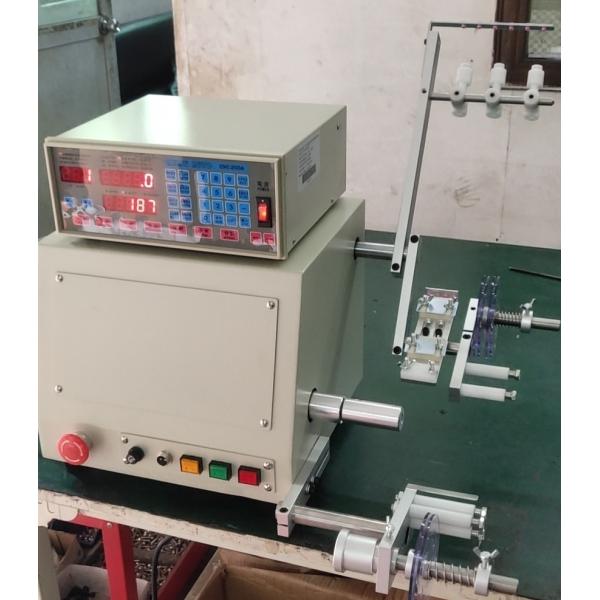

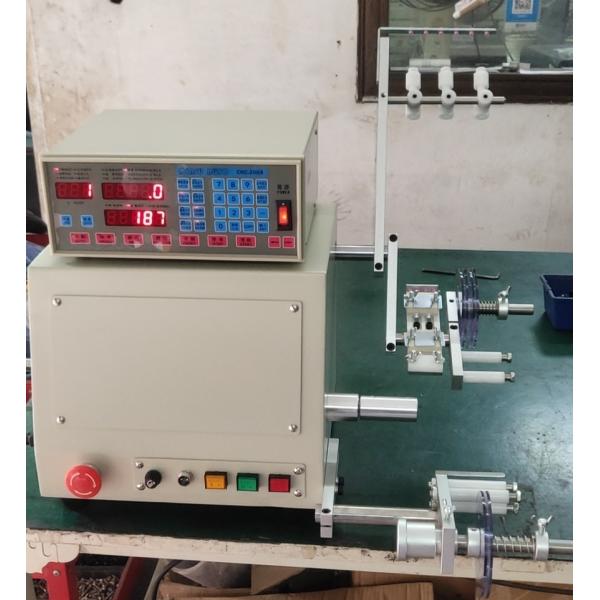

1500rpm Copper CNC Transformer Coil Wire Winding Machine
1500rpm Copper CNC Transformer Coil Wire Winding Machine
1500rpm Copper CNC Transformer Coil Wire Winding Machine
1500rpm Copper CNC Transformer Coil Wire Winding Machine
1500rpm Copper CNC Transformer Coil Wire Winding Machine
1500rpm Copper CNC Transformer Coil Wire Winding Machine
1500rpm Copper CNC Transformer Coil Wire Winding Machine
1500rpm Copper CNC Transformer Coil Wire Winding Machine
1500rpm Copper CNC Transformer Coil Wire Winding Machine
1500rpm Copper CNC Transformer Coil Wire Winding Machine
Specifications
Brand Name :
QIPANG
Model Number :
335
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 units per month
Delivery Time :
15 work days
Packaging Details :
wooden box
color :
white
size :
48*39*47cm
Weight :
32kg
Axis :
1
Port :
Shanghai
Description

Copper Wire CNC Transformer Coil Wire Winding Machine Magnetic Core

Advantages

1. The controller adopts a single-chip microprocessor design, with stronger functions, smaller size, and strong anti-interference ability;
2. The memory uses FLASH ROM, which has a large capacity and can store 1000-step winding data. Each step can set 9 winding data and 5 function options. The data will not be lost after the power is turned off;
3. The operation and operation mode can be changed for different products and use occasions, and it can be used more widely
4. The winding shaft provides 100 selections of winding speed, and the high speed and low speed of each step can be set separately

Number of shaft Right axis 1
Wire diameter 0.2~3.0mm
Line spacing 0~9.999mm
Width 110/190mm(Max.)
Swivel dia. 300mm(Max.)
Spindle motor Powerful motor 750W
Winding motor Stepping motor
Max. speed 800/1500rpm
Number of memory groups 999 sets
Power requirements AC220V±10%,50/60Hz
Size (cm) 48*35*45
Weight 48kg
