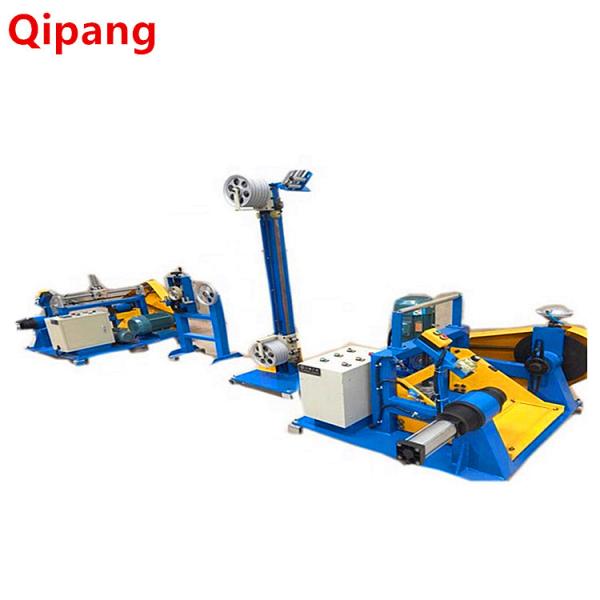

Shanghai Qiapng TC1000 fully automatic steel wire rope winding machine, high quality wire drum factory.

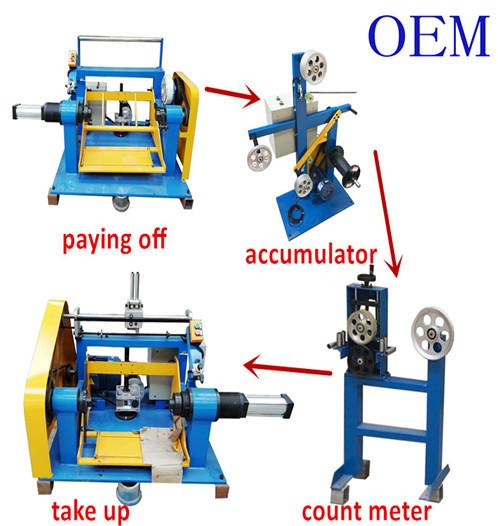

1. Φ630-Φ1000mm active pay-off machine
Adapt to bobbin flange OD diameter: Φ630-Φ1000mm, Φ1000mm, overall width 475-750mm, inner hole 56/80
Top shaft mode: no shaft top cone pneumatic top tight
Pay-off speed: MAX200 m / min
Clamp the bobbin: 0.75KW electric screw lift
Power: 4KW motor drive spool release line
Brake: 10KG electromagnetic brake
Maximum load capacity: 3000 kg

2. Vertical tension storage Accumulator/Dancer
Total height of 2 meters;
The storage line volume is 0-15 meters, and the storage line wheel is Φ400mm (4 groups + 3 groups);
Adapt to the wire diameter: 0.5-10mm2 hard wire, Ф15mm soft wire;
Guide wheel material: aluminum alloy material, surface hardening treatment;
Control mode: The sensor gives a 0-10V voltage signal to control the speed of the line.

3. Meter counter
Form: one-way stop;
The surface of the meter wheel and the pressure roller adopts a rubber wheel to ensure that the wire is not damaged.

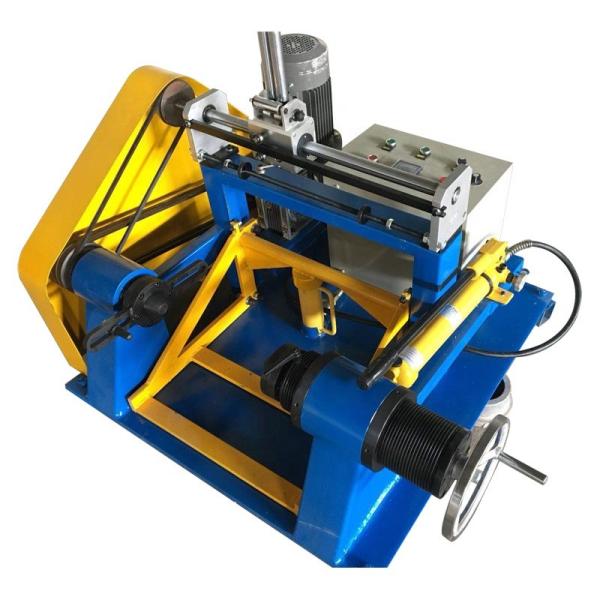

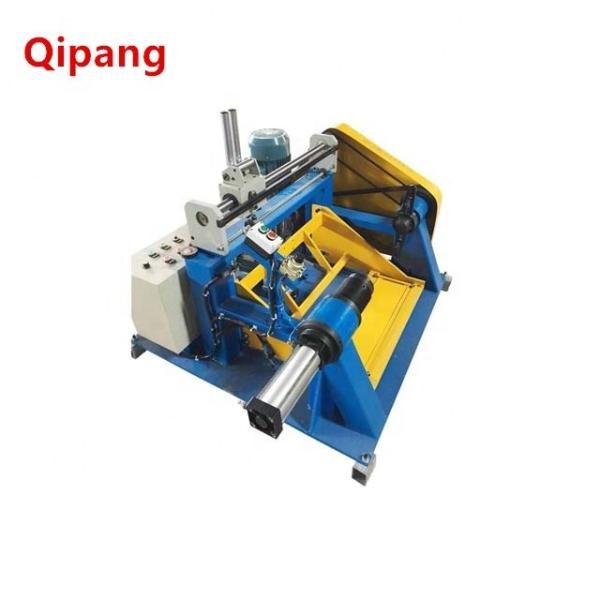

4. 400-630 shaftless winding machine
Adapted to bobbin flange OD diameter: PN400-PN630, coil width 280-475mm, inner hole diameter Φ56mm
Applicable line speed: 200m/min
Top shaft mode: no shaft top cone
Clamp the bobbin: electric screw lifts, the upper and lower limits are safe and reliable
Cable: GP30 rolling ring drives, adjustable pitch. Wire winding : 10N.M torque motor winding wire

Bilateral top axle power take-up machine:

Bilateral top axle power take-up:

Our company:

Our service:

1. OEM Manufacturing welcome: Product, Package...
2. We will reply you for your inquiry in 24 hours.
3. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ:

Q1: Are you a factory or trading company?
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.

Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.

Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.

Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.

Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.

Q7: Will you provide operation guidance for us?
We will send the instruction book with the machine and send you a video about how to operate the machine.

Q8 : How long is the warranty period?
12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.

Q9 : What certification do you have?
All of our machines have the SGS certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea. We are an ISO9001:2008 quality management system certificated manufacturer.

Q10: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
