Specifications
Place of Origin :
Jiangsu, China
Brand Name :
DURA
MOQ :
1
Machine type :
Cold Forging Machine
Weight :
550 kg
Ball size range :
1.5-15.8 mm
Rated Output :
100-250 pcs/min
Motor power :
1.1-15 kw
Dimensions :
1.3x0.81x1.075 - 4x2.54x2.57 m
Core components :
Motor
Model range :
Z32-5, Z32-7.5, Z32-10, Z32-13, Z32-16
Max ball size :
15.8 mm
Min ball size :
1.5 mm
Max output speed :
250 pcs/min
Min output speed :
100 pcs/min
Max motor power :
15 kw
Min motor power :
1.1 kw
Max weight :
8660 kg
Description

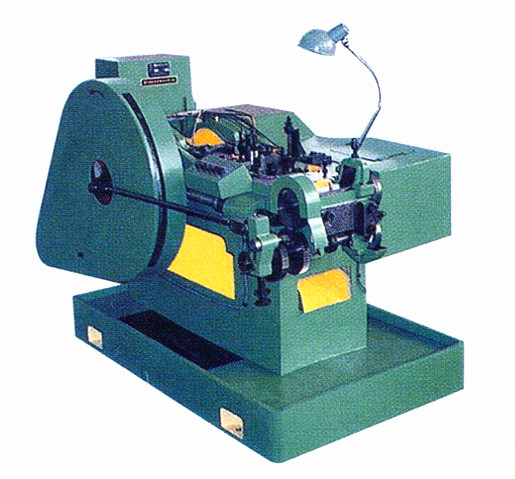

STEEL-BALL MAKING MACHINE

This machine is specially designed for manufacturing ball- blanks. It applies the form of reasonable construction, reliable performance and easy adjustment.

Technical Specifications

Model Z32-5 Z32-7.5 Z32-10 Z32-13 Z32-16
Ball size range to be processed (mm) 1.5-4.7 3.1-7.4 4.7-9.5 6.3-12.7 9.5-15.8
Rated Output (pcs/min.) 250 220 150 130 100

Motor power (kw)

 1.1 2.2 5.5 7.5 15
Weight (kg) 600 1600 2500 3000 8660
Dimensions (L*W*H)(m) 1.3x0.81x1.075 1.8x1.05x1.22 2.19x1.3x1.35 2.5x1.8x1.35 4x2.54x2.57

Cold Forging Steel Ball Making Machine with Competitive Price and 1.1-15 kW Motor Power for Manufacturing Plants

The demostration video of the machine please check the following link:

http://v.youku.com/v_show/id_XMTQ5Njc1Mzg2MA==.html?from=y1.7-1.2

And feel free to contact us for the password for viewing.

Advanced models with higher speed are available too, for more information, please check the ZS32 series steel ball making machines or contact us for proper recommendation.
