Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Specifications
Power :
45 kW
Weight :
5500 kg
Model :
SBFM-400
Ball processing range :
φ2~25.4mm
Max force :
300KN
Loading capacity :
400kgs/load
Inverter brand :
Nidec
Main motor :
45KW
PLC brand :
Delta
Guide transmission motor :
0.55KW
Guide lift motor :
0.25KW
Oil pump motor :
2.2KW
Water pump motor :
0.25KW
Core components :
Bearing
Packaging material :
Steel frame + plywood plates
Place of Origin :
Jiangsu, China
Brand Name :
DURA
MOQ :
1
Price :
US$23,130
Model Number :
SBFM-400
Payment Terms :
T/T
Delivery Time :
30~60days
Packaging Details :
Pallet
Description

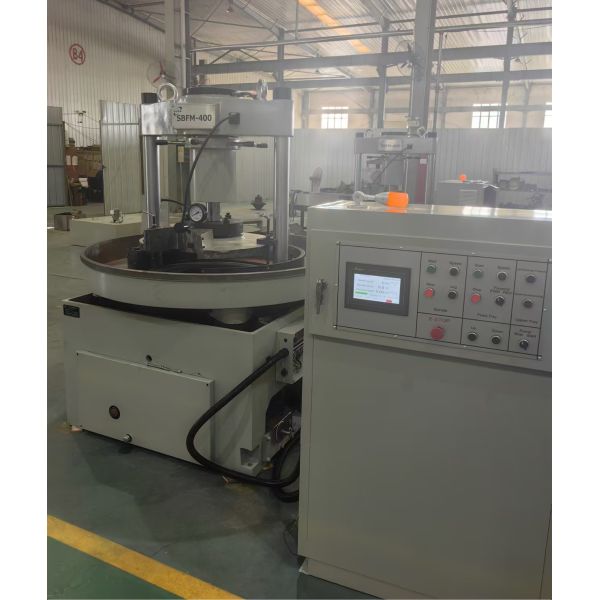

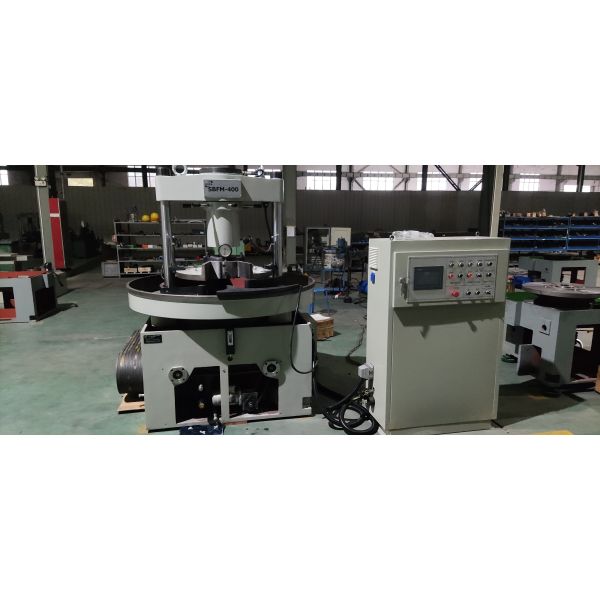

Steel Ball Flashing Machine
The Steel Ball Flashing Machine is designed for the secondary processing stage in steel ball production. Following the cold heading process, this machine efficiently removes excess material from ball blanks to achieve precise dimensional accuracy.
Industrial Applications
This advanced ball flashing equipment is extensively utilized in bearing manufacturing facilities and other industrial sectors requiring high-precision steel ball production.
Technical Specifications
Model: SBFM-400
Steel ball processing range: φ2~25.4mm
Maximum force: 300KN
Loading capacity: 400kgs/load
Inverter: Nidec brand
Main motor: 45KW
PLC: Delta brand
Ball guide transmission motor: 0.55KW
Ball guide lift motor: 0.25KW
Oil pump motor: 2.2KW
Water pump motor: 0.25KW
Weight: 5500kgs
Product Gallery
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Packaging & Shipping

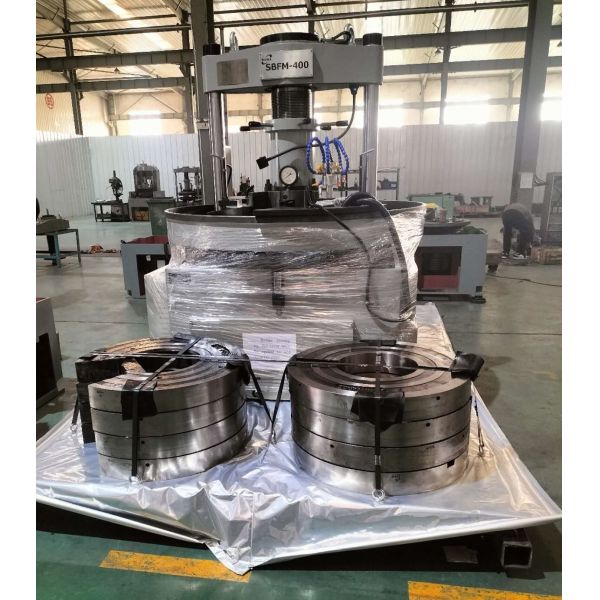

Our steel ball flashing machines are securely packaged using robust steel frame construction with protective plywood plates to ensure safe transportation and delivery.
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Global Sales & Service Network
We maintain an extensive worldwide network to provide comprehensive sales support and technical service for all our steel ball flashing machines.
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
