Specifications
Place of Origin :
Jiangsu, China
Brand Name :
DURA
MOQ :
1
Price :
US$23,130
Model Number :
SBFM-400
Payment Terms :
T/T
Delivery Time :
30~60days
Packaging Details :
Pallet
Power :
45 kW
Weight :
5500 kg
Model :
SBFM-400
Ball processing range :
φ2~25.4mm
Max force :
300KN
Loading capacity :
400kgs/load
Inverter brand :
Nidec
Main motor :
45KW
PLC brand :
Delta
Guide transmission motor :
0.55KW
Guide lift motor :
0.25KW
Oil pump motor :
2.2KW
Water pump motor :
0.25KW
Core components :
Bearing
Packaging material :
Steel frame + plywood plates
Description
Product Overview

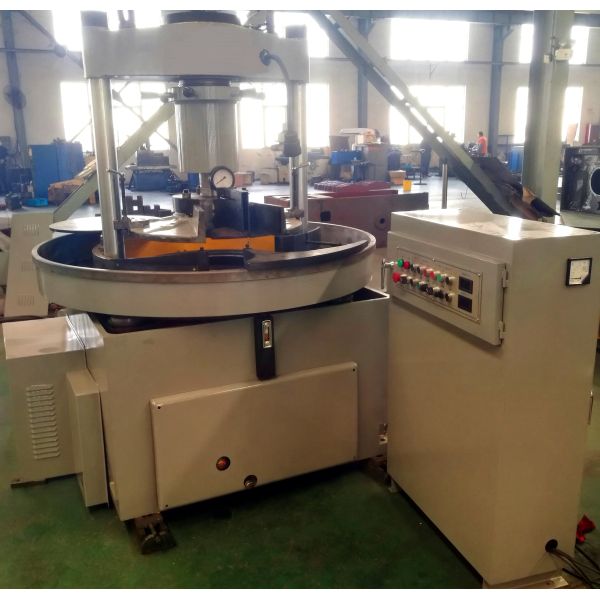

Steel Ball Flashing Machine

Steel ball flashing machine is used in the second process of steel ball production. Right after the ball blanks are formed from the cold heading process to maximum remove the stock from ball blanks. This ball flashing macine is widely used in bearing manufacturing or other industries where steel balls are produced.
PRODUCT SPECIFICATIONS
Model: SBFM-400

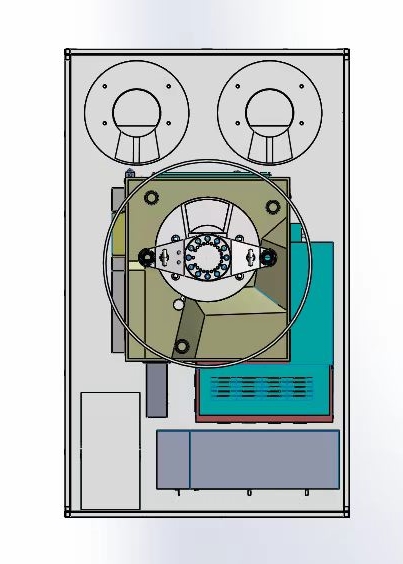

- steel ball processing range: φ2~25.4mm - Max. force: 300KN - loading capacity: 400kgs/load - inverter: Nidec brand - main motor: 45KW - PLC: Delta brand - ball guide transmission motor: 0.55KW - ball guide lift motor: 0.25KW - oil pump motor: 2.2KW - water pump motor: 0.25KW - overall dimensions: please refer to drawing attached below - weight: 5500kgs

Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity

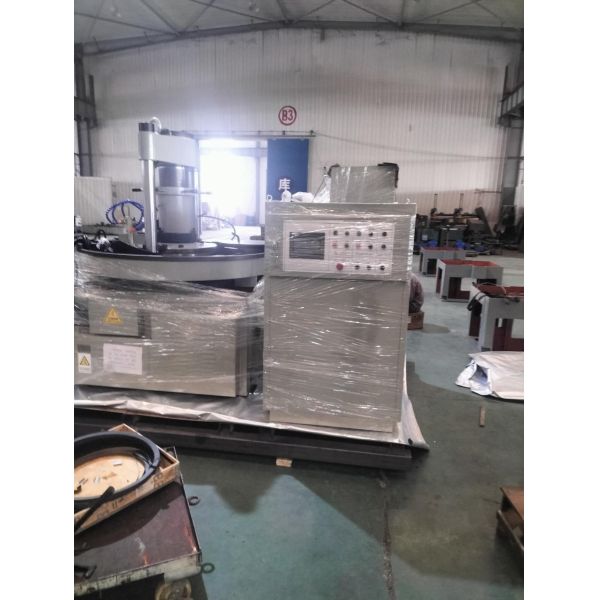

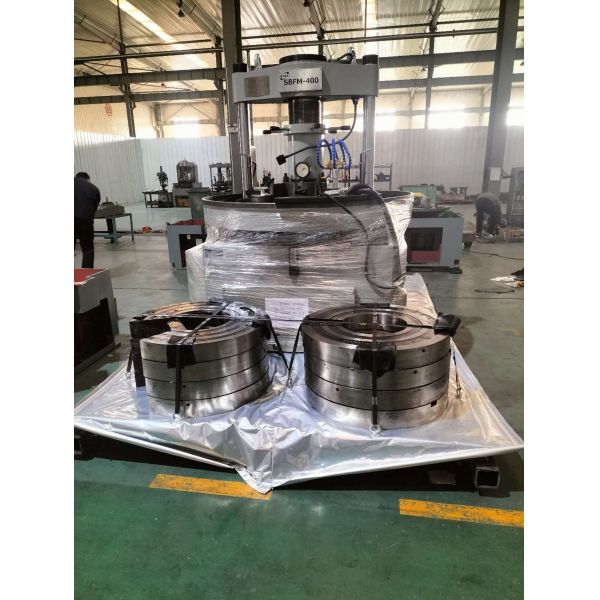

Product packaging
Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity

Steel frame + plywood plates

Steel Ball Flashing Machine with 45KW Power and 400kg Loading Capacity

Packing
