Long N type connector 100W PA1200-1500MHz rf power amplifier bidirectional anti drone module

This is long N type connector high power 100W bidirectional RF power amplifier module ,the module main features is that stable input 0-10dB,longer output connector and capable of achieving ultra-wide bandwidth.Customers can choose a solution without signal source or with external signal source according to their needs.

No signal source build in the power amplifier can applicated in signal base station tower ,It can receive and enhance the communication signals used.External signal sources are usually used as interference signals for drones.Regardless of the usage scenario, this broadband amplifier can achieve relatively good results.

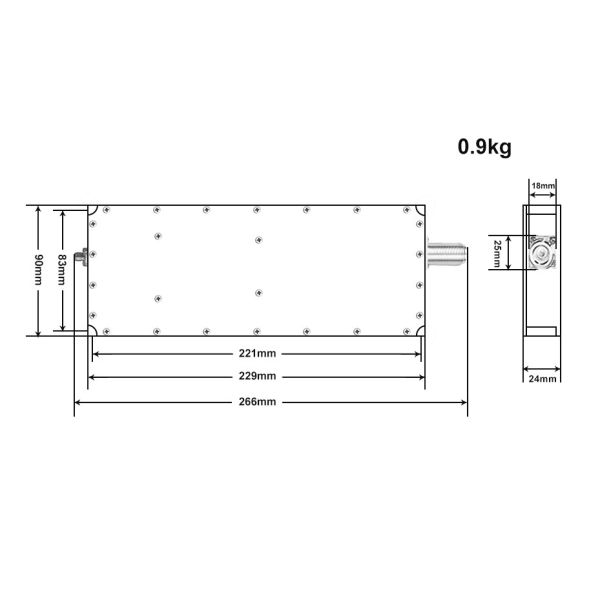

Product specification

Product Feature

1. Able to meet 100 watts of full wattage

2. Double connector, both output and input are made of high-grade metal materials

3. Supports use with own external signal source

4. The module supports28V-32V operating voltage

5. 1200-1500MHz supper frequency band

6.Input gain 0-10 dB

7.Aluminum alloy material is waterproof, highly conductive and heat-dissipating

Attention

1. Power supply better carry about 28V 4.5A when itself 3A for its stable work
2. Heat dissipation measure is necessary including the thermal glue, suitable-size heat sink and cooling fans
3. Antenna or Load must be firstly connected before the power supply is ON or it will be short wire

Application
