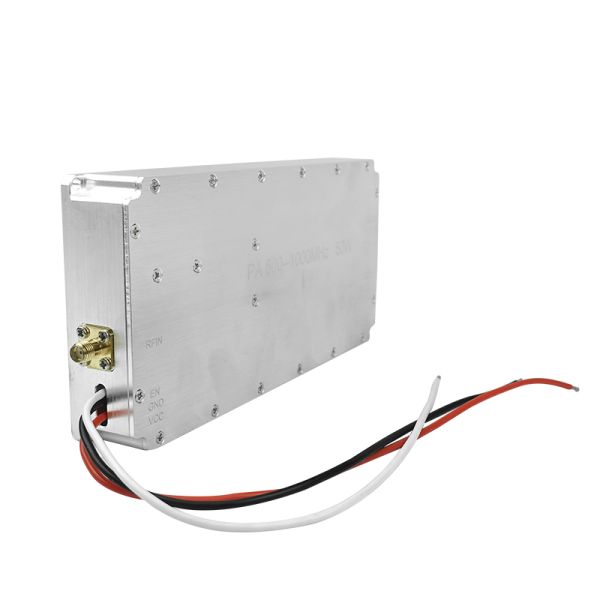

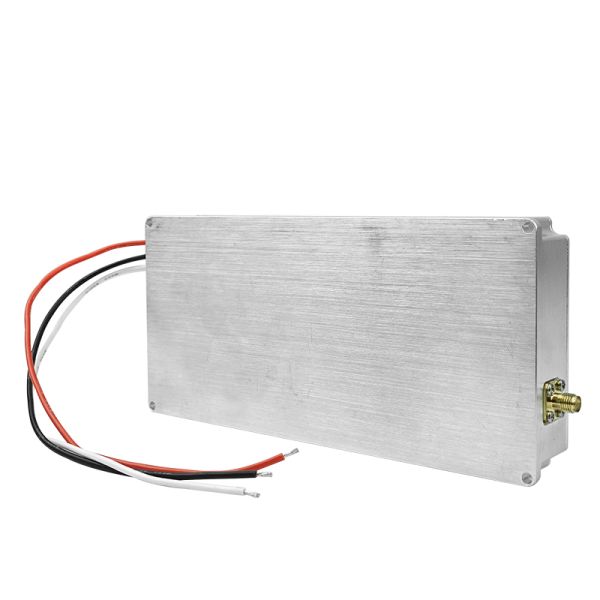

Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
Specifications
Brand Name :
TX TELSIG
Model Number :
TXC100PA
Certification :
SGS,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Product name :
Wide band power amplifer
Frequency :
100-1000mhz
Power :
100W
Input :
5dbm
gain :
53dbi
Outshell :
aluminum
Description

Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module

This is a ultrawide band high power 100W 500-1000MHz RF wireless power amplifier no-signal-source with high average 100W output power, the 100W 500-1000MHz good in-band flatness and the small offset between upper and lower side band. The covarage wider than regular power amplifier ,if you need different wattage and frequency we can offer multiple option .

We are professional signal jammer manufacturer , support frequency band customization according to the different frequencies from different countries .

Specifications :

No.ItemDataUnit
1Frequency500-1000MHz
2Test voltage28V
3Current10-13A
4Output50W
5Gain47dB
6Output stability1dB
7ConnectorSMA
8Output connector VSWR≤1.30 (No power and VNA test)
9Power supply wireRed+Black+Enable wire
10Enable ControlHigh ON Low Off
11Out shell Size194*84*26mm
12Mount hole176*84mm
13Weight779g
14Work Temperature-40~+65℃
15Out shell materialAluminum
16Standard input5

Features

*wide band 500-1000mhz effectively shield drone signals

*Durable shell, waterproof, shockproof, dustproof and high temperature resistance

*input 5dbm with 28V voltage to operate

Applications

* Offices, board meetings, conference rooms, seminars, libraries, cinemas, classroom , workplace .

* places of worship, public transport, concert halls, restaurants, educational institutions, prisons

* Various conference rooms of administrative institutions; warehouses, workshops, production lines of factories and mines

* Troops and important secret places, theaters, concert halls, memorials, auditoriums

Pictures:

Customized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer moduleCustomized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer moduleCustomized ultra wide band high power 100W 500-1000mhz RF wireless power amplifer module
