4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module
Specifications
Brand Name :
TX TELSIG
Certification :
SGS, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, Paypal,etc.
Delivery Time :
5-8
Packaging Details :
durable case or box
Name :
4900-6000MHz wide band power amplifie module
Power :
30W
Type :
Bidirectional power amplifer
Application :
Signal booster
Connector :
SMA / Female
Feature :
4900-6000MHz
Size :
160*165*81mm
Antenna weight(kg) :
5550g
Voltage :
28-32V
Description

4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module

This is bidirectional 30W 4900-6000mhz PA wide band power amplifier module ,the module has wide bandwidth, good flatness, sufficient wattage features.It usually use in communication field ,radar and drone FPV defense . The frequency band is not fixed, and customization is supported.

Features:

  • 28-32V voltage operate
  • With heat dissipation material
  • 4900-6000MHz wide band frequency
No. Item Data Unit
1 Frequency 4900-6000 MHz
2 Test voltage 28-32 V
3 Current 3.5 A
4 Output 30 W
5 Gain 43 dB
6 Output stability 1 dB
7 Input stability 0-10 dB
8 Connector SMA/ Female
9 Output connector VSWR ≤1.30 (No power and VNA test)
10 Power supply wire Red+Black+Enable wire
11 Enable Control High ON Low Off

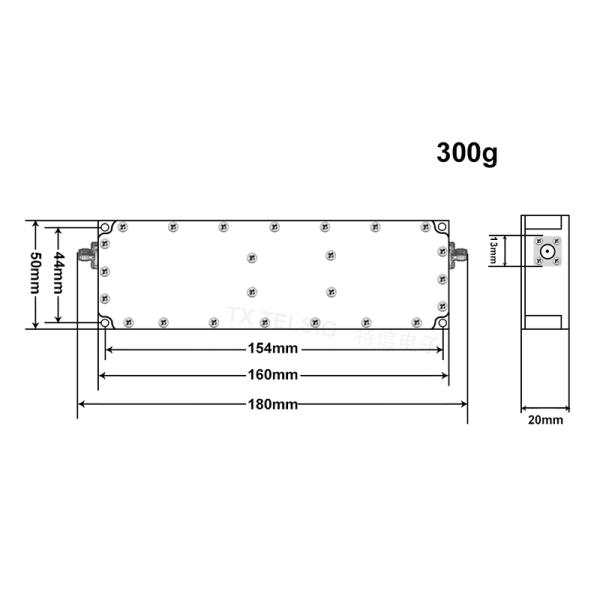

12 Out shell Size 160*50*20 mm
13 Mount hole 154*44 mm
14 Weight 300 g
15 Work Temperature -40~+65 ℃
16 Out shell material Aluminum
17 Vibration need Car load OK

Working and storage environment requirements

  1. Need working -40℃+80℃ environment
  2. operate voltage within in 28-32V
  3. Use it before need connect antenna first
  4. Long range distance working 1.5-2km but no have any obstruction
  5. When working at high power, a heat sink needs to be installed

4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module

4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module

4900-6000MHz 10W 30W 50W 100W wide band power amplifier RF module

Application

Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and , Customs, mosques, etc.

FAQ

1.Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welecom to visit us here
2.MOQ?
1 to 100pcs
3.Payment term?
T/T, (Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4.How to proceed an order ?
A.Let us know your requirement and product application B.We quote according to your specific need C.Customers agree with the quotation and make the payment
5.How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
