High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module
High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module
High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module
High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module
High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module
High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module
High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module
High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module
Specifications
Model Number :
TXH100
Frequency Range :
4400-5200MHz
MOQ :
1
Delivery Time :
In 2 work day
Power :
100W
Nominal Impedance :
50Ω
Payment Terms :
T/T,Paypal,Etc.
Voltage :
28V
Certification :
SGS,ISO9001
Weight :
1367g
Brand Name :
TX TELSIG
Type :
4GHz
Price :
Negotiation
Current :
17A
Supply Ability :
100,000pcs/month
Max power :
100 W
Place of Origin :
China
Bandwidth :
800MHz
Packaging Details :
Durable case or box
Applicaition :
Wireless signal， Security
Description
High Power 100W 4GHz Wide Band Signal Jammer Module
This 100W high-power 4GHz wideband signal jamming module is a professional industrial-grade RF power amplification and jamming solution, specially designed for 4400MHz to 5200MHz ultra-wide frequency coverage. The unit delivers ultra-high saturated power output while maintaining excellent linearity control, ensuring both long-distance suppression capability and clean spectrum performance.
This module employs optimized RF circuit matching and a high-power heat dissipation structure, supporting continuous long-term operation. It is widely used in fields such as anti-drone defense, confidential signal shielding, wireless signal suppression, and customized RF countermeasures system integration.
Technical Specifications
  • 100W Ultra-High Power Output
  • 4400-5200MHz Full Wideband Coverage
  • Industrial-Grade Wideband Stability
  • High-Efficiency Heat Dissipation Design
  • Fully Customizable Parameters
Parameter Test Condition Minimum Value Representative Value Maximum Value Unit
Working Frequency Range 4400 5200 MHz
Saturation Output Power 40 45 W
Full-power Supply Current 17 19 A
Enable Level Logic High = On, Low = Off
Enable Control Voltage 28 V
Output Impedance 53 ohm
Parameter Minimum Value Representative Value Maximum Value Unit
Module Operating Temperature -40 +85 ℃
Storage Temperature -40 +105 ℃
DC Power Supply Voltage 28 V
Main Applications
  • 4GHz band drone data link jamming & counter-UAV systems
  • Industrial site confidential wireless signal shielding
  • Private network communication signal suppression
  • High-power RF test and experimental equipment

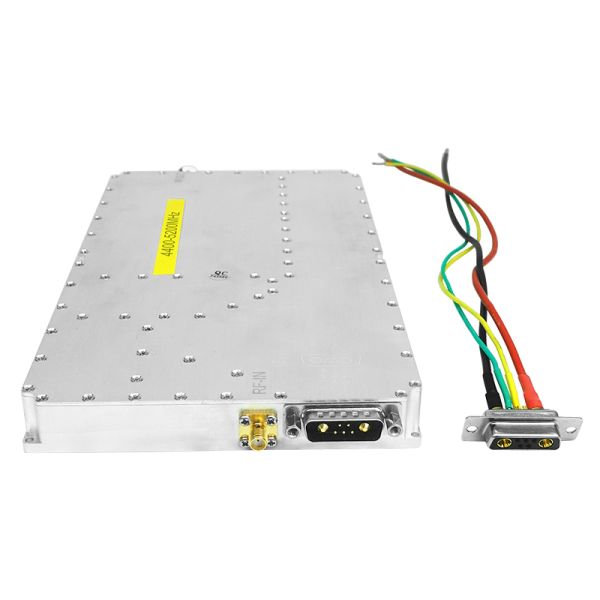

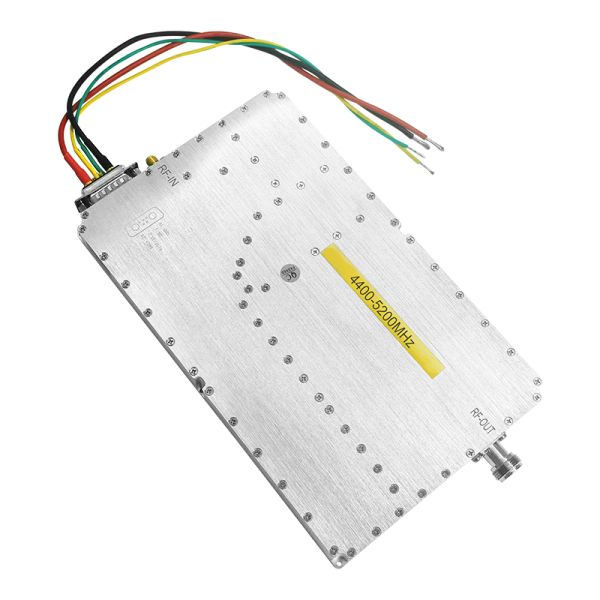

Product Images
High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module High power 100W frequency 4GHz 4400-5200MHz wide band signal jammer module
Frequently Asked Questions
How about delivery time?
Regular delivery time is 4-5 work days.
Are you manufacturer?
Yes, we have our own factory and can provide customized services.
How to ship?
If you have logistic forwarder, we can ship it directly to your forwarder. Alternatively, we can ship via logistics companies such as WPS, DHL, and UPS.
