Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
Specifications
Model Number :
TXH050
Frequency Range :
Customized
MOQ :
1
Delivery Time :
In 2 work day
Power :
50W
Nominal Impedance :
50Ω
Payment Terms :
T/T,Paypal,Etc.
Voltage :
32V
Certification :
SGS,ISO9001

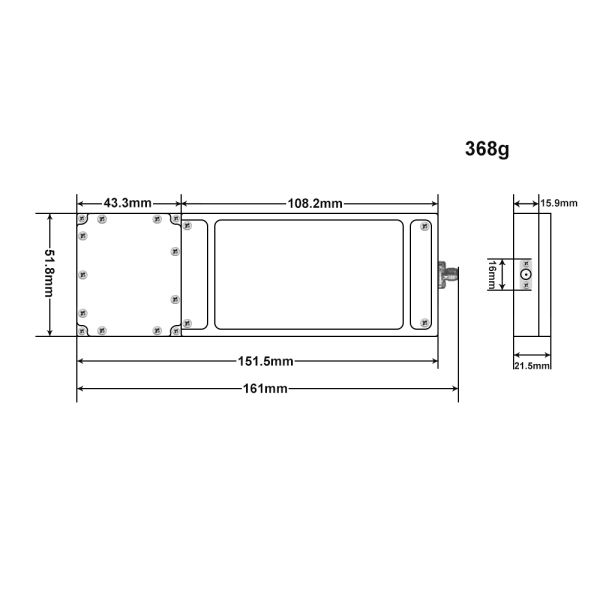

Weight :
368g
Brand Name :
TX TELSIG
Type :
Poratable module
Price :
Negotiation
Current :
4A
Supply Ability :
100,000pcs/month
Max power :
50 W
Place of Origin :
China
Bandwidth :
200MHz
Packaging Details :
Durable case or box
Applicaition :
Wireless signal， Security
Description
Pocket-sized VCO Split-Type Interference Module
Ultra-compact split-type VCO interference module covering 2.4GHz and 5.8GHz WiFi bands. Built with independent VCO isolation design for stable output, low self-interference, and customizable linear/saturated power parameters.
Product Overview
This advanced interference module features a split-type independent VCO oscillator design that ensures stable output with minimal self-interference. Unlike standard fixed modules, this model offers complete customization including output power, frequency range, working mode, interface definition, and heat dissipation configuration. It serves as a high-cost-effective core solution for portable signal shielding devices, anti-drone systems, privacy protection equipment, and RF experimental development.
Technical Specifications
Key Features
  • Working Frequency: Customizable (800MHz, 900MHz, etc.)
  • Core Structure: Split-type independent VCO oscillator
  • Working State: Linear region stable output / Saturation peak output
  • Output: Stable operation at 50W (47dBm)
  • Output Mode: Fixed frequency
  • Features: Low noise, high isolation, no frequency drift
  • Size: Pocket mini compact design
  • Custom Service: Power, frequency, interface, program, shell customizable
Performance Parameters
Parameter Test Condition Minimum Value Representative Value Maximum Value Unit
Working Frequency Range 830 930 MHz
Saturation Output Power 40 45 W
Full-power Supply Current 3.8 4.0 A
Enable Level Logic High = On, Low = Off
Enable Control Voltage 28 V
Output Impedance 50 Ohm
Environmental Specifications
Parameter Minimum Value Representative Value Maximum Value Unit
Module Operating Temperature -40 +85 ℃
Storage Temperature -40 +105 ℃
DC Power Supply Voltage 32 V
Main Applications
  • Portable WiFi signal shielding equipment
  • Anti-drone interference suppression systems
  • Privacy & confidential environment signal isolation
  • RF circuit development and experimental testing
  • Custom wireless countermeasure equipment integration

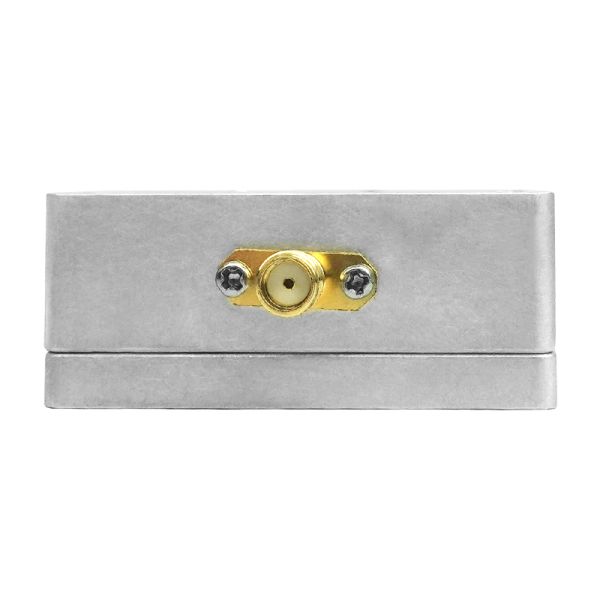

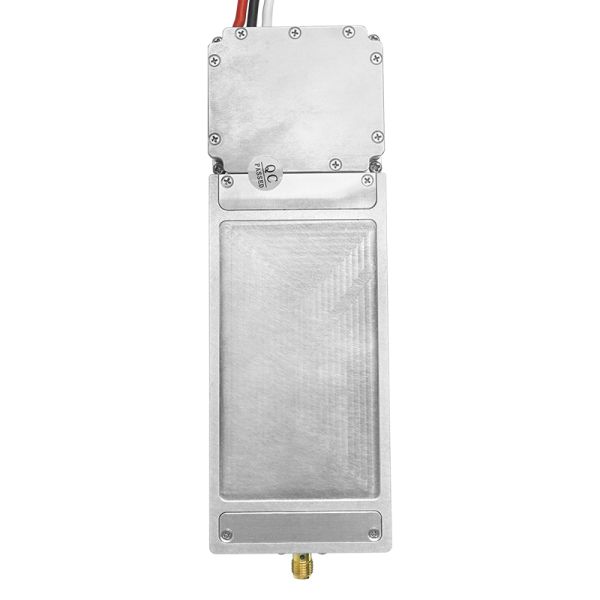

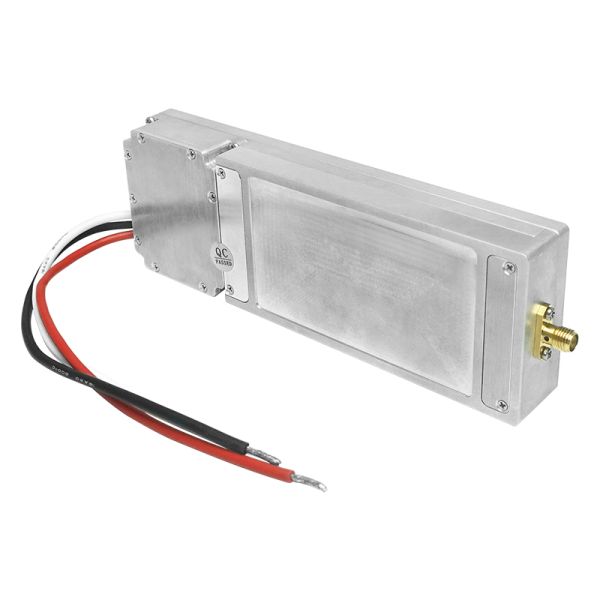

Product Images
Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable. Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable. Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.
