Specifications
Brand Name :
TX TELSIG
Model Number :
TX-TZ50W
Certification :
SGS, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, Paypal,etc.
Supply Ability :
100000pcs/month
Delivery Time :
2 Days
Packaging Details :
PP plastic bag
Frequency :
100-2900MHz(Bandwidth customized)
Max Output Power :
50w
Work Voltage :
24-28V
Max Gain :
46dB
Max Current :
4.5A
Output connector :
SMA-female
Switch Control :
24-28v
Size :
139*55*20mm
Weight :
0.261kg
Work Temperature :
-20~+70℃
Power Amplifier Efficiency :
45(when Max Output)
Description

50W Jammer Module for Anti-Drone Systems

Model:TX-TZ50W

It is a wireless information security module dedicated to 300-2900MHz signals, or customize support.

This module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower side bands.

Regular type with signal source,if you want without signal source type also can offer(input signal 0-10dBm)

50W UAV Signal Jammer Module High-Power Amplifier with Circulator Protection for Anti-Drone Systems

50W RF Power Amplifier Specification
No. Item Data Unit Notes
1 Frequency 100-2900 MHZ
2 Work Temperature -20~+70 ℃
3 Max Output Power 50 W
4 Work Voltage 24-28 V 24-28V all okay
5 Max Gain 46 dB
6 Max Current 4.5 A
7 iutput connector SMA-female If need
8 Output Connector N/F 50Ω Customized
9 Power Amplifier Efficiency 45 when Max Output
10 Switch Control 24-28 V Same as the voltage
11 Standing Wave Protection OK
12 Temperature Protection 75° ℃

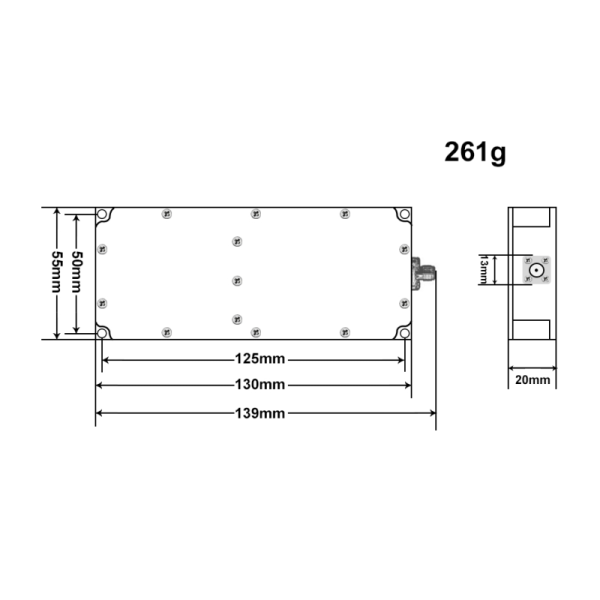

13 Size 139*55*20 mm
14 Weight 0.261 Kg

50W UAV Signal Jammer Module High-Power Amplifier with Circulator Protection for Anti-Drone Systems

Application field:

wifi jammer, drone jammer, etc.

Precautions for use

1.Before the module is used, the customer must first configure the corresponding heat dissipation measures, antenna connection and power connection

2.-- About cooling measures

* Due to the high output power, the module will heat up when it is used

* Please be sure to add heat sink and cooling fan to the module to keep the module low temperature and high efficiency

* If there is no corresponding heat dissipation measures, the module will be short-circuited or directly damaged

3.-- About the antenna connection

When connecting, you must screw on the antenna first, then connect the front-end source equipment, and finally supply power

4.-- power connection

Power supply support voltage DC24-28V

When the power supply is 28V, the use effect of the module is better
