100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module
100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module
100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module
100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module
100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module
100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module
100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module
100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module
Specifications
Brand Name :
TX TELSIG
Model Number :
TX-PD1005800
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Type :
drone signal shield module
Power :
100W
Frequency :
5800mhz
Out shell material :
Aluminum
Out shell Size :
178*74*25
Weight :
4.5kg
Size :
321*185*80 mm
Description

100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module

TXPD1005800 is special designed for defense the high image transmit FPV drone.It can stable output 100W at 28V .

He can effectively cut off the 5.8GHz image transmission channel for drones, forcing them to make an emergency landing or return to base.This module is of the high average output power, good in-band flatness and the small offset between upper and lower side band. The frequency band and output power of the module can be customized according to customer needs.

TXtelsig is a professional developer and producer of Signal Jamming and Coverage product.

Feature

1. Easy to install and operate with few minutes

2. Can jamming the drone within in 3-5 seconds

3. High power 100W output

4. Each band can be opened separately or simultaneously to block specific signals with effective high power

5. Durable aluminum alloy shell also with inner cooling system to keep the device working

6. Can endure pretty high or low temperature to cater to different environment need

Attention

• Power supply better carry about 28V 15.3A when itself 10.2A for its stable work

• Heat dissipation measure is necessary including the thermal glue, suitable-size

heat sink and cooling fans

• Antenna or Load must be firstly connected before the power supply is ON or it will be short wire

Specification

No. Item Data Unit
1 Frequency Customized MHz
2 Test voltage 28 V
3 Current 10.2 A
4 Output 100 W
5 Gain 50 dB
6 Output stability 1 dB

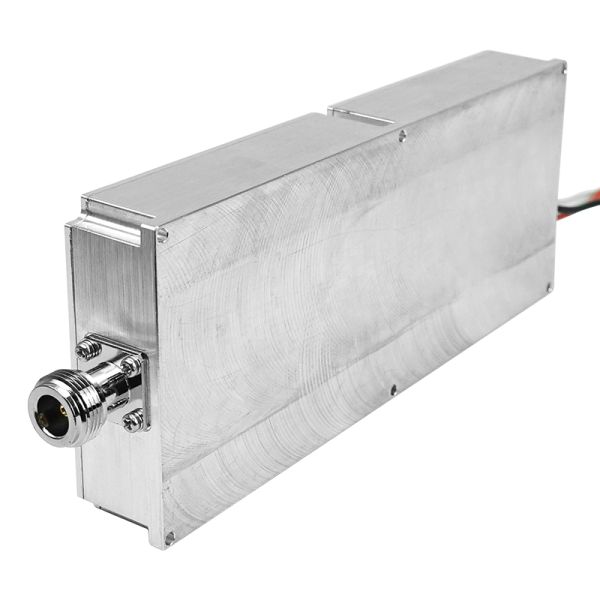

7 Connector N / Female
8 Output connector VSWR ≤1.30 (No power and VNA test)

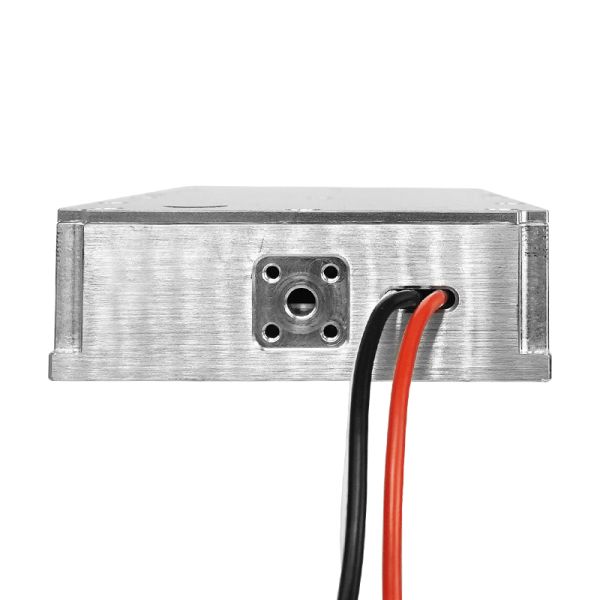

9 Power supply wire Red+Black+Enable wire
10 Enable Control High ON Low Off

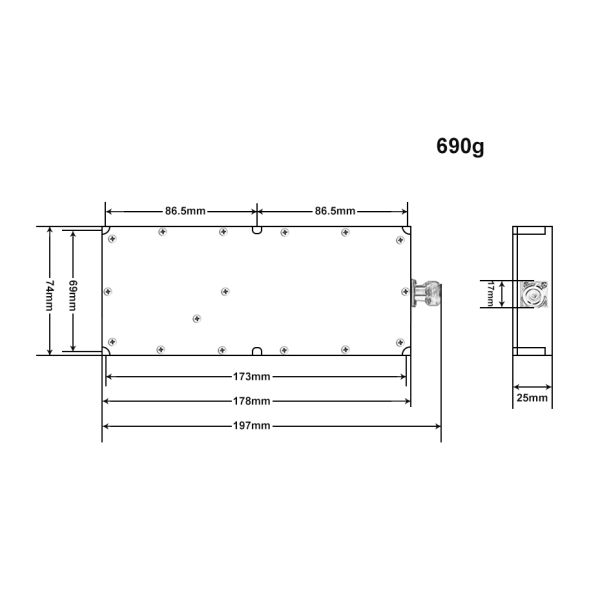

11 Out shell Size 178*74*25 mm
12 Mount hole 173*69 mm
13 Weight 690 g
14 Work Temperature -40~+65 ℃
15 Out shell material Aluminum
16 Vibration need Car load OK


100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module
