Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Specifications
Brand :
Texin
Voltage :
28-32V
Input :
0-5dbm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Connector :
N-connector （customized）
Currrent :
9.5A
Weight :
733g
Material :
Aluminium
Application :
Drone defense
Brand Name :
TeXin
Model Number :
TX-100W
Certification :
CE ISO
Place of Origin :
Shenzhen China
MOQ :
2
Price :
Negotiable
Supply Ability :
1000/month
Delivery Time :
5-8 days
Packaging Details :
durable case
Size :
177*84*26mm
Output Power :
100W
Features :
1000-2000mhz(customized)
Description
Wide Bandwidth 50W 100W 1000-2000mhz Bidirectional PA RF Power Module Anti FPV UAV

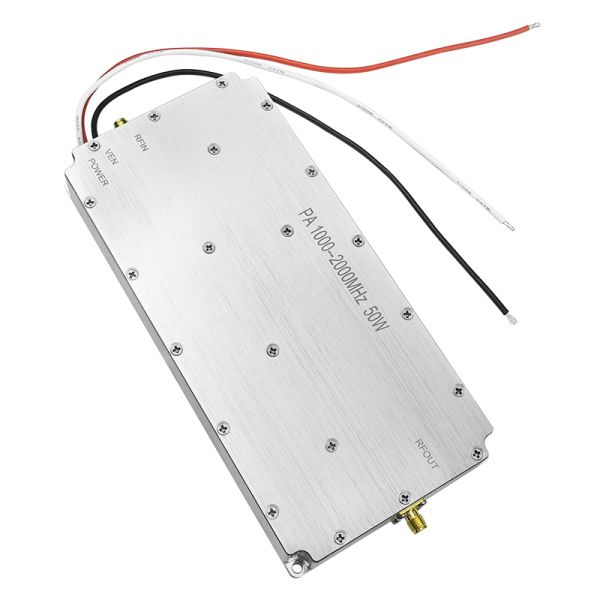

This 1000-2000 PA RF power amplifier module can jam frequency band FPV 1000-2000MHz in one module. This module does not include a built-in signal generator. Customers must purchase one for assembly. This module is manufactured and developed by Texin, and both frequency band and power are customizable. We welcome inquiries and purchases from customers worldwide. Texin guarantees high-quality products and excellent service.
Key Features
  • 1000-2000mhz ultra band in one power amplifier
  • 28/-32V voltage for use
  • UAV FPV drone of 95% can be jammed
  • Stable input 0-10dbm (customized)
  • The output can be choose S connector or N connector
Technical Specifications
No. Item Data Unit
1 Frequency 1000-2000 MHz
2 Test voltage 28-32 V
3 Current 9.5 A
4 Output 100 W
5 Gain 50 dB
6 Output stability 1 dB
7 Connector SMA / Female
8 Output connector VSWR ≤1.30 (No power and VNA test)
9 Standard input 0-10 dB
10 Power supply wire Red+Black+Enable wire
11 Enable Control High ON Low Off

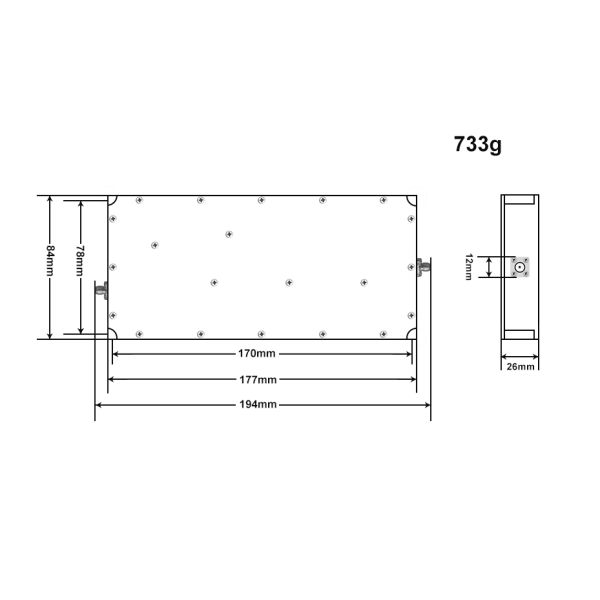

12 Out shell Size 177*84*26 mm
13 Mount hole 170*78 mm
14 Weight 733 g
15 Work Temperature -40~+65 ℃
16 Out shell material Aluminum
17 Vibration need Car load OK
Working and Storage Environment Requirements
  • Need working -40℃ to +65℃ environment
  • Operate voltage within 24-28V (option)
  • Use it before need connect antenna first
  • Long range distance working 1.5-2km but no have any obstruction
  • When working at high power, a heat sink needs to be installed
Product Images
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Texin Factory Introduction
With the expansion of business, Texin has now opened more than 10 production lines, which can support large-volume orders. We have advanced debugging equipment and a professional technical team. Our drone countermeasure equipment is sold all over the world. Excellent products and high-quality services have won unlimited praise from customers. If you have any ideas, please feel free to consult. Shenzhen Texin Electronics Co., Ltd. looks forward to cooperating with you!
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Usage Scenarios
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Exhibition
Wide Bandwidth 50W 100W 1000-2000mhz bidirectional PA RF power module anti fpv UAV
Applications
Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and
Enforcement, Customs, mosques, etc.
Frequently Asked Questions
1. Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welcome to visit us here
2. MOQ?
1 to 100pcs
3. Payment term?
T/T,Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4. How to proceed an order?
A. Let us know your requirement and product application through inquiry on website B. We quote according to your specific need C. Customers agree with the quotation and make the payment
5. How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
