300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution
300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution
300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution
300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution
300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution
300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution
Specifications
Brand Name :
TeXin
Model Number :
TX-N10
Certification :
ISO9001,SGS
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
10000pcs per month
Delivery Time :
1-3 days
Packaging Details :
K=K 5 layer paper carton
Frequency :
206*117*21mm
Power :
50W 100W
Product name :
Broad band power amplifier
Type :
RF wireless signal amplifier
Weight :
1366g
Connector :
F/ Female
Material :
GaN
Description

300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution

The300-2700mhz power amplifier -A is a highly reliable amplifier. It uses ultra -wideband GaNtransistors and canoutput 100 watts of power in the frequency range of 300MHz to 2700 MHz while maintaining relevantRF performance. Different from traditional continuous -wave CW amplifiers, this amplifier can amplifyspread -spectrum signals with an instantaneous bandwidth of up to 200 MHz.
itcanproduceexcellentinterferenceeffectsonremotecontrol,datatransmission,andpositioningsignals.Therefore,this amplifier is particularly suitable for use in wireless communication interference systems in theU,L,and S bands,including but not limited to mobile phones,radiio stations,and drones.

  1. Product Introduction
Utilizingthird-generationGaNtransistors
Ultra-wideworkingbandwidthandinstantbandwidth
Excellentreliability
Featurestemperaturedetection,standing-wave
detection,and protection functions

No. Item Data Unit
1 Frequency 300-2000 MHz
2 Test voltage 28-32 V
3 Current 6.5 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Input stability 0-10 dB
8 Connector F/ Female
9 Output connector VSWR ≤1.30 (No power and VNA test)
10 Power supply wire Red+Black+Enable wire
11 Enable Control High ON Low Off
12 Out shell Size 206*117*21 mm
13 Mount hole 199*110 mm
14 Weight 1366 g
15 Work Temperature -40~+65 ℃
16 Out shell material Aluminum
17 Vibration need Car load OK

  1. Application

* It can be used in places where the use of drone is prohibited, such as concert,center city prisons, churches, etc.;

* Can be used at home to prevent children from being addicted to the Internet;

* Can help police prevent criminal information from being passed between criminals at crime scenes;

* Can be used for jamming the communication signal like 2ghz 3ghz 5ghz

  1. More Photo

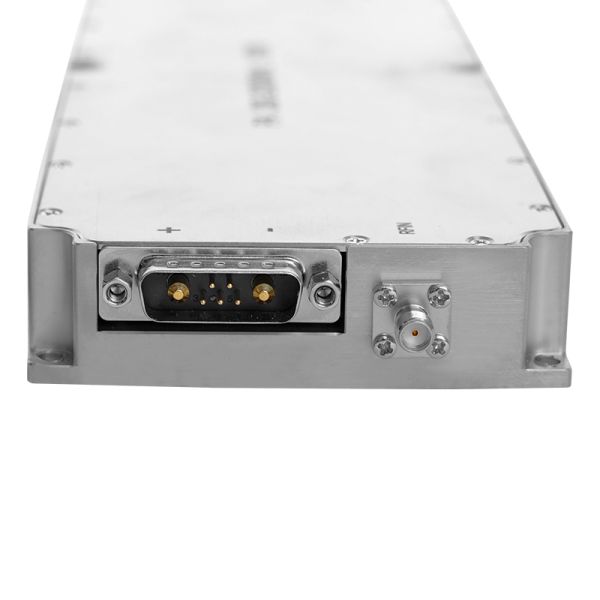

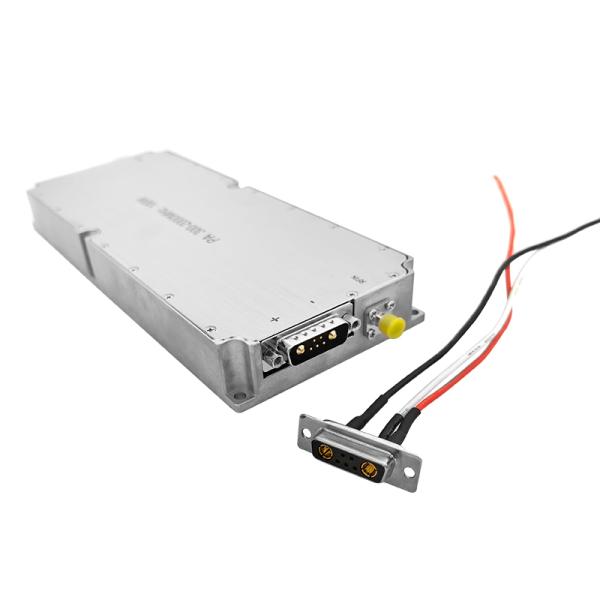

300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution300MHz-2700MHz RF BroadbandHigh PowerAmplifier GaN solution
