Specifications
Brand Name :
TX TELSIG
Model Number :
TXC30W
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Brand :
Texin
Frequency Band :
100-1000mhz
Power :
30W
Voltage :
28-32v
Marterial :
Alluminum Alloy outside
Size :
179*50*20mm
Weight :
0.294kg
Description

Texin 30W broadband 100-1000mhz VSWR protect RF power amplifier module jamming drone

TXC30W is special pa bisirectional power amplifiermodule , it has wide bands and dual connectors one is input signal and another is booster signal , the output 30W in total when 28V voltage and it can effectively get rid of the drone signal threat in seconds by jamming. The Jamming range is different from the real environment .and if you need multiple band like 500-1000mhz ,500-2000mhz ,wifi 2.4ghz 5.8ghz that is available , to meet your needs as much as possible.
And the30W broadband pa power amplifier module Special measures have been taken to enable the module to perform standing wave protection simultaneously during operation.Almost signals of 2G/3G/4G/Wifi/GPS,5.8GHz you can option freely. Need more? Contact us for customizing.

TXtelsig is the leading manufacturer to design and produce signal jamming and wireless coverage product with professional and experienced research and development teams. We have the strength to provide you with the most cost-effective products and plan.

Product Feature

1. 400-5800MHz Wide Frequency Range

2. 30W High Power Output

3. With Temperature Protection

4. High Gain and Low Noise

5. Compact and Durable Design

Application:
1. Conference room, Confidential office, negotiation room
2. Mobile vehicles, on-site protection of important figures in the political and business circles
3. Party and government organs, temporary meeting rooms for all kinds of small meetings of enterprises
4. Personal or commercial special needs


No.ItemDataUnitNotes
1Frequency400-5800MHZ
2Work Temperature-20~+70℃
3Max Output Power50W
4Work VoltageDC28V
5Max Gain47dB
6Flatness±1dB　
7Max Current4A
8Output VSWR≤1.5
9Output ConnectorSMA/F 50Ω Customized
10Power Amplifier Efficiency45 when Max Output
11Switch Control

high low

level current

V0V off /0.6 on
12Standing Wave ProtectionOK
13Temperature Protection75°℃

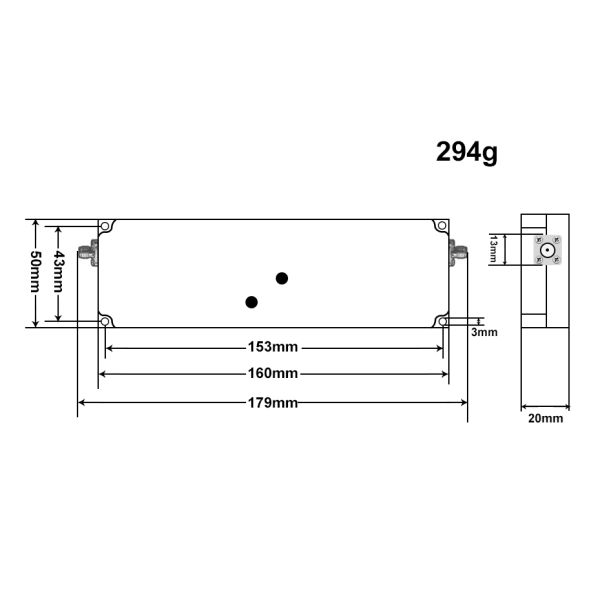

14Size179*50*20mm
15Weight0.294Kg




Details
Texin 30W broadband 100-1000mhz VSWR protect RF power amplifier module jamming droneTexin 30W broadband 100-1000mhz VSWR protect RF power amplifier module jamming droneTexin 30W broadband 100-1000mhz VSWR protect RF power amplifier module jamming drone
