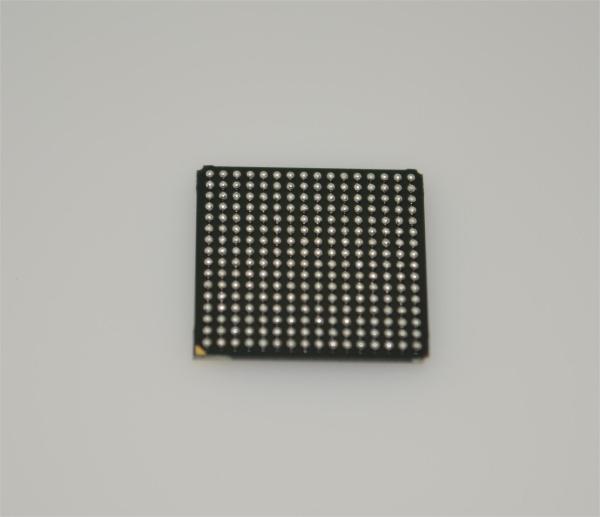

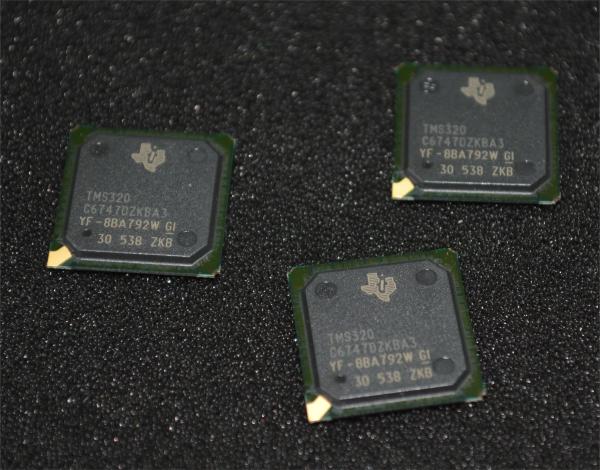

TMS320C6747DZKBA3 456MHz Dual-Core DSP 3648MBPS 32KB L1 Cache 256KB RAM BGA-256 -40anddeg;C to +100anddeg;C Industrial DSP

andnbsp;

Features andnbsp;

andbull; Software Support

andndash; TI DSP/BIOSandtrade;

andndash; Chip Support Library and DSP Library

andbull; 375- and 456-MHz TMS320C674x VLIW DSP

andbull; C674x Instruction Set Features

andndash; Superset of the C67x+ and C64x+ ISAs

andndash; Upto 3648 MIPS and 2736 MFLOPS C674x

andndash; Byte-Addressable (8-, 16-, 32-, and 64-Bit Data)

andndash; 8-Bit Overflow Protection

andndash; Bit-Field Extract, Set, Clear

andndash; Normalization, Saturation, Bit-Counting

andndash; Compact 16-Bit Instructions

andbull; C674x Two-Level Cache Memory Architecture

andndash; 32KB of L1P Program RAM/Cache

andndash; 32KB of L1D Data RAM/Cache

andndash; 256KB of L2 Unified Mapped RAM/Cache

andndash; Flexible RAM/Cache Partition (L1 and L2)

andbull; Enhanced Direct Memory Access Controller 3 (EDMA3):

andndash; 2Transfer Controllers

andndash; 32Independent DMA Channels

andndash; 8Quick DMA Channels

andndash; Programmable Transfer Burst Size

andbull; TMS320C674x Fixed- and Floating-Point VLIW DSP Core

andndash; Load-Store Architecture with Nonaligned Support

andndash; 64General-Purpose Registers (32-Bit)

andndash; Six ALU (32- and 40-Bit) Functional Units

andndash; Supports 32-Bit Integer, SP (IEEE Single Precision/32-Bit) and DP (IEEE Double Precision/64-Bit) Floating Point

andndash; Supports up to Four SP Additions Per Clock, Four DP Additions Every 2 Clocks

andndash; Supports up to Two Floating-Point (SP or DP) Reciprocal Approximation (RCPxP) and Square-Root Reciprocal Approximation (RSQRxP) Operations Per Cycle

andndash; TwoMultiply Functional Units

andndash; Mixed-Precision IEEE Floating Point Multiply Supported up to:

andndash; 2SPxSP-andgt;SPPerClock

andndash; 2SPxSP-andgt;DPEvery Two Clocks

andndash; 2SPxDP-andgt;DPEvery Three Clocks

andndash; 2DPxDP-andgt;DPEvery Four Clocks

andndash; Fixed-Point Multiply Supports Two 32 x 32-Bit 1 Multiplies, Four 16 x 16-Bit Multiplies, or Eight 8 x 8-Bit Multiplies per Clock Cycle, and Complex Multiples

andndash; Instruction Packing Reduces Code Size

andndash; All Instructions Conditional

andndash; Hardware Support for Modulo Loop Operation

andndash; Protected Mode Operation

andndash; Exceptions Support for Error Detection and Program Redirection

andbull; 128KB of RAM Shared Memory (TMS320C6747 Only)

andbull; 3.3-V LVCMOS I/Os (Except for USB Interfaces)

andbull; TwoExternal Memory Interfaces:

andndash; EMIFA

andndash; NOR(8- or 16-Bit-Wide Data)

andndash; NAND(8- or 16-Bit-Wide Data)

andndash; 16-Bit SDRAM with 128-MB Address Space (TMS320C6747 Only)

andndash; EMIFB

andndash; 32-Bit or 16-Bit SDRAM with 256-MB Address Space (TMS320C6747)

andndash; 16-Bit SDRAM with 128-MB Address Space (TMS320C6745)

andbull; Three Configurable 16550-Type UART Modules:

andndash; UART0 with Modem Control Signals

andndash; Autoflow Control Signals (CTS, RTS) on UART0 Only

andndash; 16-Byte FIFO

andndash; 16x or 13x Oversampling Option

andbull; LCDController (TMS320C6747 Only)

andbull; TwoSerial Peripheral Interfaces (SPIs) Each with One Chip Select

andbull; Multimedia Card (MMC)/Secure Digital (SD) Card Interface with Secure Data I/O (SDIO)

andbull; TwoMaster and Slave Inter-Integrated Circuit (I2C Busandtrade;)

andbull; OneHost-Port Interface (HPI) with 16-Bit-Wide Muxed Address/Data Bus for High Bandwidth (TMS320C6747 Only)

andbull; Programmable Real-Time Unit Subsystem (PRUSS)

andndash; TwoIndependent Programmable Realtime Unit (PRU) Cores

andndash; 32-Bit Load and Store RISC Architecture

andndash; 4KBof Instruction RAM per Core

andndash; 512 Bytes of Data RAM per Core

andnbsp;

Applications

andbull; A/VReceivers

andbull; Automotive Amplifiers

andbull; Soundbars

andbull; HomeTheatre Systems

andbull; Professional Audio

andbull; Network Streaming Audio

andnbsp;

Description

The TMS320C6745/6747 device is a low-power digital signal processor based on a TMS320C674x DSP core. It consumes significantly lower power than other members of the TMS320C6000andtrade; platform of DSPs.

The TMS320C6745/6747 device enables original-equipment manufacturers (OEMs) and original-design manufacturers (ODMs) to quickly bring to market devices featuring high processing performance .

The TMS320C6745/6747 DSP core uses a two-level cache-based architecture. The Level 1 program cache (L1P) is a 32-KB direct mapped cache and the Level 1 data cache (L1D) is a 32-KB 2-way set associative cache. The Level 2 program cache (L2P) consists of a 256-KB memory space that is shared between program and data space. L2 memory can be configured as mapped memory, cache, or combinations of the two. Although the DSP L2 is accessible by other hosts in the system, an additional 128KB of RAM shared memory (TMS320C6747 only) is available for use by other hosts without affecting DSP performance.
