LM3409HVMY

andnbsp;

Features andnbsp;

andbull; LM3409-Q1 and LM3409HV-Q1 are Automotive Grade Products: AEC-Q100 Grade 1 Qualified

andbull; 2-Ω, 1-A Peak MOSFET Gate Drive

andbull; VIN Range: 6 V to 42 V (LM3409, LM3409-Q1)

andbull; VIN Range: 6 V to 75 V (LM3409HV, LM3409HV Q1)

andbull; Differential, High-Side Current Sense

andbull; Cycle-by-Cycle Current Limit

andbull; NoControl Loop Compensation Required

andbull; 10,000:1 PWM Dimming Range

andbull; 250:1 Analog Dimming Range

andbull; Supports All-Ceramic Output Capacitors and Capacitor-less Outputs

andbull; Low-Power Shutdown and Thermal Shutdown

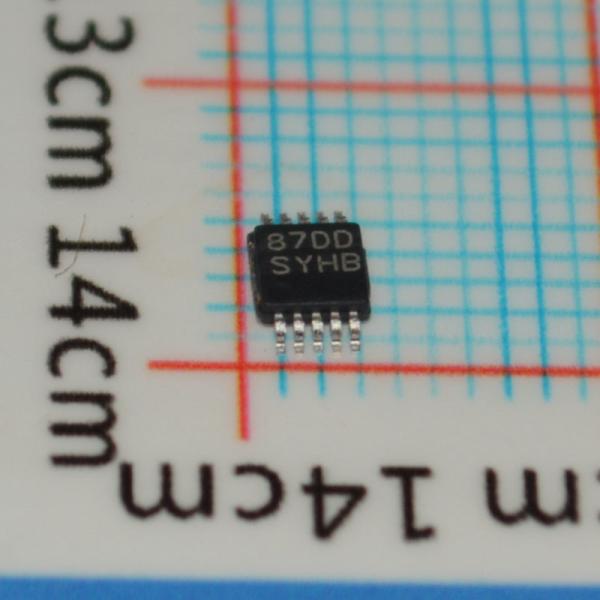

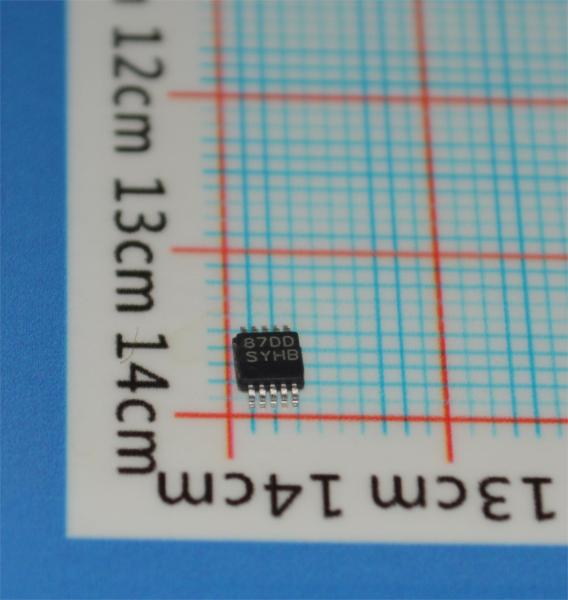

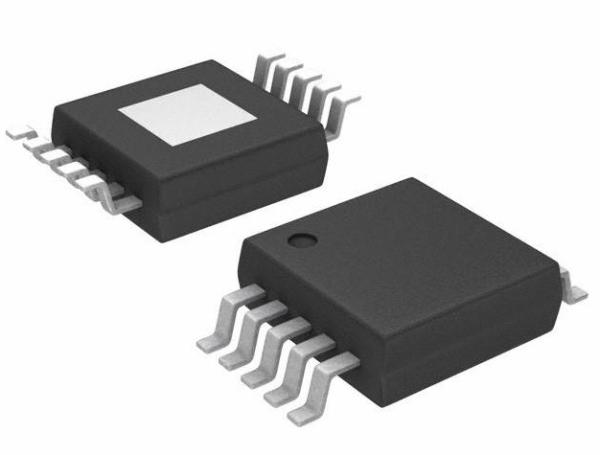

andbull; Thermally Enhanced 10-Pin, HVSSOP Package

andnbsp;

Applications

andbull; LEDDriver

andbull; Constant Current Source

andbull; Automotive Lighting

andbull; General Illumination

andnbsp;

Description

The LM3409, LM3409-Q1, LM3409HV, and LM3409HV-Q1 are P-channel MOSFET (PFET) controllers for step-down (buck) current regulators. They offer wide input voltage range, high-side differential current sense with low adjustable threshold voltage and fast output enable/disable function and a thermally enhanced 10-pin, HVSSOP package. These features combine to make the LM3409 family of devices ideal for use as constant current sources for driving LEDs where forward currents up to 5 A are easily achievable.

The LM3409 devices use constant off-time (COFT) control to regulate an accurate constant current without the need for external control loop compensation. Analog and PWM dimming are easy to implement and result in a highly linear dimming range with excellent achievable contrast ratios. Programmable UVLO, low-power shutdown, and thermal shutdown complete the feature set.

andnbsp;

Information

andnbsp;

Drawing
