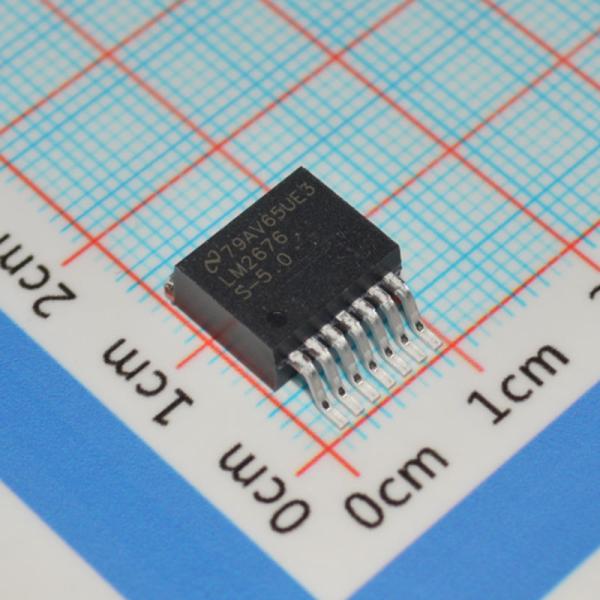

LM2676SX-5.0

andnbsp;

Features

andbull; New product available:andndash; LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1 MHz synchronous converter

andbull; For faster time to market:andndash; TLVM13630 3 to 36-V, 3-A, 200-kHz to 2.2-MHz power module

andbull; Efficiency up to 94%

andbull; Simple and easy to design with (using off-the-shelf external components)

andbull; 150-mandOmega; DMOS output switch

andbull; 3.3-V, 5-V, 12-V fixed output and adjustable (1.2 V to 37 V) versions

andbull; 50-andmicro;A standby current when switched OFF

andbull; andplusmn;2% maximum output tolerance over full line and load conditions

andbull; Wide input voltage range: 8 V to 40 V

andbull; 260-kHz fixed frequency internal oscillator

andbull;andndash;40 to 125anddeg;C operating junction temperature range

andnbsp;

Applications

andbull; Communication module

andbull; Electricity meter

andbull; Calling button operating panel

andbull; Motor drives

andnbsp;

Description

The LM2676 series of regulators are monolithic integrated circuits which provide all of the active functions for a step-down (buck) switching regulator capable of driving up to 3-A loads with excellent line and load regulation characteristics. High efficiency (andgt; 90%) is obtained through the use of a low ON resistance DMOS power switch. The series consists of fixed output voltages of 3.3 V, 5 V, and 12 V and an adjustable output version.

The SIMPLE SWITCHERandreg; power converter concept provides for a complete design using a minimum number of external components. A high fixed frequency oscillator (260 kHz) allows the use of physically smaller sized components. A family of standard inductors for use with the LM2676 are available from several manufacturers to greatly simplify the design process.

The LM2676 series also has built-in thermal shutdown, current limiting, and an ON and OFF control input that can power down the regulator to a low 50‑andmicro;A quiescent current standby condition. The output voltage is ensured to a andplusmn;2% tolerance. The clock frequency is controlled to within a andplusmn;11% tolerance.

andnbsp;

Information

andnbsp;

Drawing
