S02B-PASK-2 2 Position 2.0mm Pitch Header PA Series Top Entry Through Hole Tin Plating 3A Rating 100V AC for Wire-to-Board and Compact Electronics

Features

• 2 positions with 2.0mm centerline spacing

• Top-entry (vertical) header orientation

• Through-hole termination for secure PCB mounting

• Positive lock compatibility for secure mating retention

• Polarized housing to prevent mis-mating

• Current rating: 3A per contact

• Voltage rating: 100V AC

• Operating temperature range: -25°C to +85°C

• Housing material: UL 94V-0 rated nylon

• Contact material: Tin-plated brass

Applications

• Consumer electronics (TVs, monitors, audio equipment)

• Office automation equipment (printers, copiers, scanners)

• Industrial control systems and instrumentation

• LED lighting and display modules

• Home appliances (microwaves, washing machines, refrigerators)

• Battery-powered devices and portable electronics

• Medical equipment and diagnostic devices

• General-purpose wire-to-board connections requiring compact design

Description

The S02B-PASK-2 is a 2-position, 2.0mm pitch header from JST, part of the PA series. It is a top-entry, through-hole header designed for crimp termination with PA series receptacle housings. The header features tin-plated brass contacts and is polarized to prevent incorrect mating. It provides a reliable wire-to-board connection with positive lock compatibility.

INFORMATION

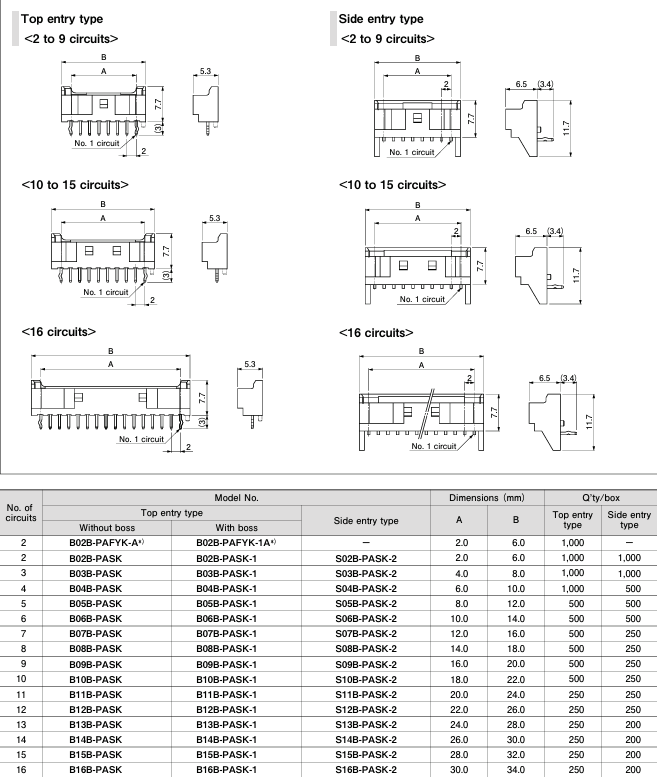

Drawing
