MMBTA92LT1G PNP transistor 300V VCEO 500mA Ic SOT-23 high voltage low saturation fast switching for telecom and industrial

Features

• S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

• Telecom Line Interface Circuits – Ringing signal generation and line voltage switching (POTS, VoIP adapters).

• High-Voltage Signal Amplification – Video output stages, CRT drivers, and high-voltage sensor interfaces.

• Relay and Solenoid Drivers – Switching 24V–48V relays with low-side configuration (PNP for high-side common anode loads).

• Switching Power Supply Auxiliaries – Start-up circuits, feedback loops, and voltage clamp networks in flyback converters.

• Electronic Ballasts & LED Drivers – High-voltage switching for compact fluorescent and LED lighting.

• Industrial Control Systems – PLC output drivers, valve controls, and high-voltage monitor inputs.

• Automotive Electronics – Load switches and signal conditioning for 12V/24V systems with transient overvoltage protection.

Description

The MMBTA92LT1G is a high-voltage PNP bipolar junction transistor (BJT) from onsemi, designed for switching and linear amplification applications requiring substantial voltage capability in a compact surface-mount package. Housed in the industry-standard SOT-23, this device offers a collector-emitter voltage (VCEO) of 300V and continuous collector current of 500mA. It features low saturation voltage and fast switching characteristics, making it suitable for high-voltage signal processing, telecom circuits, and industrial controls. The MMBTA92LT1G is the PNP complement to the popular MMBTA42LT1G NPN transistor. With its small footprint, high voltage rating, and lead-free (RoHS-compliant) construction, it is ideal for space-constrained designs where through-hole TO-92 parts are impractical.

INFORMATION

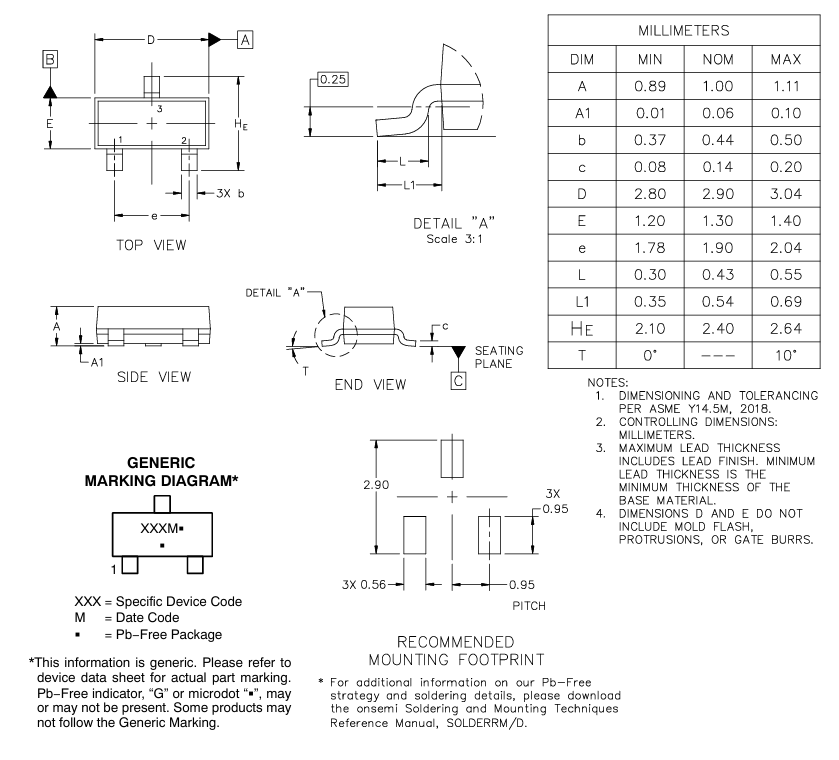

Drawing
