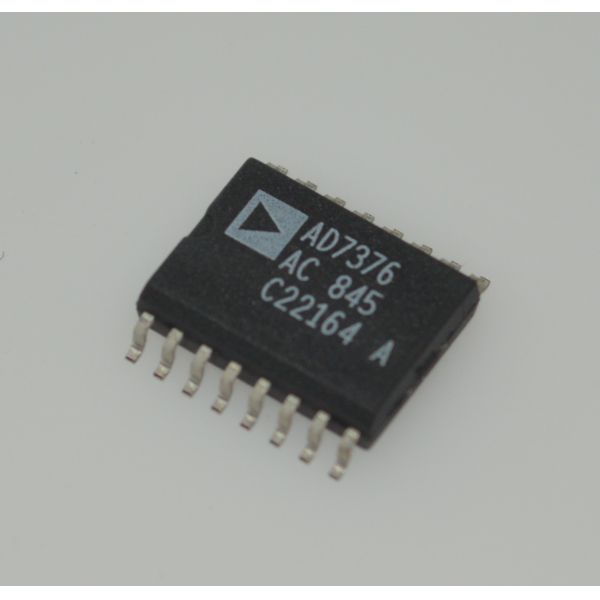

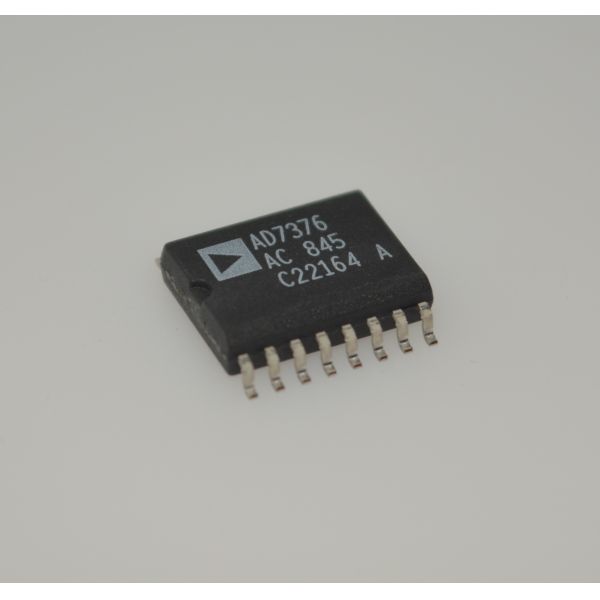

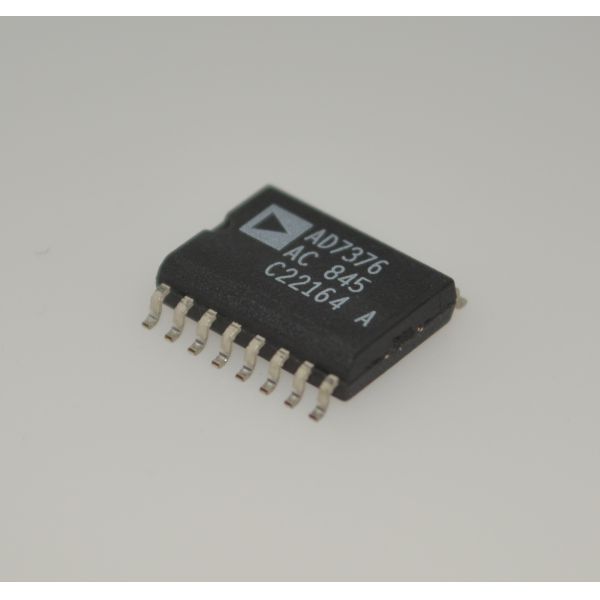

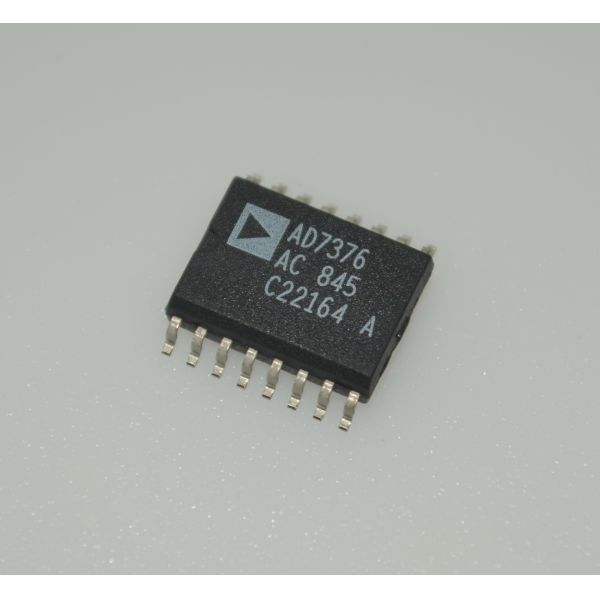

AD7376ARUZ10-R7 128-tap digipot 10k ohm SPI ±30% tolerance low tempco nonvolatile memory TSSOP-16 for trim and adjust

Features

• 128 positions

• 10 kΩ, 50 kΩ, 100 kΩ

• 20 V to 30 V single-supply operation

• ±10 V to ±15 V dual-supply operation

• 3-wire SPI®-compatible serial interface

• THD 0.006% typical

• Programmable preset

• Power shutdown: less than 1 µA

• iCMOS™ process technology

Applications

• High voltage DAC

• Programmable power supply

• Programmable gain and offset adjustment

• Programmable filters, delays

• Actuator control

• Audio volume control

• Mechanical potentiometer replacement

Description

The AD73761 is one of the few high voltage, high performance digital potentiometers2 on the market. This device can be used as a programmable resistor or resistor divider. The AD7376 performs the same electronic adjustment function as mechanical potentiometers, variable resistors, and trimmers with enhanced resolution, solid-state reliability, and programmability. With digital rather than manual control, the AD7376 provides layout flexibility and allows closed-loop dynamic controllability.

The AD7376 features sleep-mode programmability in shutdown that can be used to program the preset before device activation, thus providing an alternative to costly EEPROM solutions. The AD7376 is available in 14-lead TSSOP and 16-lead wide body SOIC packages in 10 kΩ, 50 kΩ, and 100 kΩ options. All parts are guaranteed to operate over the −40°C to +85°C extended industrial temperature range.

INFORMATION

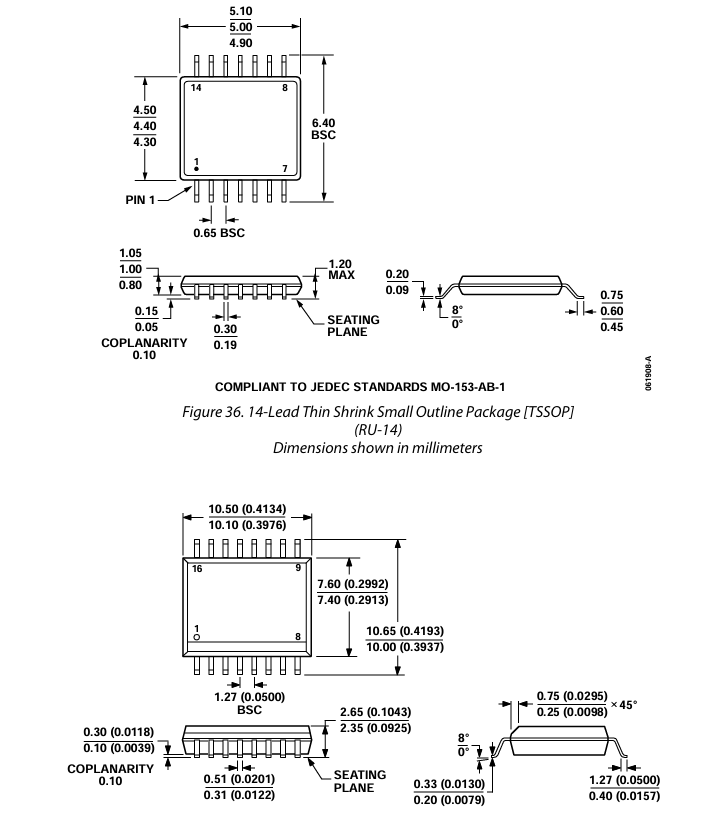

Drawing
