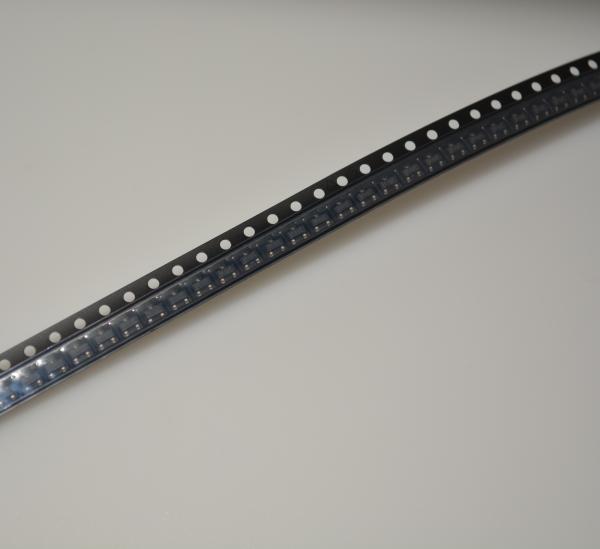

REF3030AIDBZR 3V0 Precision Voltage Reference with Ultra-High Accuracy Low Drift Low Quiescent Current Tiny X2SON Package and Excellent Thermal Hysteresis for Extended Battery Life andamp; Stability

andnbsp;

Features

andbull; Small industry standard footprint: SOT23-3

andbull; High accuracy

andnbsp; andndash; REF30E: andplusmn;0.1%

andnbsp; andndash; REF30: andplusmn;0.2%

andbull; Excellent temperature drift performance:

andnbsp; andndash; REF30E: 20ppm/anddeg;C

andnbsp; andndash; REF30: 75ppm/anddeg;C

andbull; REF30E is drop-in replacement of REF30

andbull; Low IQ (typical)

andnbsp; andndash; REF30E: 25andmicro;A

andnbsp; andndash; REF30: 42andmicro;A

andbull; High output current

andnbsp; andndash; REF30E: andplusmn;10mA

andnbsp; andndash; REF30: 25mA

andbull; Output voltage options

andnbsp; andndash; REF30E: 1.25V to 5V

andnbsp; andndash; REF30: 1.25V to 4.096V

andbull; Temperature range: -40andordm;C to +125andordm;C

andnbsp;

Applications

andbull; Field transmitter andamp; sensor

andbull; Solar energy

andbull; PLC, DCS andamp; PAC

andbull; Energy storage systems

andbull; Medical andamp; healthcare

andbull; AC inverter andamp; VF drives

andbull; Handheld Test Equipment

andnbsp;

Description

The REF30 is a precision, low-power, low-dropout voltage, reference family available in a tiny 3 pin SOT-23 package. REF30E is the enhanced performance version of REF30 family which is designed for precision applications. The REF30E offers improved temperature drift and initial accuracy while operating at a lower quiescent current of 25andmicro;A.

The low power consumption and the improved precision make the REF30E very attractive for loop powered industrial applications such as pressure and temperature transmitter and battery-powered applications. The REF30/REF30E is specified over the extended industrial temperature range of andndash;40anddeg;C to +125anddeg;C. The REF30 is easy to use in intrinsically safe and explosion-proof applications because the REF30 does not require a load capacitor to be stable.

andnbsp;

INFORMATION

andnbsp;

Drawing
