FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar

Features

• 4 kV AC 1min insulation

• AlSiC base plate for increased thermal cycling capability

• Package with CTl>400

• High creepage and clearance distances

• High power and thermal cycling capability

• High power density

• IHM B housing

Applications

• Resonant inverter applications

• High power converters

• Traction drives

• Wind turbines

Description

The FZ1600R17HP4B2 is a high-power IGBT module designed for demanding industrial applications. It is built on advanced IGBT technology, offering a high current rating of 1600A and a voltage class of 1700V. This module is engineered for high efficiency, featuring low collector-emitter saturation voltage (Vce(sat)) and low switching losses, which enables high-frequency operation and superior power density in system design. Its robust construction and high Safe Operating Area (SOA) ensure maximum reliability and long-term performance under strenuous conditions.

INFORMATION

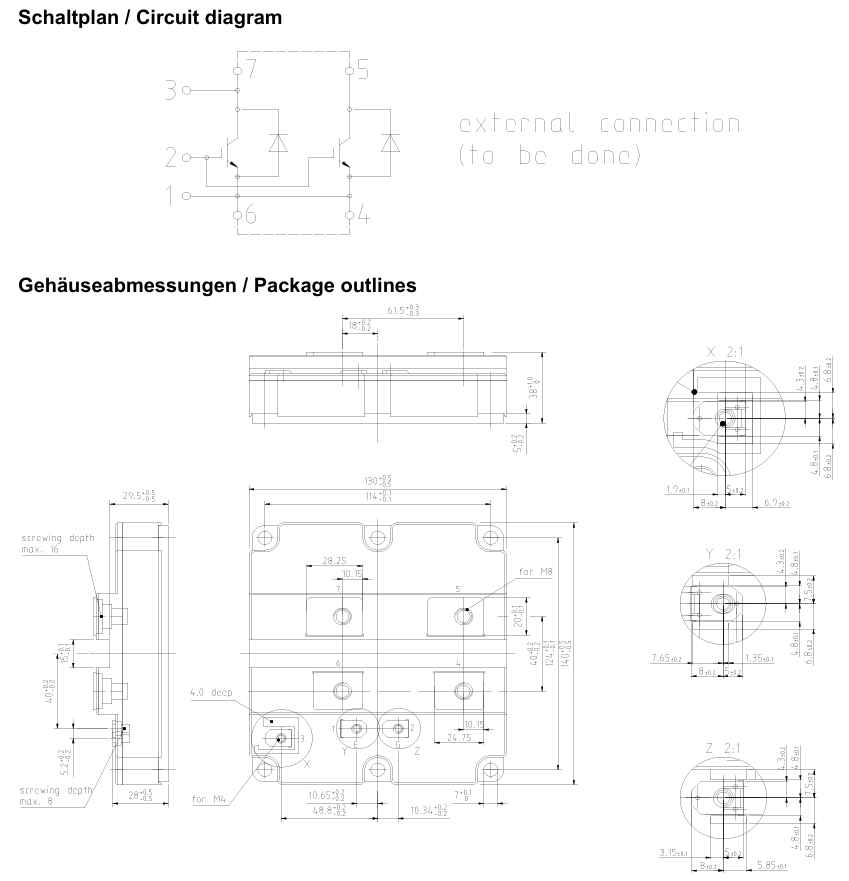

Drawing
