2SD300C17A2 1700V 300A Dual Diode Module Low Vf Fast Soft Recovery High Surge Current High Isolation Compact Package For Industrial Rectifiers and UPS

Features

• Dual channel driver

• Highly integrated SCALE-2 chipset

• Switching frequency up to 60kHz

• Gate current +30A

• 4W output power per channel

• Direct and half-bridge mode

• IGBT short-circuit protection

• Failure soft shut down

• Isolated DC/DC converter

• Safe isolation to EN 50178

• UL compliant

• Reliable, long service life

• Lead free

Applications

• Industrial Rectifiers: Three-phase bridge rectifiers in high-power motor drives, UPS systems, and switch-mode power supplies (SMPS).

• Uninterruptible Power Supply (UPS) Systems:

• Welding Equipment Power Supplies:

• High-Power Battery Chargers:

• Power Conversion Front-Ends for industrial inverters and converters.

Description

The 2SD300C17A2 is a high-voltage, high-current dual diode module designed for robust and efficient rectification in demanding industrial power supplies. It integrates two independent diodes within a compact, isolated package, each rated for a high repetitive peak reverse voltage of 1700V and an average forward current of 300A. The diodes feature a low forward voltage drop (Vf) to maximize efficiency and are engineered with fast soft recovery characteristics to minimize switching losses and electromagnetic interference (EMI). Its excellent surge current capability and high electrical isolation ensure reliable operation in high-power, high-stress environments.

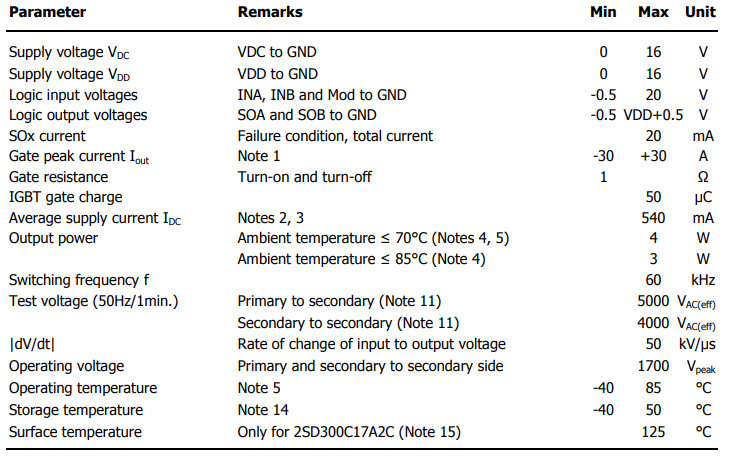

INFORMATION

Drawing
