BSM25GD120DLCE3224 1200V/25A IGBT Module Dual Configuration Low VCE(sat) High Speed Switching Low Loss Built-in NTC Isolated Baseplate Industrial Grade for UPS & Solar Inverters

Features

• Voltage/Current Rating: 1200 V / 25 A

• Configuration: Dual IGBT

• Low Saturation Voltage: VCE(sat) for high efficiency.

• High-Speed Switching: Low switching losses.

• Low Power Losses: Optimized for overall system efficiency.

• Built-in NTC Thermistor: For thermal monitoring and protection.

• Isolated Baseplate: Simplifies heatsink assembly and improves safety.

• Industrial Grade Reliability: Designed for long service life.

Applications

• Solar Inverters: Used in the power conversion stage of residential and commercial photovoltaic systems.

• Uninterruptible Power Supplies (UPS): Employed in the inverter section of online and line-interactive UPS systems.

• Industrial Motor Drives: For controlling AC motors in pumps, fans, and compressors.

• Welding Equipment: Provides the switching core for industrial welding machines.

• Induction Heating: Used in the power circuits of induction heating and melting systems.

Description

The BSM25GD120DLCE3224 is a high-performance dual IGBT module, rated for 1200V and 25A. It is engineered to deliver high efficiency and reliability in demanding power conversion applications. The module features a low collector-emitter saturation voltage (VCE(sat)) and is optimized for high-speed switching, resulting in low switching and conduction losses.

This robust module includes a built-in NTC thermistor for accurate temperature monitoring and protection, and features an isolated baseplate for easy and safe mounting to a heatsink. Its industrial-grade construction ensures long-term stability and performance, making it a durable solution for a wide range of power electronics.

INFORMATION

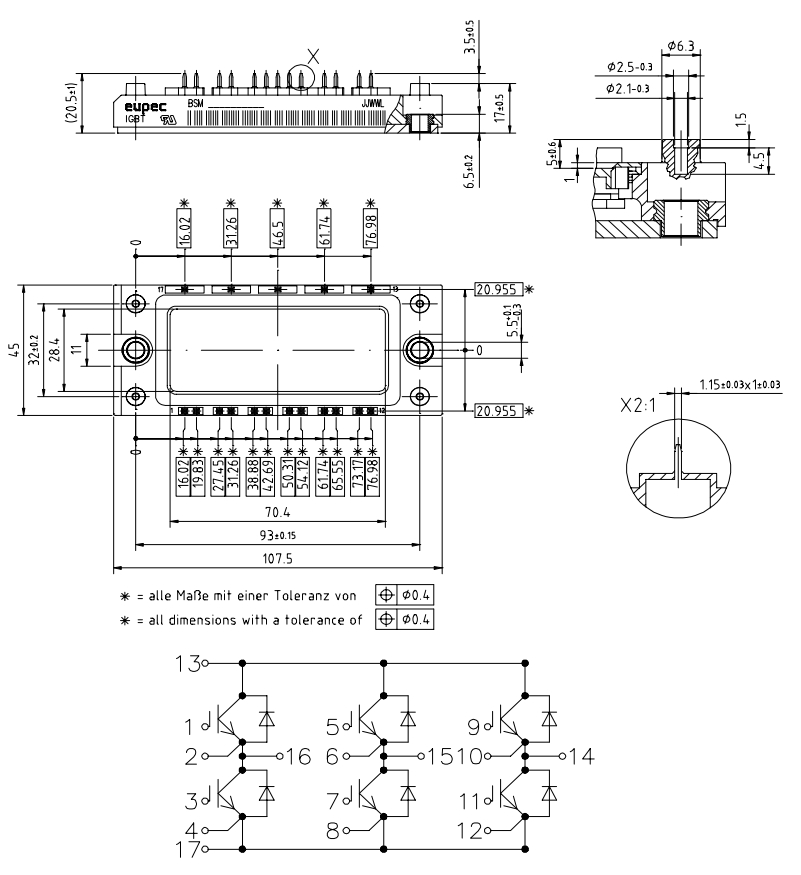

Drawing
