MMF200ZB040DK1 200A SiC MOSFET Power Module 400V Low Rds(on) 1.6mΩ High Efficiency High Speed Switching Automotive Grade Liquid Cooled For xEV Traction Inverters

Features

• Ultrafast Reverse Recovery Time

• Soft Reverse Recovery Characteristics

• Low Reverse Recovery Loss

• Low Forward Voltage

• High Surge Current Capability

• Low Inductance Package

Applications

• Inversion Welder

• Uninterruptible Power Supply (UPS)

• Plating Power Supply

• Ultrasonic Cleaner and Welder

• Converter & Chopper

• Power Factor Correction (PFC) Circuit

Description

The MMF200ZB040DK1 is a state-of-the-art, automotive-grade Silicon Carbide (SiC) MOSFET power module designed specifically for the demanding requirements of next-generation electric vehicle powertrains. It integrates advanced SiC technology to deliver exceptional efficiency and power density, featuring a high current rating of 200A and a 400V voltage class. The module boasts an extremely low typical on-state resistance (Rds(on)) of 1.6mΩ, which minimizes conduction losses. Combined with the inherent high-speed switching capabilities of SiC, it enables significantly higher operating frequencies and reduced system-level losses compared to traditional IGBT solutions. It is qualified to stringent automotive reliability standards, and its optimized liquid-cooled baseplate ensures effective thermal management for high-power, continuous operation.

INFORMATION

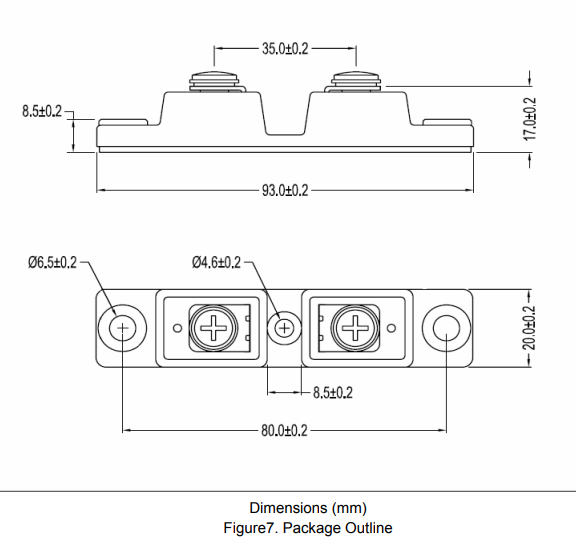

Drawing
