7MBR100VN120-50 1200V 100A PIM Module Integrated Rectifier and Inverter Low Loss High Isolation Built-in NTC Compact Package For Industrial Motor Drives and UPS

Features

• Low VcE(sat)

• Compact Package

• P.C.Board Mount Module

• Converter Diode Bridge Dynamic Brake Circuit

• RoHS compliant product

Applications

• Inverter for Motor Drive

• AC and DC Servo Drive Amplifier

• Uninterruptible Power Supply

Description

The 7MBR100VN120-50 is a high-current Power Integrated Module (PIM) designed to deliver a compact, robust, and efficient power solution for medium-power industrial drives and UPS systems. It integrates a three-phase input rectifier and a three-phase IGBT inverter bridge into a single, isolated package. With a rating of 1200V and 100A, it provides higher power handling in a compact form factor, significantly reducing system size and complexity. The module employs low-saturation voltage IGBTs and optimized freewheeling diodes to achieve high efficiency and low losses. It features high electrical isolation for safety, includes a built-in NTC thermistor for temperature monitoring and protection, and is built for reliable operation in demanding industrial environments.

INFORMATION

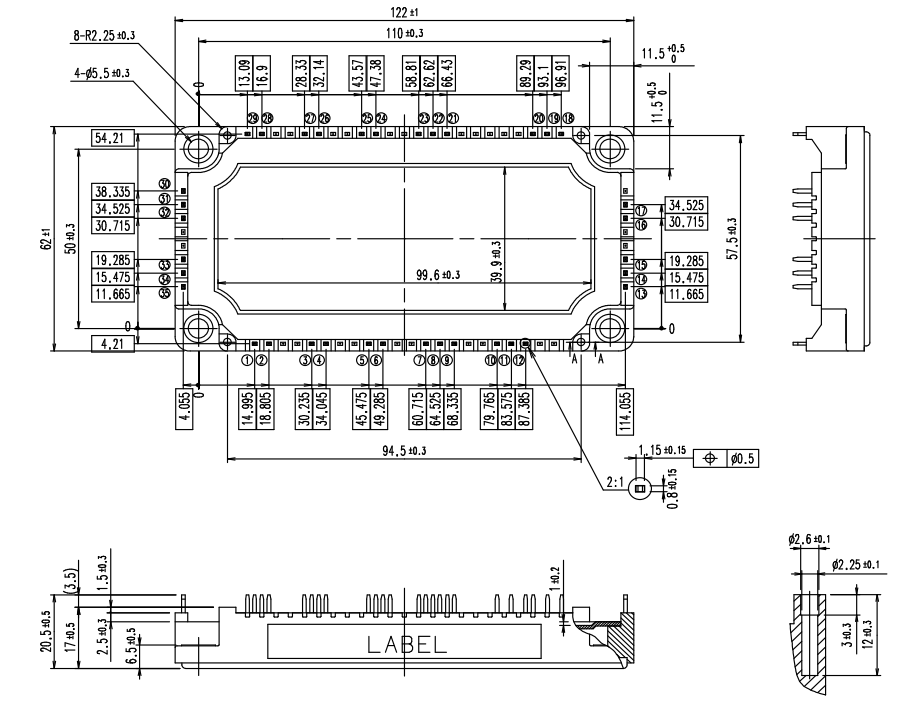

Drawing
