SKD33 16 1600V 33A Dual Diode Module Soft Recovery Low Forward Voltage High Surge Current High Isolation Compact EconoDUAL Package For Industrial Rectifiers and Welding

Features

• Glass passivated silicon chips

• Low thermal impedance through use of direct copper bonded aluminum substrate(DCB) base plate

• Blocking voltage up to 1800 V

• Suitable for PCB mounting and wave soldering

• For applications with high vibrations we recommend to fasten the bridge to the pcb with 4 selftapping screw

Applications

• Three phase rectifiers for power supplies

• Input rectifiers for variable frequency drives

• Rectifiers for DC motor field supplies

• Battery charger rectifiers

Description

The SKD33 16 is a high-voltage, high-current dual diode module designed for robust industrial rectification and power conversion applications. It integrates two independent diodes within a single, industry-standard isolated package. Each diode is rated for a repetitive peak reverse voltage of 1600V and an average forward current of 33A. The diodes feature low forward voltage drop for high efficiency and soft recovery characteristics to minimize switching losses and electromagnetic interference (EMI). The module offers excellent surge current capability and high electrical isolation, housed in a compact and mechanically robust EconoDUAL-style package. This combination makes it a reliable and efficient building block for high-power systems.

INFORMATION

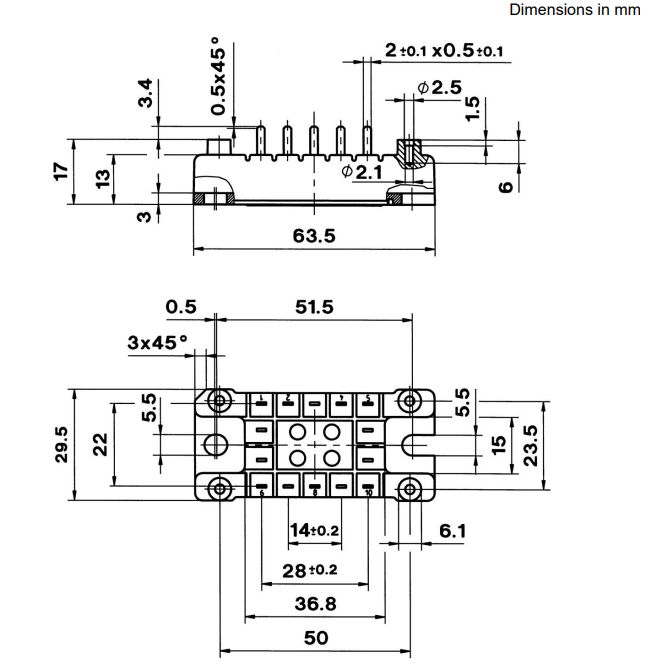

Drawing
