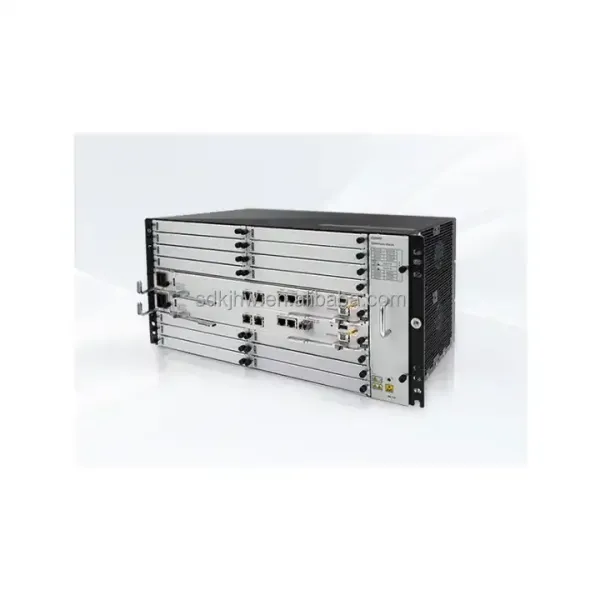

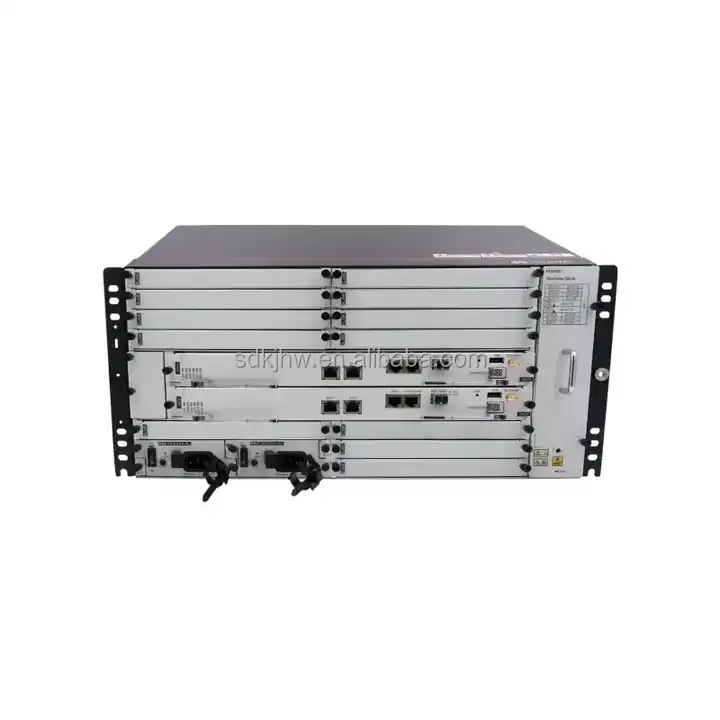

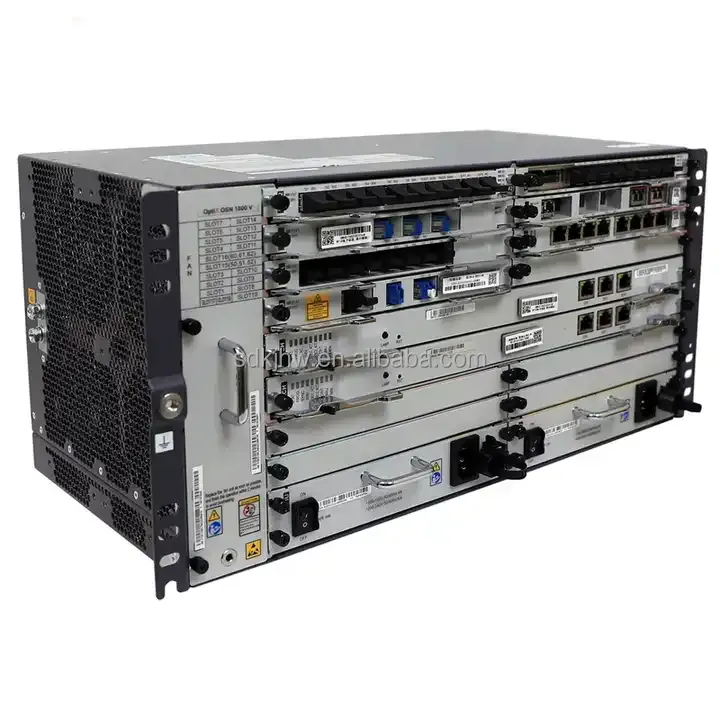

OptiXtrans E6600 Series 1 Optimal Fiber Optic Transmission for HUA WEI MS-OTN Platform
OptiXtrans E6600 Series 1 Optimal Fiber Optic Transmission for HUA WEI MS-OTN Platform
OptiXtrans E6600 Series 1 Optimal Fiber Optic Transmission for HUA WEI MS-OTN Platform
OptiXtrans E6600 Series 1 Optimal Fiber Optic Transmission for HUA WEI MS-OTN Platform
OptiXtrans E6600 Series 1 Optimal Fiber Optic Transmission for HUA WEI MS-OTN Platform
OptiXtrans E6600 Series 1 Optimal Fiber Optic Transmission for HUA WEI MS-OTN Platform
OptiXtrans E6600 Series 1 Optimal Fiber Optic Transmission for HUA WEI MS-OTN Platform
OptiXtrans E6600 Series 1 Optimal Fiber Optic Transmission for HUA WEI MS-OTN Platform
Specifications
Model Number :
OptiXtrans E6600 Series
Type :
OSN
Place of Origin :
Guangdong, China
Brand Name :
for HUA WEI
Use :
enterprise's all-optical campus scenario.
Warranty Time :
1 year
Network :
Wireless Lan, bluetooth, Wired LAN, ONVIF, SDK, POE
Product name :
OptiXtrans E9624X
Dimensions :
375x442*295mm
Installation Rack :
ETSI 300/600mm rack
Power Supply :
-48VDC/-60VDC
Rate per Channel (Max.) :
100G, 200G, 400G, 1T, 2T
Service Types Supported :
SDH, SONET, Ethernet, SAN, OTN, video
Part Number :
2301807
product series :
OptiXtrans E9624X
Certification :
CE/ RoHS/ FCC
Condition :
100% Brand new
MOQ :
2 units
Price :
$750.00 - $3,000.00/units
Description
OptiXtrans E6600 Series 1 Optimal Fiber Optic Transmission for HUA WEI MS-OTN Platform
HW OptiXtrans E6600 MS-OTN Platform With Multi-Service Optical Transport Network (MS-OTN) architecture, plus 4-in-1 high integration of PCM/SDH/PKT/OTN, Hua wei OptiXtrans E6600 supports the smooth evolution to next generation transport technology — liquid OTN. This MS-OTN Platform is an efficient transport solution for industries, in particular the energy, transportation, government, and banking sectors.
Specification
Parameters
HW OptiXtrans E6616
HW OptiXtrans E6608
HW OptiXtrans E6608T
HW OptiXtrans E6616X
Dimensions(H x D x W)
221 x 224 x 442 mm
88 x 220 x 442 mm
88 x 220 x 442 mm
221mm x 224mm x 442mm
Weight
10.6 kg
4.9 kg
4.9 kg
10.6 kg
Number of Service Board Slots
DC chassis: 14
DC chassis: 6
DC chassis: 7
DC chassis: 14
AC chassis: 12
AC chassis: 4
AC chassis: 5
AC chassis: 12
Equipment Capacity
OTN: 2.8T
OTN: 800G
N/A
OTN：620G
PKT: 920G
PKT: 400G
PKT：820G
SDH: 160G H/20G L
SDH: 60G H/10G L
SDH：160G H/20G L
Maximum Number of Wavelengths
DWDM: 96
DWDM: 96
DWDM: 96
N/A
CWDM: 8
CWDM: 8
CWDM: 8
Center Wavelength Range
DWDM: 1529.16–1567.13nm (C Band, ITU-T G.694.1)
N/A
CWDM: 1471–1611 nm (S + C + L Band, ITU-T G.694.2)
Maximum Rate per Channel
400 Gbit/s
100Gbit/s（grey）
Installation Mode
19-inch cabinet
ETSI 300 mm deep cabinet, such as N63E, N63B, and A63B
Power Supply
110 V AC to 220 V AC，-48 V DC to -60 V DC
