OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation
Specifications
Model Number :
OSN 1800 Series
Type :
OSN
Place of Origin :
Guangdong, China
Brand Name :
other
Use :
Mountainous plains, hilly lakes
Warranty Time :
1 year
Network :
Wireless Lan, bluetooth, Wired LAN, ONVIF, SDK, POE
Product name :
OSN1800 U series Transmission Equipment
Dimensions :
375x442*295mm
Installation Rack :
ETSI 300/600mm rack
Power Supply :
-48VDC/-60VDC
Rate per Channel (Max.) :
100G, 200G, 400G, 1T, 2T
Service Types Supported :
SDH, SONET, Ethernet, SAN, OTN, video
Packaging Details :
Carton or wooden box
Port :
Tianjin,Qingdao
Supply Ability :
1000 Unit/Units per Month
MOQ :
2 units
Price :
$200.00 - $3,000.00/units
Description
OptiX OSN 1800 Series Optical Network Solutions for ETSI 300/600mm Rack Installation

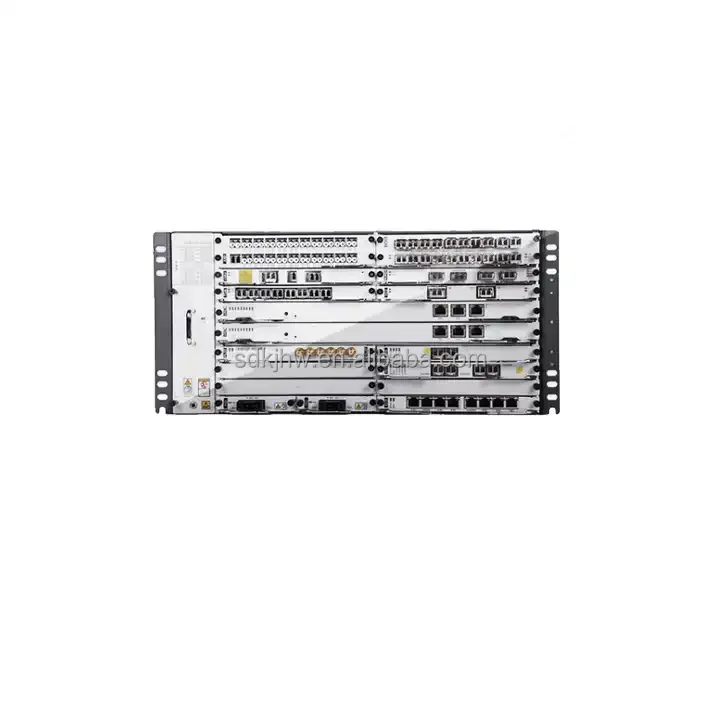

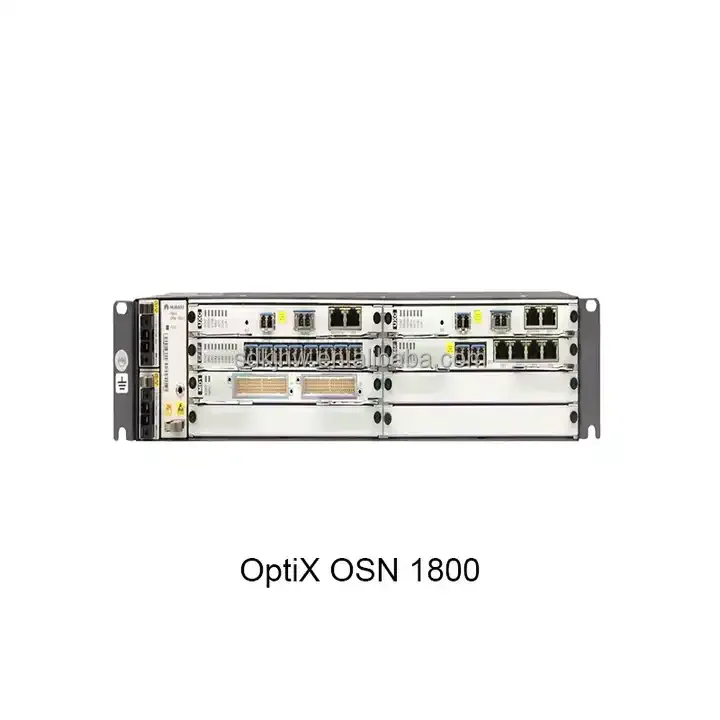

The OptiX OSN1800 is a series of box architecture Multi-Service Optical Transport Network (MS-OTN) transmission equipment that supports Time Division Multiplexing (TDM), packet, and Optical Transmission Network (OTN) services over a metro or campus optical network. This equipment enables multiple high-bandwidth services (from 2 Mbit/s to 100 Gbit/s) to be delivered at less cost. The OptiX OSN 1800 supports resilient, low-latency video transmission, real-time industrial automation applications, and server-based multimedia applications. It provides cost-effective transport solutions for power, medical, Storage Area Networks (SANs), data centers, and video security.
Specification
Specifications
OSN 1800 I Enhanced
OSN 1800 II
OSN 1800 II Enhanced
OSN 1800 V
Dimensions
44 mm x 220 mm x 442 mm
88 mm x 220 mm x 442 mm
88 mm x 220 mm x 442 mm
222 mm x 224 mm x 442 mm
(H x D x W)
Number of Service Slots
2 slots per cabinet (DC)
7 slots per cabinet (DC)
6 slots per cabinet (DC)
15 slots per cabinet (DC)
1 slots per cabinet (AC)
5 slots per cabinet (AC)
12 slots per cabinet (AC)
Cross-connect Capability
OTN: 40G ODUk (k=0/1/2/2e/flex)
N/A
OTN: 200G ODUk (k=0/1/2/2e/flex)
OTN: 700G ODUk (k=0/1/2/2e/flex
Packet: 120G
Packet: 160G
Packet: 700G
SDH: 40G (high-order), 5G (low-order)
SDH: 50G (high-order), 20G (low-order)
SDH: 280G (high-order), 40G (low-order)
Number of Wavelengths (maximum)
DWDM: 80 wavelengths
CWDM: 8 wavelengths
Rate per Wavelength (maximum)
100G/200G
Installation Rack
19-inch to 23-inch rack, ETSI 300 mm or 600 mm rack
Power Supply
110V to 220V AC, -48V to -60V DC
