Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Yihan
Model Number :
YH-900-08
Usage :
Cutting & Stripping, Stripping and cutting
Power supply :
AC220V/110V 50/60HZ
Stripping length :
Head 0 - 20mm Tail 0-100mm
Cutting Length :
1mm-99999.99mm
Stripping range :
0.1-8.0 mm2 BVR Multi Softlines
Max Catheter diameter :
9MM
Size :
400*300*330
Weight :
30KG
Warranty :
1year
Certification :
CE
Packaging Details :
Wooden package
Price :
$800.00/sets 1-2 sets
MOQ :
1 set
Description

Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire CuttingMax Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting

Max Catheter 9MM Stripping Range Stripping Machine for Multi Softlines Wire Cutting

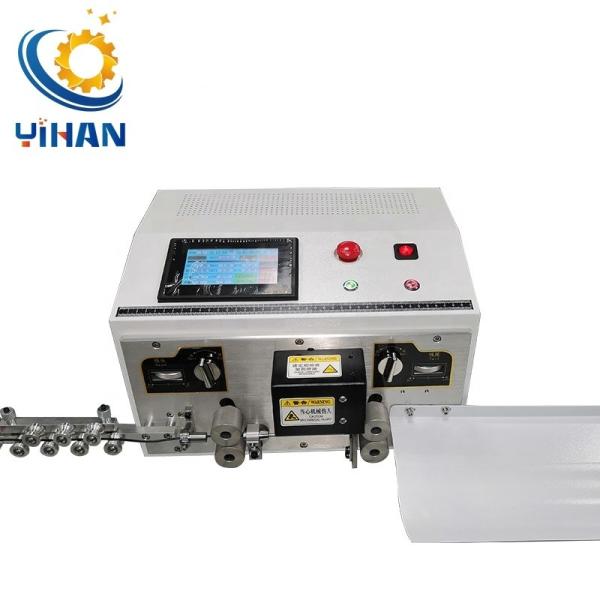

YH-900-08 The new touch screen Chinese and English automatic computer wire stripping and cutting machine

Features:

  • 1.The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display,can store hundreds of pieces of information, called at any time, fast efficiency.

  • 2.Compatible with the general features of 330# wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.

  • 3.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping, twisting function once completed,can instantly transform wire specifications and dimensions,it’s very economic.

  • 4.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.

Product Description
Product Name Automatic wires cutting stripping machine
Model YH-900-08
Dimension 400*300*330mm
Weight 30KG
Display method Chinese or English interface display
Power supply AC220/250V/50/60HZ
Capacity 120-220W
Cutting length 1mm-99999mm
Cutting Tolerance Adjustable
Peeling length Head 0.1-25mm Tail 0.1-100mm (According to the wire)
Applicable wire core area 0.1-8.0mm2
Productivity 3000-6000pcs/h(according to the cutting length)
Outer diameter of catheter 4,5,6,7,9MM
Drive mode Four simultaneously drive
Stripping Mode Long wire/ short wire /Multi-stripping / multi stripping
