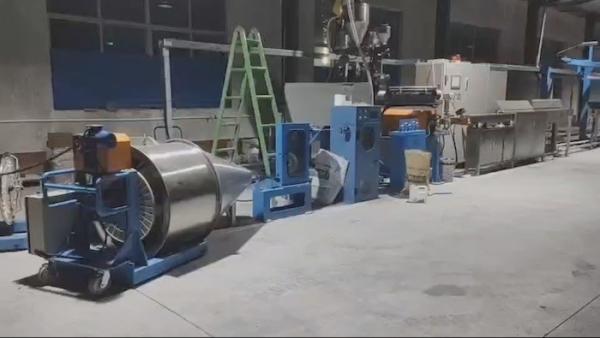

Automotive Wire High Speed Extrusion Production Line 1500m/min
Automotive Wire High Speed Extrusion Production Line 1500m/min
Specifications
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C, T/T, D/P, D/A
Name :
Automotive Wire High Speed Extrusion Production Line
Keyword :
Extrusion Production Line
Application :
extrusion of PVC and TPE materials
Applicable conductor :
0.22mm²--6mm²
Finished outer diameter :
φ1.2mm-φ5mm
Design speed :
1500m/min
Double-head coiling machine :
Max1000m/min
Double-reel semi-automatic take-up :
Max1000m/min
Description

Automotive Wire High Speed Extrusion Production Line 1500m/min

Extruders for electric wire insulation, sheathing, stripping and skinning with single, double or triple extrusion layers available by using different cross head
PVC, LDPE, and extrusion materials are shared with one BM type system. Our advanced design of screw gives largest output when using PVC or LDPE material
The extruder can work with LSHF, NYLON and TPU as well by using a different screw design
Also available for TEFLON extrusion by using a special screw, cylinder, cross head, heaters and temperature control system

The automated production line is specially used for the manufacturing of wires and cables, which can realize the continuous insulation coating of metal conductors (copper/aluminum). The winding and packaging can be matched with KPS cone-shaped reel fully automatic wire taking-up machine, double-head coiling machine, double-reel semi-automatic wire taking-up machine, etc.


Application

The production line is suitable for single-color, single-color strip, double-color strip, and full-cover extrusion of thermoplastic insulation materials such as PVC, PP, PE, XLPE, and low-smoke halogen-free, meeting the German, Japanese, Korean, Italian and other series of automotive wire insulation extrusion.

Suitable conductor:0.22mm²--6mm²;

Finished outer diameter: φ1.2mm-φ5mm;

Line speed: KPS take-up Max1500m/min;

Double-head coiling machine: Max1000m/min;

Double-reel semi-automatic take-up: Max1000m/min;

Specification

Screw specification (mm) Φ50 Φ70 Φ80 Φ90 Φ100 Φ120 Φ150
Maximum screw speed (rpm) 120 120 110 90 80 70 60
PVC glue output (kg/h) 100 180 280 360 430 500 800
PE glue output (kg/h) 50 90 140 180 200 280 400
PP glue output (kg/h) 40 90 110 140 - - -
Aspect ratio (L/D) (24-26):1
Drive power (kWAC) 22 45 55 75 90 132 160
Barrel temperature control area 4 4 5 5 6 7 8

Screw specification (mm) φ35 φ40 φ50 φ65
Mechanical type Reclining/horizontal

Reclining/horizontal

 horizontal horizontal
Maximum screw speed (rpm) 60/120 60/120 120 110
PVC glue output (kg/h) 20/30 20/35 100 160
PE glue output (kg/h) 10/25 14/30 50 75
PP glue output (kg/h) 14/25 16/30 40 80
Drive power (kW AC) 5.5/11 5.5/15 22 45
Barrel temperature control area 3 3 4 4
