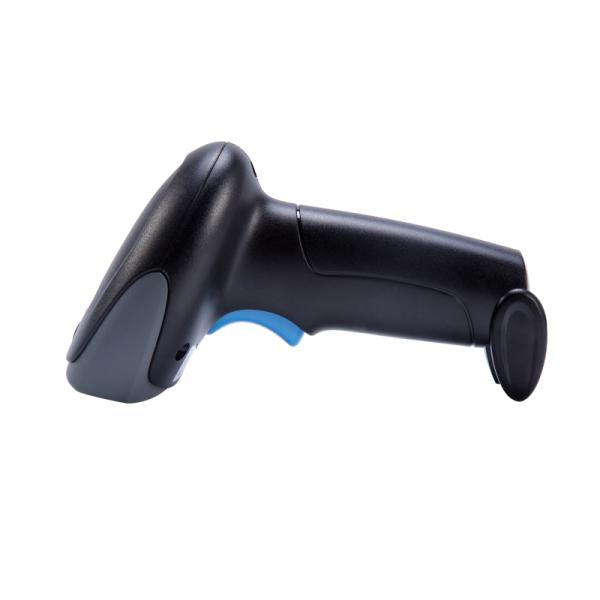

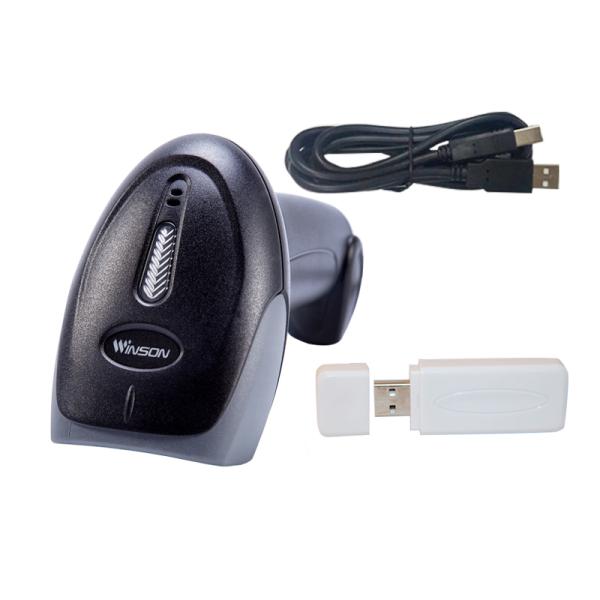

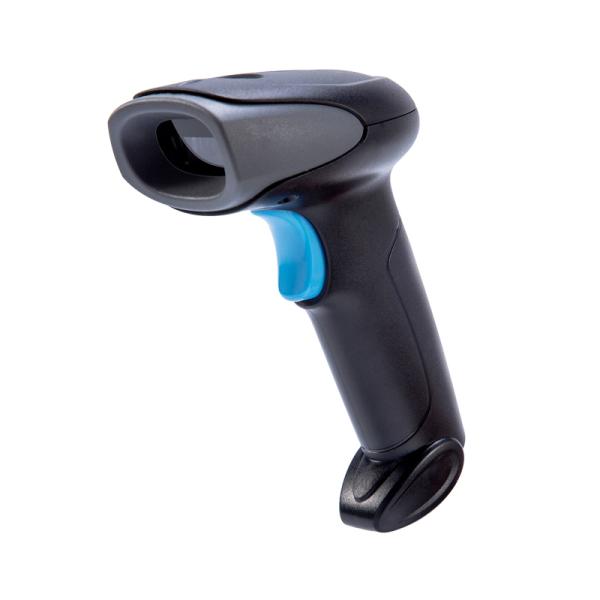

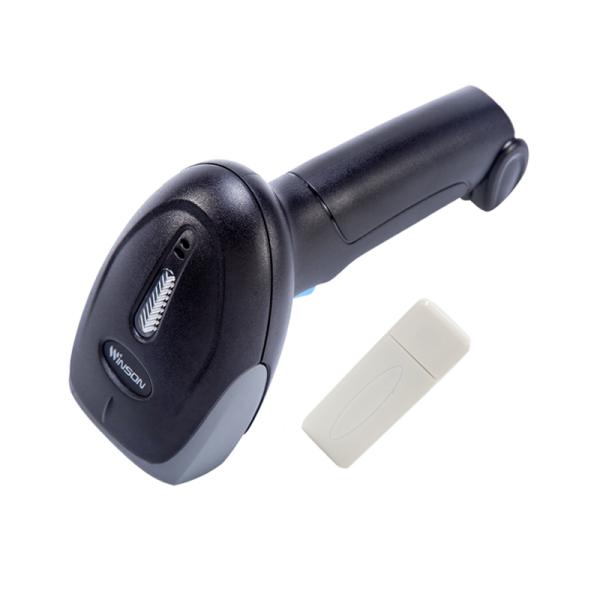

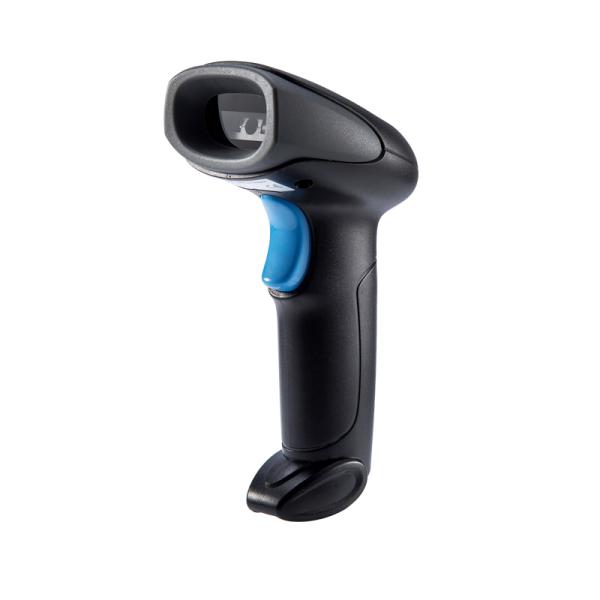

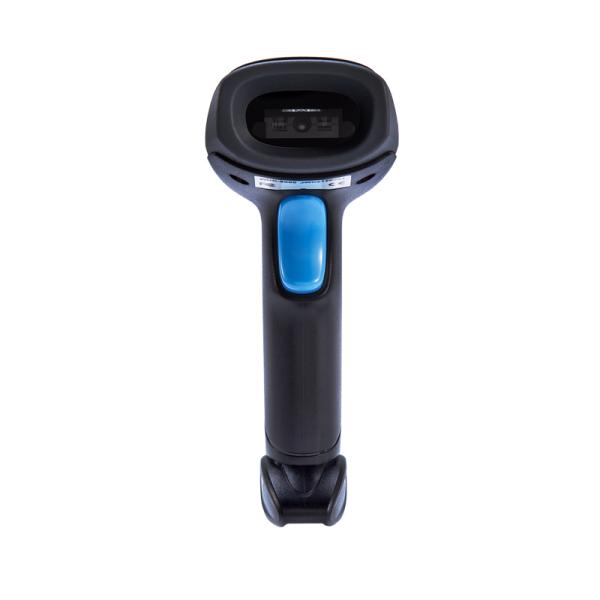

Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Specifications
private mold :
Yes
products status :
Stock
type :
CCD Code Scanner Gun
scan element type :
CCD
colour depth :
32 Bit
interface type :
usb, COM, PS/2
max paper size :
N/a
optical resolution :
2500 pix
scan speed :
350+50(scans/second)
Brand Name :
winson
Place of Origin :
Guangdong, China
warranty(year) :
1-Year
after-sales service :
Call Center and on-line Technical Support
software development kit (sdk) :
NO
color :
Orange, Black
Product name :
CCD Code Scanner Gun
Product type :
OEM CCD Scanner Gun
Interface :
USB HID KEYBOARD
USB HID KEYBOARD :
5VDC±10%
Light Source :
632nm Red LED
Memory :
100,000@13Byte barcode
Print Contrast :
>25%UPC/EAN 13(13mil)
Description
Product Description
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Handheld 1D Laser CCD Qr Code Supermarket Inventory Reader
Specification
Communications
2.4GHz
Communication frequency
2.402-2.480GHz
Data rate
1Mbps
Memory
500@13Byte barcode
Battery capacity
1500mAh (Lithium battery)
Charging time
4.5H
The life time of the full charge
4h(continuous reading situation)
9.5h(Manual reading situation)
More than 15 days(Stand-by time
Communication mode
Read-time mode/Inventory mode
Interface
USB HID KEYBOARD(Wireless receiver)
Voltage requirement
DC 5V±10%
Current consumption
Max:120mA
Min:50mA
Photo sensor
CCD linear sensor
Sensor Resolution
2500pix
light source
LED 632nm red led
Scan Rate:
350±50 (scans/second)
Decode angle
Pitch angle:±30°
Skew angle:±70°
Tilt angle:±45°
curvature
R≥15 mm (EAN8),R≥20 mm (EAN13)(resolution=0.26mm,PCS=0.9)
Min resolution
0.127mm/5mil(PCS 0.9)
Min .PCS value
>25%UPC/EAN 13(13mil)
Language
multiple languages
Identification
EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE
11,CHINESE POST
