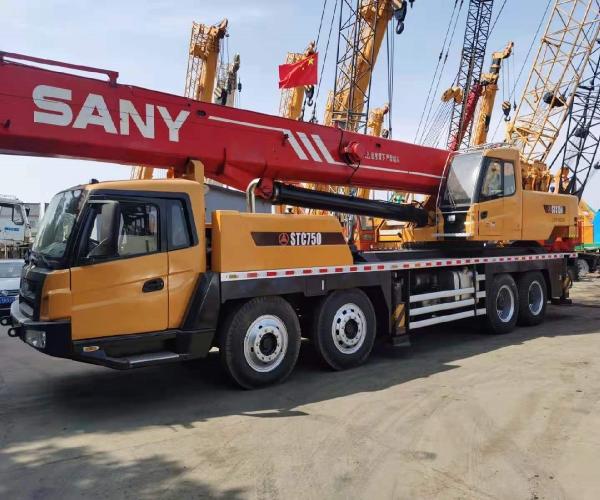

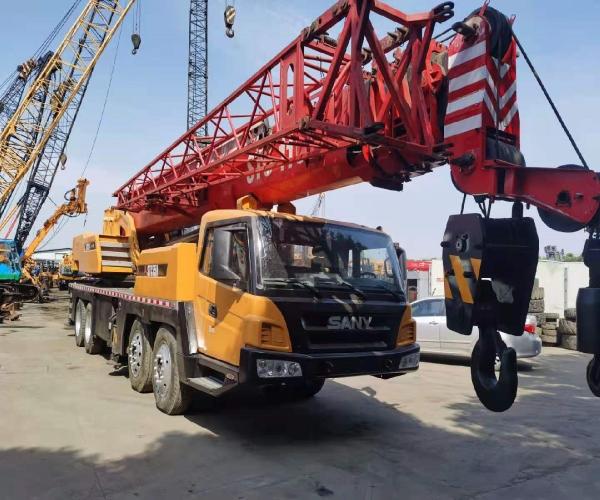

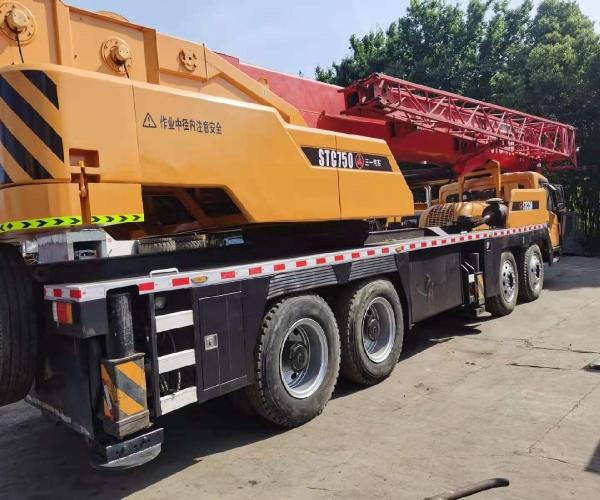

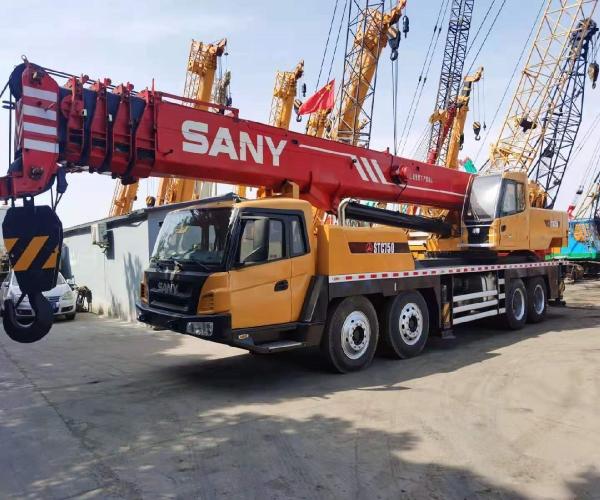

2017 Sany Used Truck Cranes 75 Tons
2017 Sany Used Truck Cranes 75 Tons
2017 Sany Used Truck Cranes 75 Tons
2017 Sany Used Truck Cranes 75 Tons
2017 Sany Used Truck Cranes 75 Tons
2017 Sany Used Truck Cranes 75 Tons
2017 Sany Used Truck Cranes 75 Tons
2017 Sany Used Truck Cranes 75 Tons
Specifications
Brand Name :
sany
Model Number :
STC750S
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T
Supply Ability :
10 Units/Month
Delivery Time :
15-25Days After Received The Downpayment
Packaging Details :
N/A
Name :
Second Hand Mobile Cranes
Manufacture Year :
2017
Max Lifting Capacity :
75T
Dimensions :
14695*2750*3830mm
Rated power :
274kw
Boom section :
5
Chassis :
Sany
Overall weight :
45340
Fuel consumption per 100km :
55L
Description

Sany Used truck crane 75 Tons 274 KW Rpm Rated Power

Sany STC750S Main Parameter
　Part Descreption　Parameter
CapacityMax. lifting capacity　t75
DimensionsOverall length/width/height　mm14695*2750*3830mm
Gross weight　　kg45340
PowerMax. engine power　kW/rpm274
Max. engine output tourque　N.m
1550
TravelingMax.traveling speed　km/h80
Min.turning radius　m12
Approvach angle°
20
Departure angle　°12
Max.gradeability　%37

Fuel consumption per

hundred kilometers
　L
55
Main Parameters
Temperature range
– 20 ℃ ~ +45 ℃
Min.rated range
m

3
Tail slewing radius of swingtable
m4.116
Boom section
 5-U shape
Full-extend boom
m45
Full-extend boom+jib
m61
Outrigger span (Longitudinal×Transversal)
m
6.1 × 7.6 m
Jib offset
m
0 °,15 °,30 °

Working speed

Max speed, main hoist, single line,no loadm/min
130 m/min
Max speed, aux hoist, single line, no load
m/min
130 m/min
Boom's full extending/Retracting time
　s
120 / 130 s
Boom's full raising/Lowering time
　s
80 / 80 s
Swing speed　r/min
2.0 r/min
