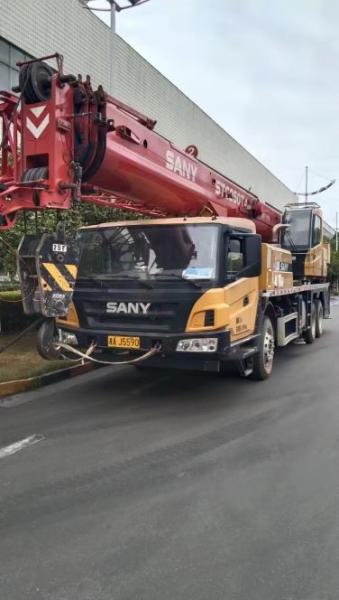

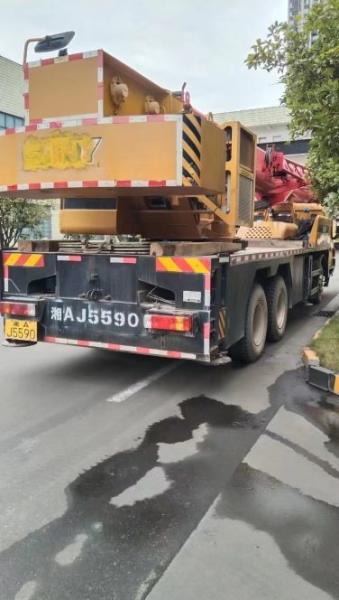

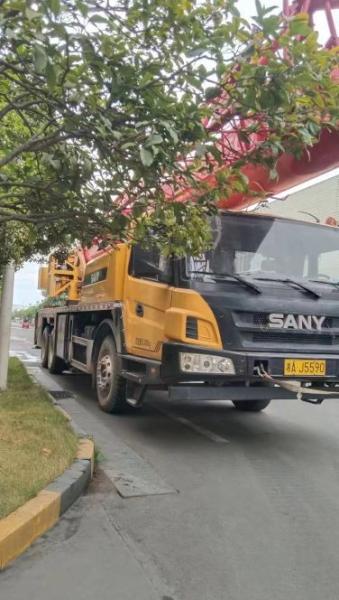

2019 Sany Used Mobile Crane 25Tons STC250C4
2019 Sany Used Mobile Crane 25Tons STC250C4
2019 Sany Used Mobile Crane 25Tons STC250C4
2019 Sany Used Mobile Crane 25Tons STC250C4
2019 Sany Used Mobile Crane 25Tons STC250C4
2019 Sany Used Mobile Crane 25Tons STC250C4
2019 Sany Used Mobile Crane 25Tons STC250C4
2019 Sany Used Mobile Crane 25Tons STC250C4
2019 Sany Used Mobile Crane 25Tons STC250C4
2019 Sany Used Mobile Crane 25Tons STC250C4
Specifications
Brand Name :
sany
Model Number :
STC250C4
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T
Supply Ability :
10 Units/Month
Delivery Time :
15-25Days After Received The Downpayment
Packaging Details :
N/A
Manufacture Year :
2019
Chassis :
Sany
Emission :
Euro V
Axel :
6X4
Max Lifting Height :
43.5m
Max Lifting Capacity :
25T
Max Boom Length :
35m
Working Hourrs :
3535.9h
Description

Sany Used Truck Crane 25Tons 220KW Rpm Rated Power

Sany STC250C4 Main Parameter
　 Part Descreption 　 Parameter
Capacity Max. lifting capacity 　 25 t
Dimensions Overall length/width/height 　 12490/2500/3800mm
　 Axle distance 　 4225mm/1350mm
Gross weight 　 　 30800kg
Power Max. engine power 　 220/2100kW/rpm
Max. engine torque 　 1250/(1200~1600) N·m/rpm
Traveling Max.traveling speed 　 85km/h
Min.turning radius 　 11m
Min.steering radius of boom tip 　 12.5m
Min.ground clearance 　 220mm
　 　 　
Max.gradeability 　 41%
Fuel consumption per 　 30L
Tail slewing radius of swingtable 　 3.0m
Main Parameters Boom section 　 4
Boom shape 　 U shape
　 Base boom 1078kN.m
Max.lifting moment Full-extend boom 659kN.m
　 Full-extend boom+jib 293kN.m
　 Base boom 10.8m
Boom length Full-extend boom 35m
　 Full-extend boom+jib 43m
Outrigger span (Longitudinal×Transversal) 　 5.28m×6.4m
Working speed Max.single rope lifting main/auxiliary winch (no load) 125m/min
Full extension/retraction time of boom 　 80s/95s
Full lifting/descending time of boom 　 45s/50s
Slewing speed 　 (0～2.7)r/min
