Gold-Plated ICT FCT Spring Test Probes for Circuit Boards GKS-100 Series

Specifications

Brand Name :

WIINNER

Certification :

ISO9001

Place of Origin :

China

MOQ :

1pc

Price :

1-999

Payment Terms :

,T/T,L/C,Western Union

Supply Ability :

1000000 rolls per month

Delivery Time :

5~8 working days.

Packaging Details :

Roll, Neutrial Packing or with OEM LOGO

Color :

Black,black/red,White,Red & Black

Product name :

test probe

Type :

ICT / FCT (in-circuit test and function test

Series :

GKS-100

Grid :

2.54 mm

Warranty :

12 months,1 Year

Oem/odm :

welcome order

Product :

in stock

Operating temperature :

0℃~40℃

Package :

selectable,Carton

Min. temperature :

- 40 °C

Max. temperature :

+ 80 °C

The probe length :

40mm

Total length : :

33.4 mm

Barrel diameter : :

1.37 mm

Maximum stroke : :

6.35 mm

Spring pre-load : :

0.78 N

Collar height : :

Spring force at working stroke : :

3 N

Working stroke : :

4.3 mm

Availability :

Custom sizes available

Description

Factory Supply Gold Plated Test Probes

Well-established test probes for contacting PCBs

For optimal contact to the test points (e.g. pads, vias, and pins), various tip styles with various diameters and finishes are available.

Various spring forces available as well as versions with stainless steel springs suitable for high temperatures

Used for setting the optimum stroke conditions in the test fixture, various installation heights can be achieved by combining test probes and receptacles

Electrical data

Current load capacity / rated current :5 A

Typical resistance (Ri) :< 20 mOhm

Mechanical data

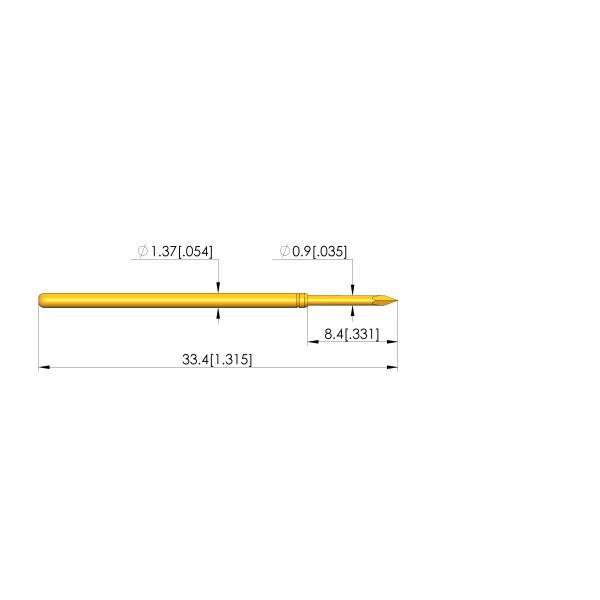

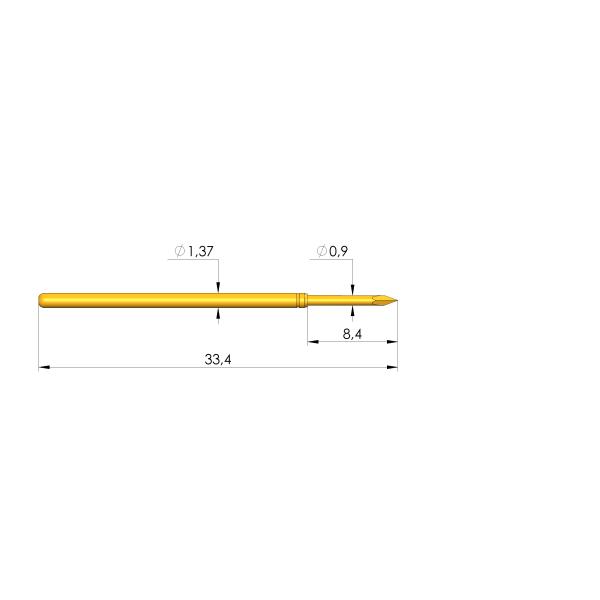

Total length :33.4 mm

Barrel diameter :1.37 mm

Maximum stroke :6.35 mm

Spring pre-load :0.78 N

Collar height :00

Spring force at working stroke :3 N

Working stroke :4.3 mm

Tip style data

Tip style :91 dagger, self-cleaning

Tip diameter :0.9 mm

Tip style surface :A gold

Tip style material :2 steel

Test Probe Selection
Test probes also have many different manufacturers, but all have similar constraints. When choosing a test probe receptacle, the most important decision is what tip to use.

The number of tips that are available can be overwhelming. From past experiences, we found that we typically only use a couple of different tips.
* Crown
* Spear
* Cup
* Cone

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we provide customized diameters, plating thicknesses, and mechanical specs upon request. Every reel is delivered with material traceability and certificate of analysis.

Contact us to request samples or a quotation for your application needs.
