High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
Specifications
Brand Name :
WINNER
Certification :
ISO9100
Place of Origin :
CHINA
MOQ :
3000pcs
Price :
999
Payment Terms :
L/C,Western Union,T/T
Supply Ability :
100000 rolls per month
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
Neutrial Packing or with OEM LOGO
Product name :
standard size test probe
Plunger :
BeCu/SK4,gold -plated
Barrel :
Bronze , Gold-palted
Spring :
SWP, Au on Ni palted
Availability :
Custom sizes available
Coating :
Gold plated
MOQ :
3000pcs
Receptacle :
Brass Gold plated
Current Rating :
0.5amps
contact resistance :
50 millionhms max
Full stroke :
1.50mm
Rated stroke :
1.00mm
spring force :
1.0/2.0/3.0N
CEM1 :
0.5mm
FR4 :
0.5mm
Standard :
-40℃-+80℃
Special Design"C" :
-100℃-+200℃
Description
Spring Contact Probe Spring Test Probe P038
Customized Brass Barrel Stainless Steel Spring Test Probe P038 for In-Circuit-Test (ICT)

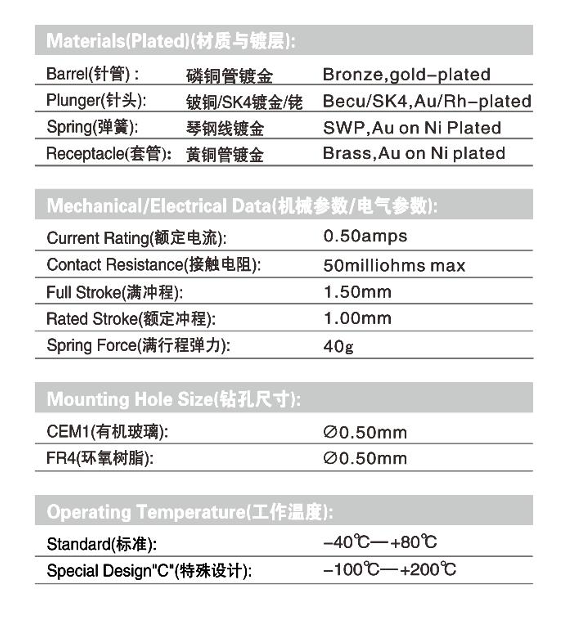

Production Specifications
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
Product Images
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT ApplicationsHigh Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT ApplicationsHigh Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications

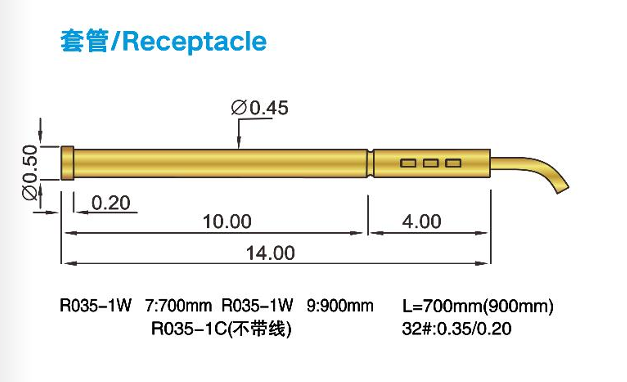

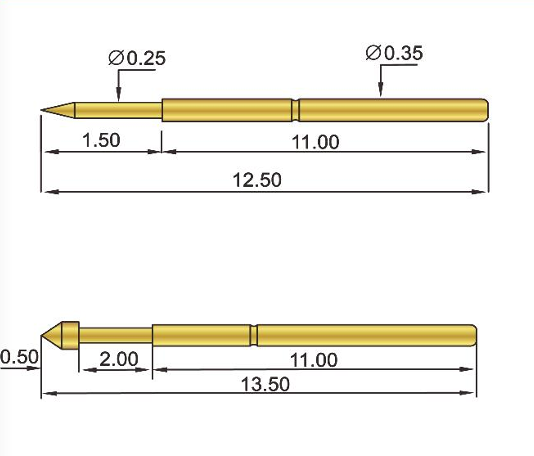

Detailed Component Illustration
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications

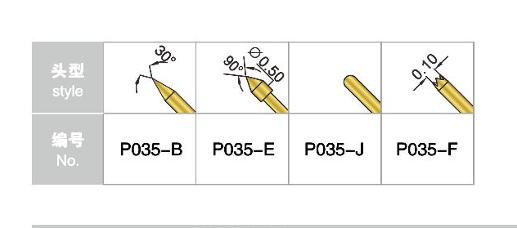

Comparison of different test probe tip types and configurations
Customization Options
At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance.
Manufacturing Process
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
Our probe manufacturing facility
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
Quality control inspection
High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
Packaged probes ready for shipment
Contact us to request samples or a quotation for your specific application requirements.
