High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT

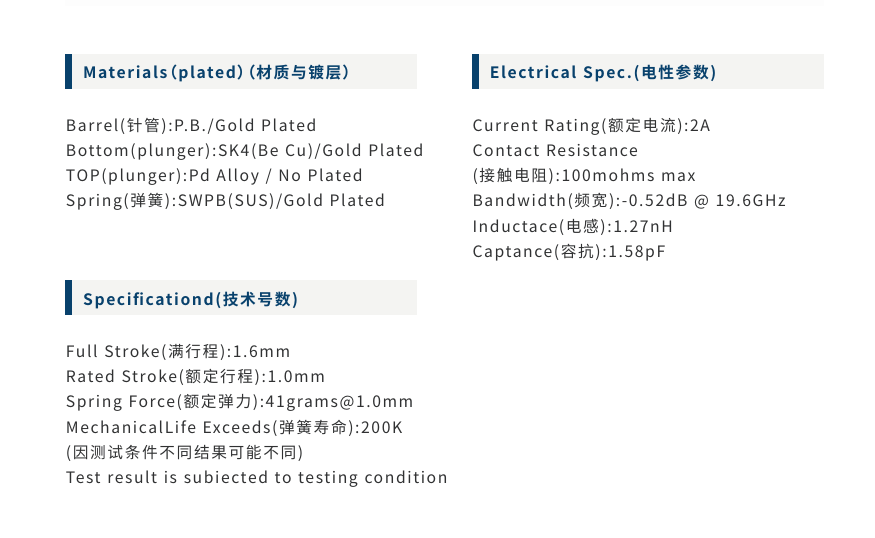

Specifications
Brand Name :
WINNER
Certification :
ISO9100
Place of Origin :
CHINA
MOQ :
3000pcs
Price :
999
Payment Terms :
L/C,Western Union,T/T
Supply Ability :
100000 rolls per month
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
Neutrial Packing or with OEM LOGO
Product name :
spring test probe
Barrel :
P.B., Gold-palted
Bottom Plunger :
BeCu/SK4,gold -plated
TOP Plunger :
SK4(Be Cu)/Gold Plated
Spring :
SWPB(SUS)/Gold Plated
Availability :
Custom sizes available
Coating :
Gold plated
Current Rating :
2A
contact resistance :
100 mohms max
Bandwidth :
-0.52dB @ 19.6GHz
inductace :
1.27nH
Captance :
1.58pF
Full stroke :
1.6mm
Rated stroke :
1.0mm
spring force :
41grams@1.0mm
Mechanical Life Exceeds :
200K
Description
YOUFU UF-FT075FF070-002 Dual Head Spring Loaded Pogo Pins
High precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities for semiconductors and SiC wafers.
Key Product Features
  • High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

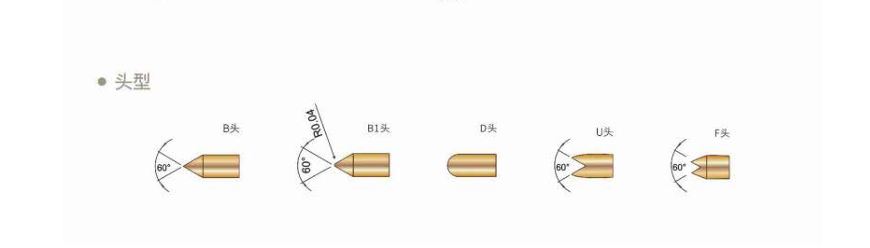

  • Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
  • Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
  • Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory
Product Images
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT


High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT

High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT

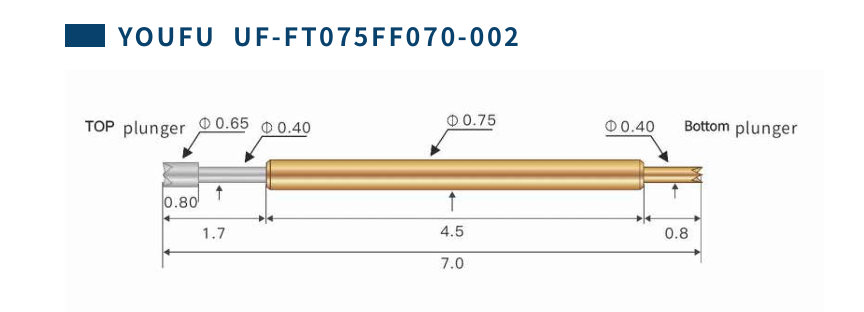

Detailed Component Illustration
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT


High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT


High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT





High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT

Customization Options
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT
