Factory direct price spring test pin probes
Factory direct price spring test pin probes
Factory direct price spring test pin probes
Factory direct price spring test pin probes
Factory direct price spring test pin probes
Factory direct price spring test pin probes
Factory direct price spring test pin probes
Factory direct price spring test pin probes
Factory direct price spring test pin probes
Factory direct price spring test pin probes

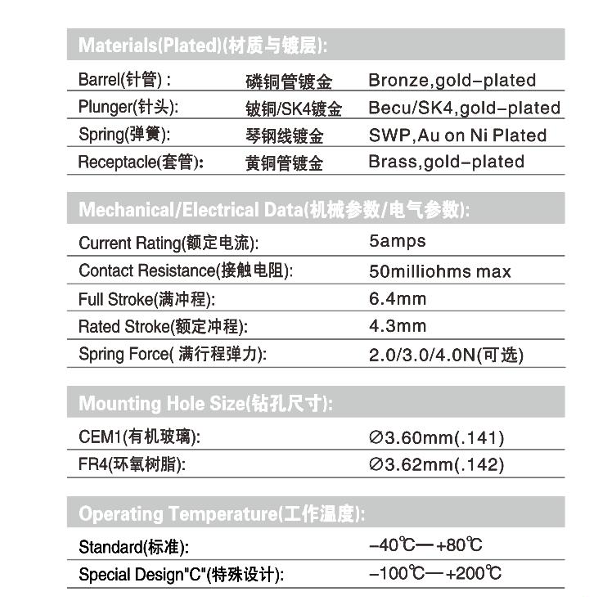

Specifications
Brand Name :
WINNER
Certification :
ISO9100
Place of Origin :
CHINA
MOQ :
3000pcs
Price :
999
Payment Terms :
L/C,Western Union,T/T
Supply Ability :
100000 rolls per month
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
Neutrial Packing or with OEM LOGO
Product name :
standard size test probe
Plunger :
BeCu/SK4,gold -plated
Barrel :
Bronze , Gold-palted
Spring :
SWP, Au on Ni palted
Availability :
Custom sizes available
Coating :
Gold plated
MOQ :
3000pcs

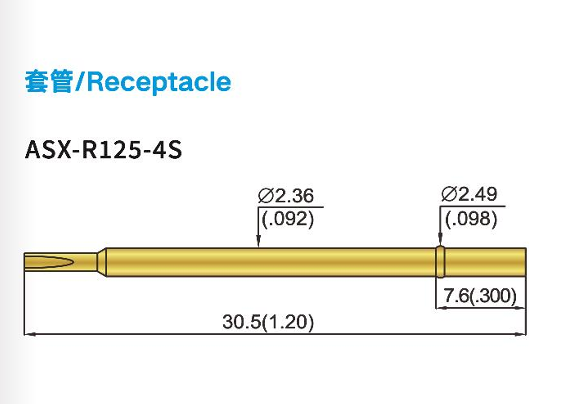

Receptacle :
Brass Gold plated
Current Rating :
1amps
contact resistance :
50 millionhms max
Full stroke :
6.4mm
Rated stroke :
4.3mm
spring force :
2.0/3.0/4.0N
CEM1 :
3.60mm
FR4 :
3.62mm
Standard :
-40℃-+80℃
Special Design"C" :
-100℃-+200℃
Description
Wholesale Price Spring Loaded Test Probes - Model P038
High demand gold plated brass barrel stainless steel spring test probes designed for In-Circuit-Test (ICT) applications. These precision components offer reliable performance and durability for demanding testing environments.
Production Specifications Factory direct price spring test pin probes

Product Images Factory direct price spring test pin probes
Factory direct price spring test pin probes Factory direct price spring test pin probes
Factory direct price spring test pin probes
Factory direct price spring test pin probes

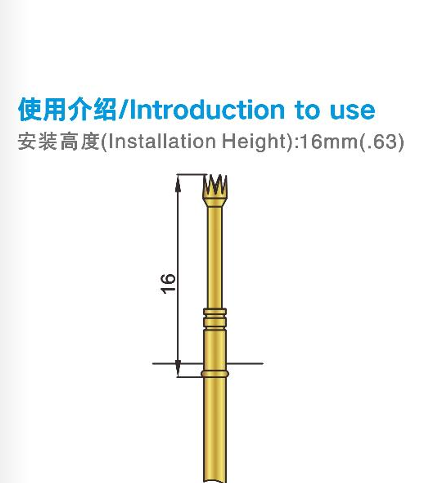

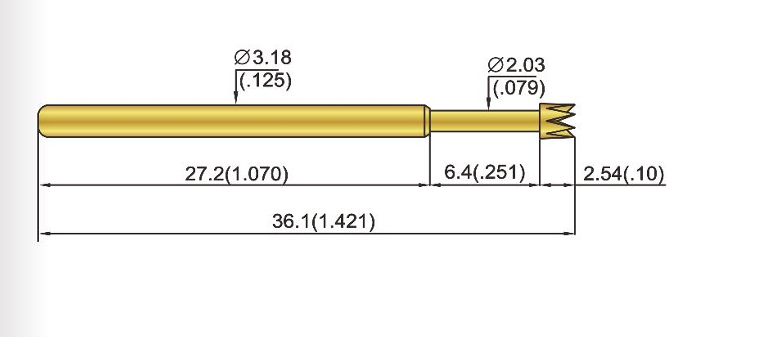

Detailed Component Illustration
Factory direct price spring test pin probes

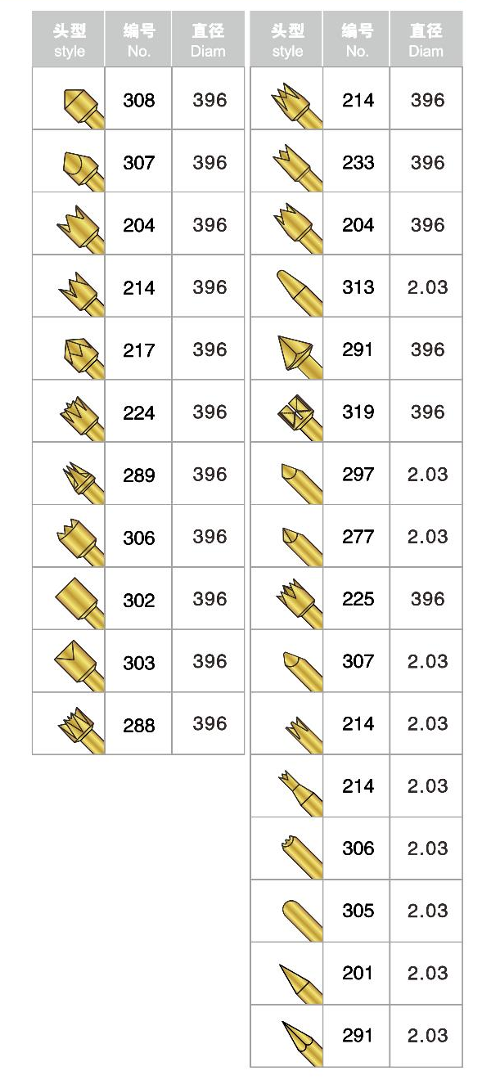

Comparison of different test probe tip types and configurations
Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

  • Custom diameters to match specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance.

Manufacturing Process
Factory direct price spring test pin probes
Our probe manufacturing facility
Factory direct price spring test pin probes
Quality control inspection
Factory direct price spring test pin probes
Packaged probes ready for shipment
Contact us to request samples or a quotation for your specific application requirements.
