Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications

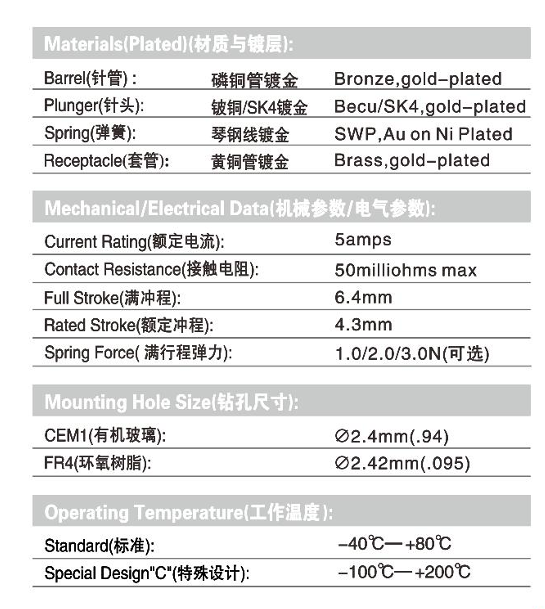

Specifications
Brand Name :
WINNER
Certification :
ISO9100
Place of Origin :
CHINA
MOQ :
3000pcs
Price :
999
Payment Terms :
L/C,Western Union,T/T
Supply Ability :
100000 rolls per month
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
Neutrial Packing or with OEM LOGO
Product name :
standard size test probe
Plunger :
BeCu/SK4,gold -plated
Barrel :
Bronze , Gold-palted
Spring :
SWP, Au on Ni palted
Availability :
Custom sizes available
Coating :
Gold plated
MOQ :
3000pcs

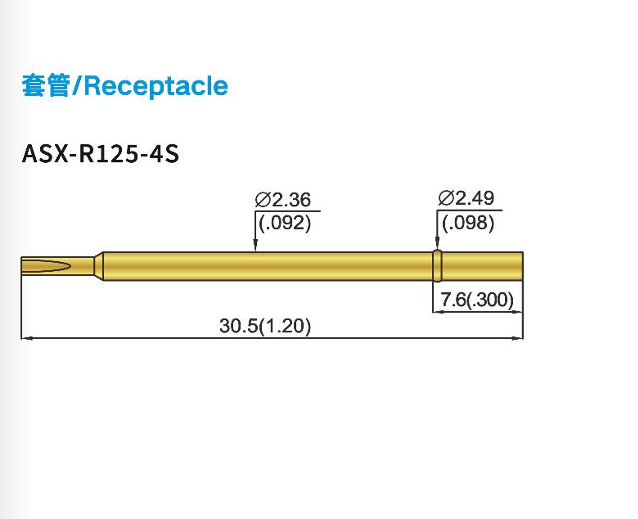

Receptacle :
Brass Gold plated
Current Rating :
5amps
contact resistance :
50 millionhms max
Full stroke :
6.4mm
Rated stroke :
4.3mm
spring force :
1.0/2.0/3.0N
CEM1 :
2.4mm（.94）
FR4 :
2.42mm(.095)
Standard :
-40℃-+80℃
Special Design"C" :
-100℃-+200℃
Description
Spring Contact Probe Spring Test Probe P048
Product Description

Customized Brass Barrel Stainless Steel Spring Test Probe P048 for In-Circuit-Test (ICT)

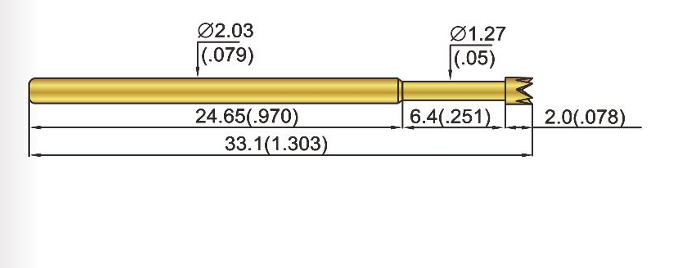

Production SpecificationsCustom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications

Product Images
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT ApplicationsCustom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT ApplicationsCustom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications

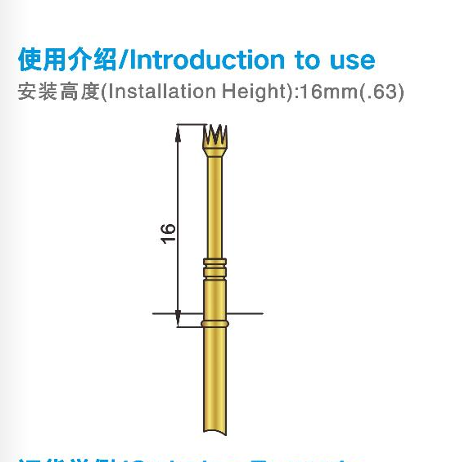

Detailed Component Illustration
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications

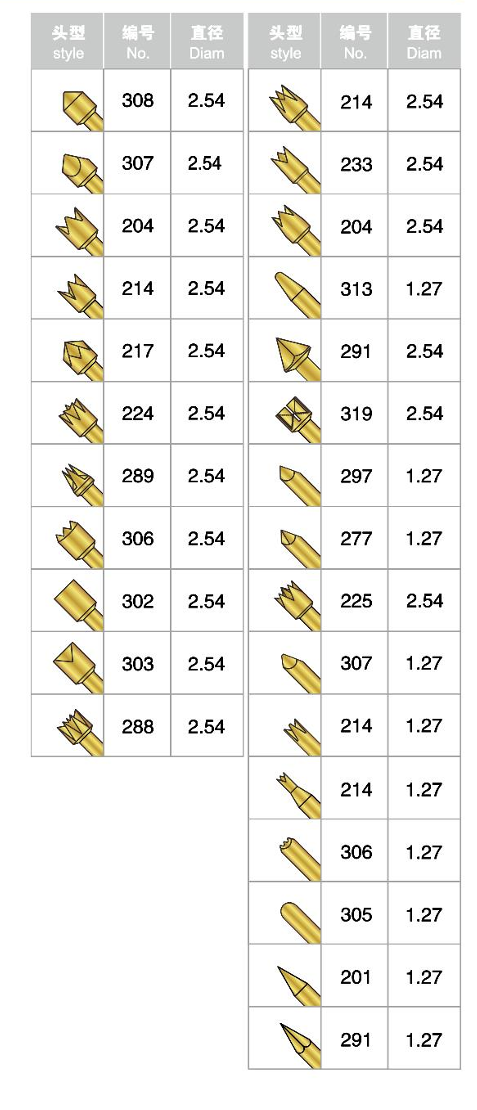

Comparison of different test probe tip types and configurations
Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Our probe manufacturing facility
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Quality control inspection
Custom Sizes Stainless Steel Spring Test Probe with BeCu/SK4 Plunger for ICT Applications
Packaged probes ready for shipment
