Double plunger, push fit test probe for fine pitch components.
Double plunger, push fit test probe for fine pitch components.
Double plunger, push fit test probe for fine pitch components.
Double plunger, push fit test probe for fine pitch components.

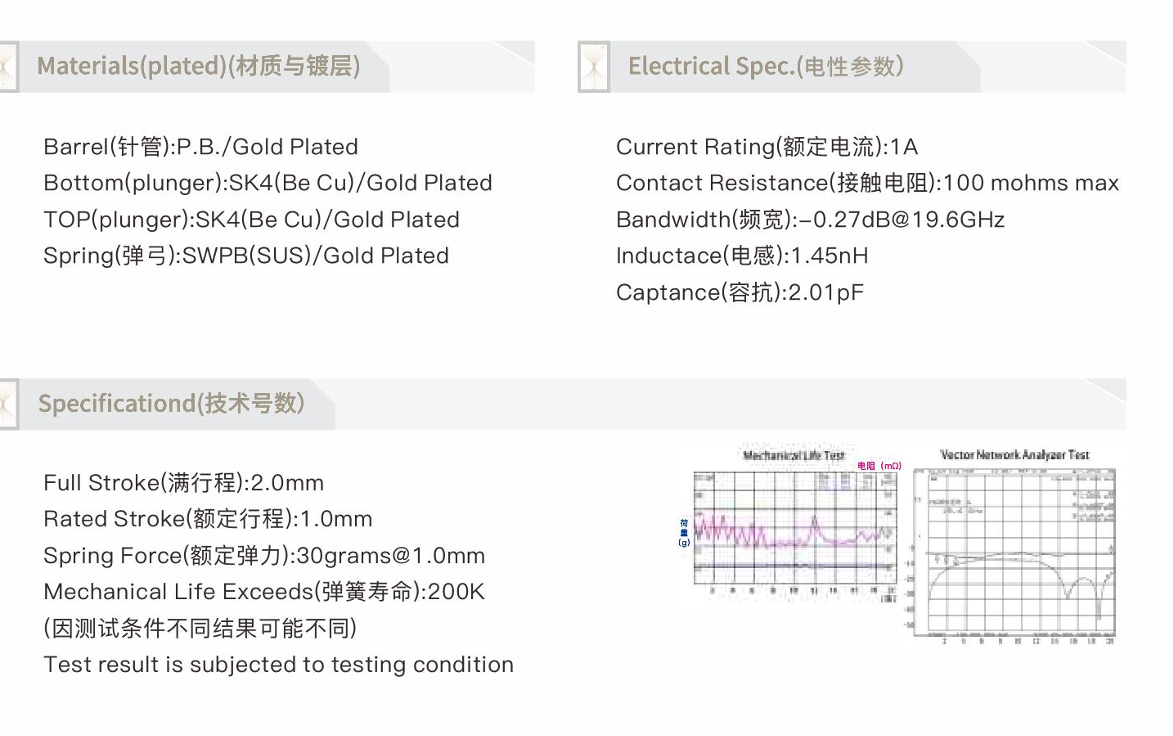

Specifications
Brand Name :
WINNER
Certification :
ISO9100
Place of Origin :
CHINA
MOQ :
3000pcs
Price :
999
Payment Terms :
L/C,Western Union,T/T
Supply Ability :
100000 rolls per month
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
Neutrial Packing or with OEM LOGO
Product name :
spring test probe
Barrel :
P.B., Gold-palted
Bottom Plunger :
BeCu/SK4,gold -plated
TOP Plunger :
SK4(Be Cu)/Gold Plated
Spring :
SWPB(SUS)/Gold Plated
Availability :
Custom sizes available
Coating :
Gold plated
Current Rating :
1A
contact resistance :
100 mohms max
Bandwidth :
-0.27dB @ 19.6GHz
inductace :
1.45nH
Captance :
2.01pF
Full stroke :
2.0mm
Rated stroke :
1.0mm
spring force :
30grams@1.0mm
Mechanical Life Exceeds :
200K
Description
Electric Cable Switching Probe YF DE1-038DD115-01C0
High Efficiency BGA Testing Probes - Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications.
Key Product Features
  • High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
  • Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
  • Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
  • Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory
Production Specifications
Double plunger, push fit test probe for fine pitch components.
Product Images
Double plunger, push fit test probe for fine pitch components.Double plunger, push fit test probe for fine pitch components.

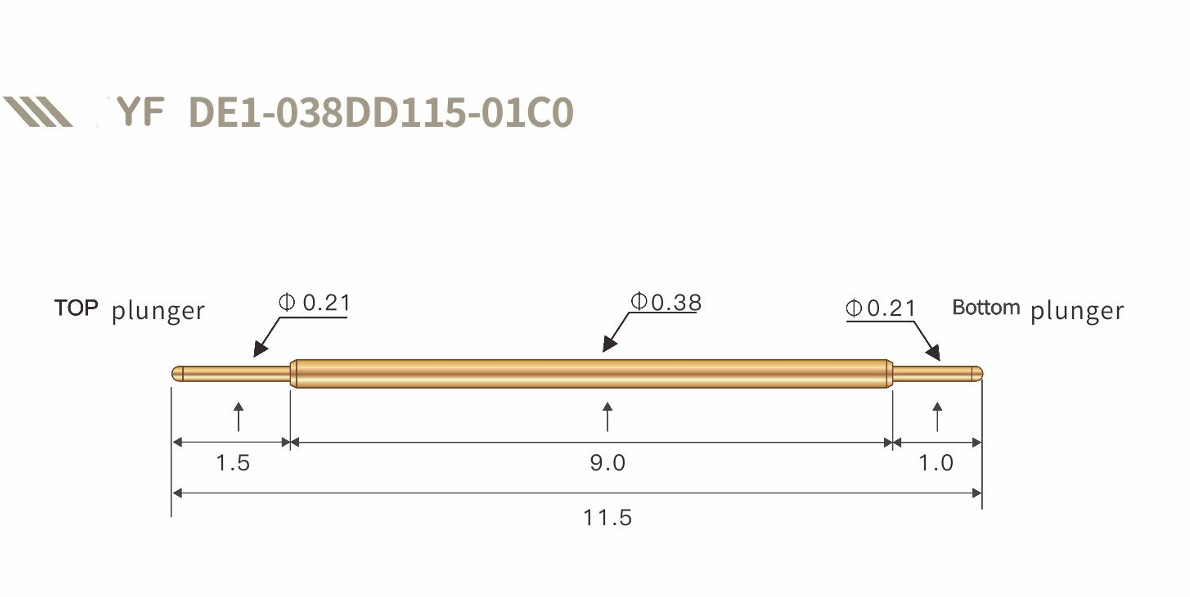

Detailed Component Illustration
Double plunger, push fit test probe for fine pitch components.

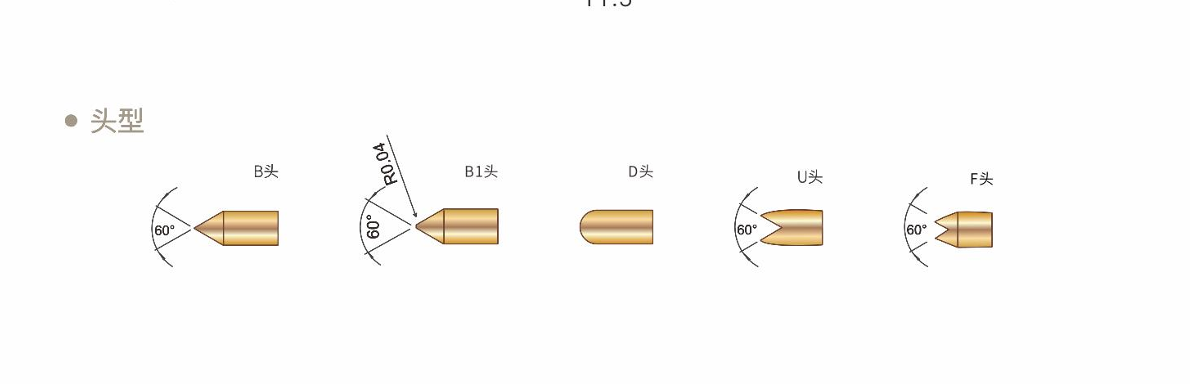

Comparison of different test probe tip types and configurations
Customization Options
SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Manufacturing Process
Double plunger, push fit test probe for fine pitch components.
Our probe manufacturing facility
Double plunger, push fit test probe for fine pitch components.
Quality control inspection
Double plunger, push fit test probe for fine pitch components.
Packaged probes ready for shipment
