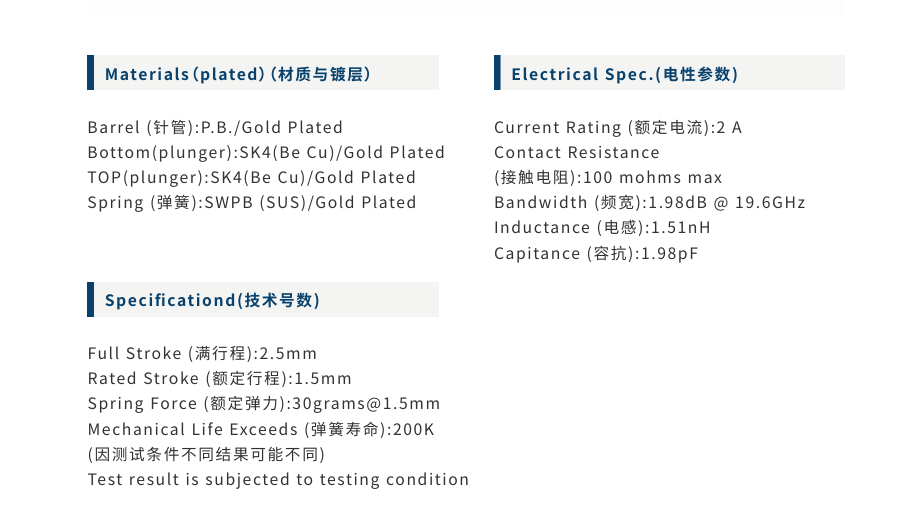

Specifications
Brand Name :
WINNER
Certification :
ISO9100
Place of Origin :
CHINA
MOQ :
3000pcs
Price :
999
Payment Terms :
L/C,Western Union,T/T
Supply Ability :
100000 rolls per month
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
Neutrial Packing or with OEM LOGO
Product name :
spring test probe
Barrel :
P.B., Gold-palted
Bottom Plunger :
BeCu/SK4,gold -plated
TOP Plunger :
SK4(Be Cu)/Gold Plated
Spring :
SWPB(SUS)/Gold Plated
Availability :
Custom sizes available
Coating :
Gold plated
Current Rating :
2A
contact resistance :
100 mohms max
Bandwidth :
1.98dB @ 19.6GHz
inductace :
1.51nH
Captance :
1.98pF
Full stroke :
2.5mm
Rated stroke :
1.5mm
spring force :
30grams@1.5mm
Mechanical Life Exceeds :
200K
Description

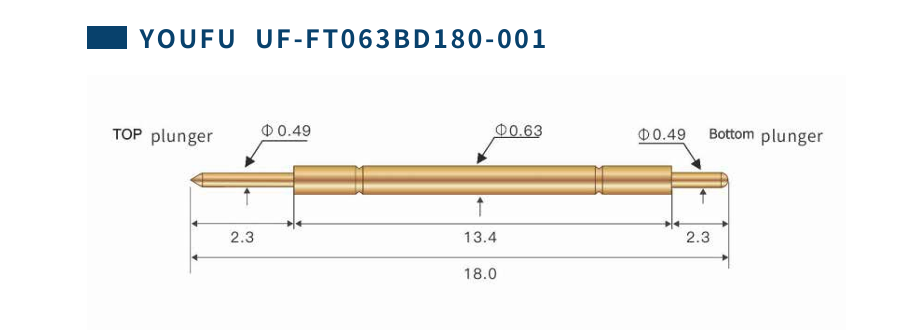

High Quality Switch Contact Pin Test Probe YOUFU UF-FTO63BD180-001

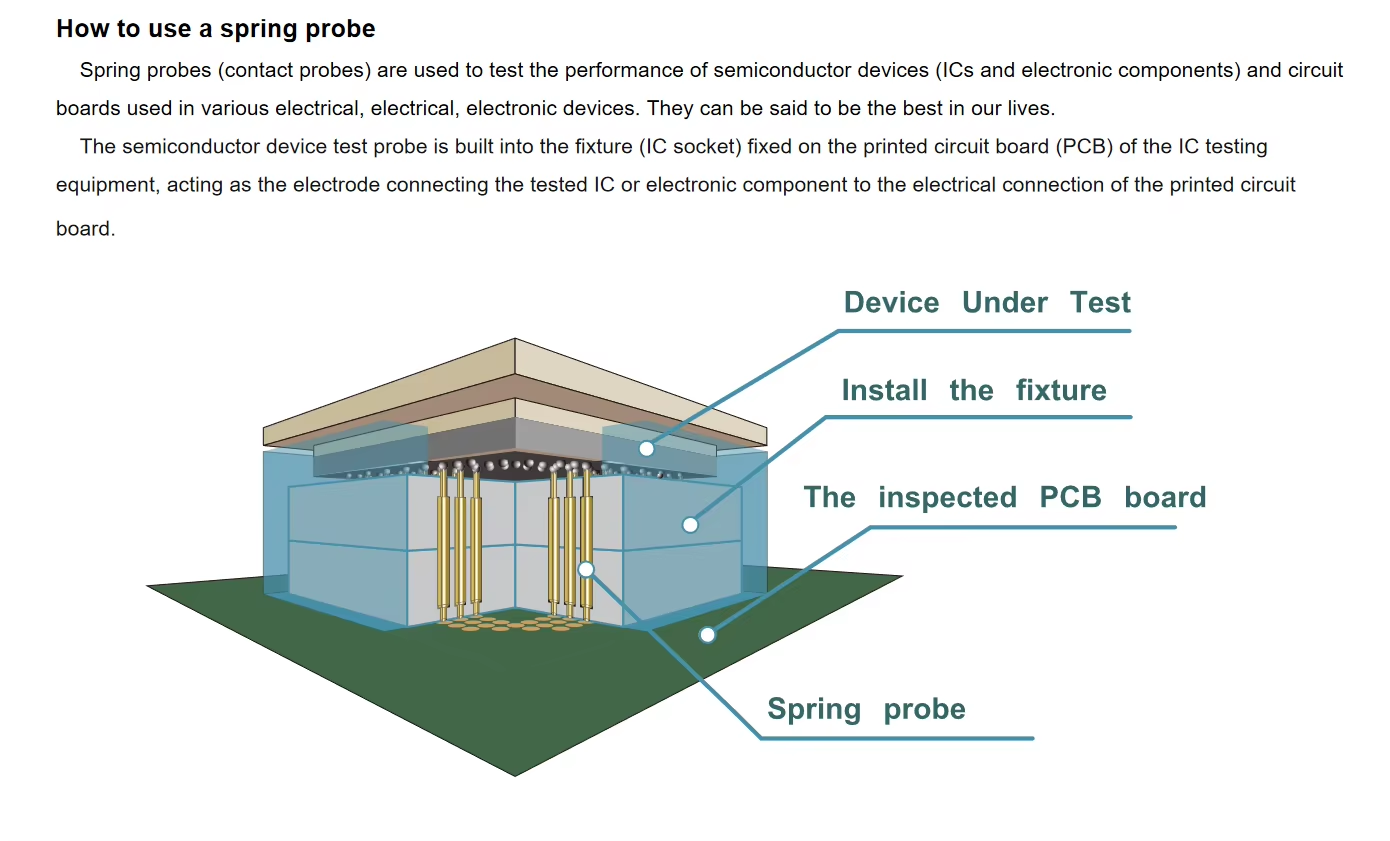

Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities.
Key Product Features
  • High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
  • Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
  • Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
  • Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory
Product Images
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing

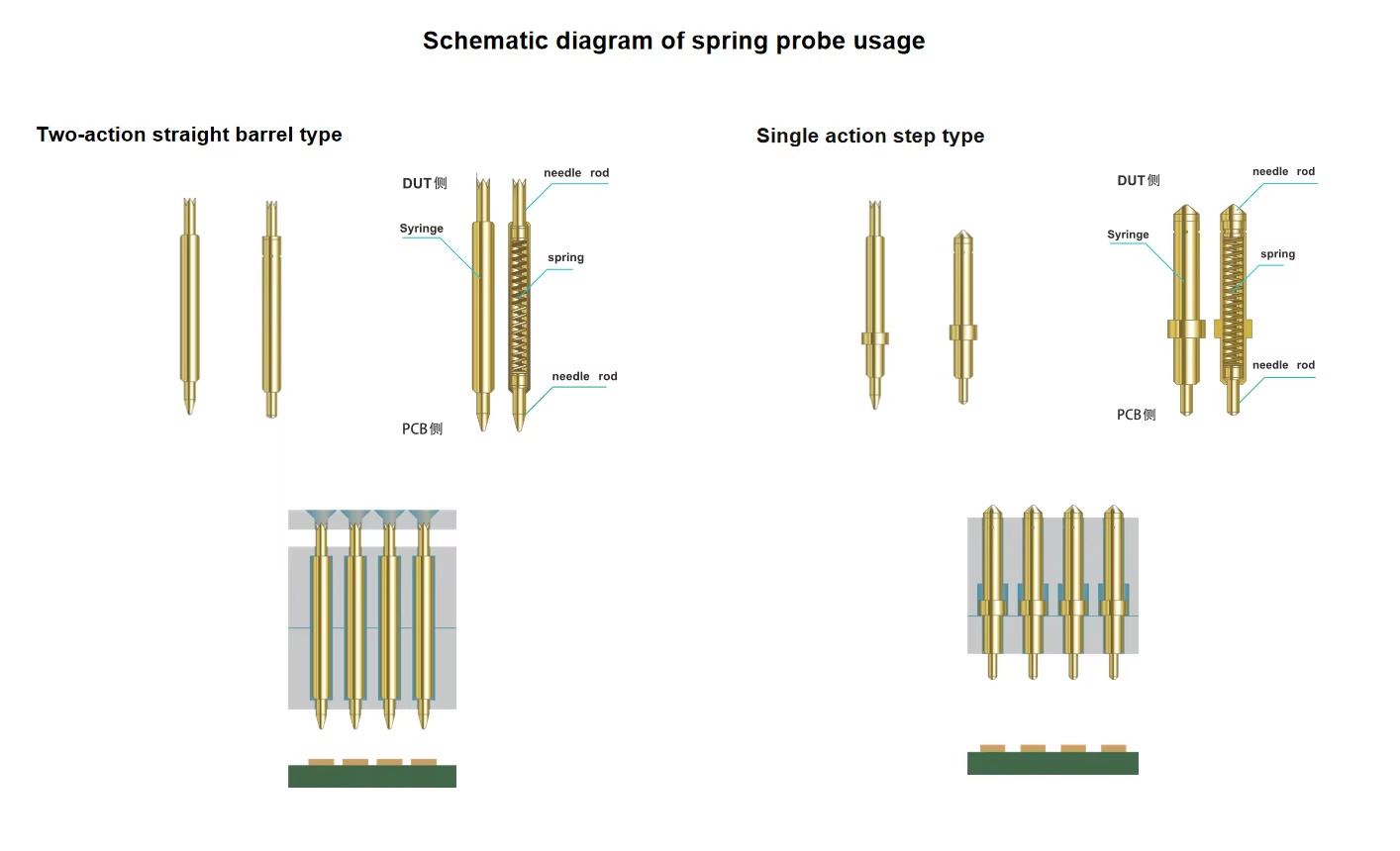

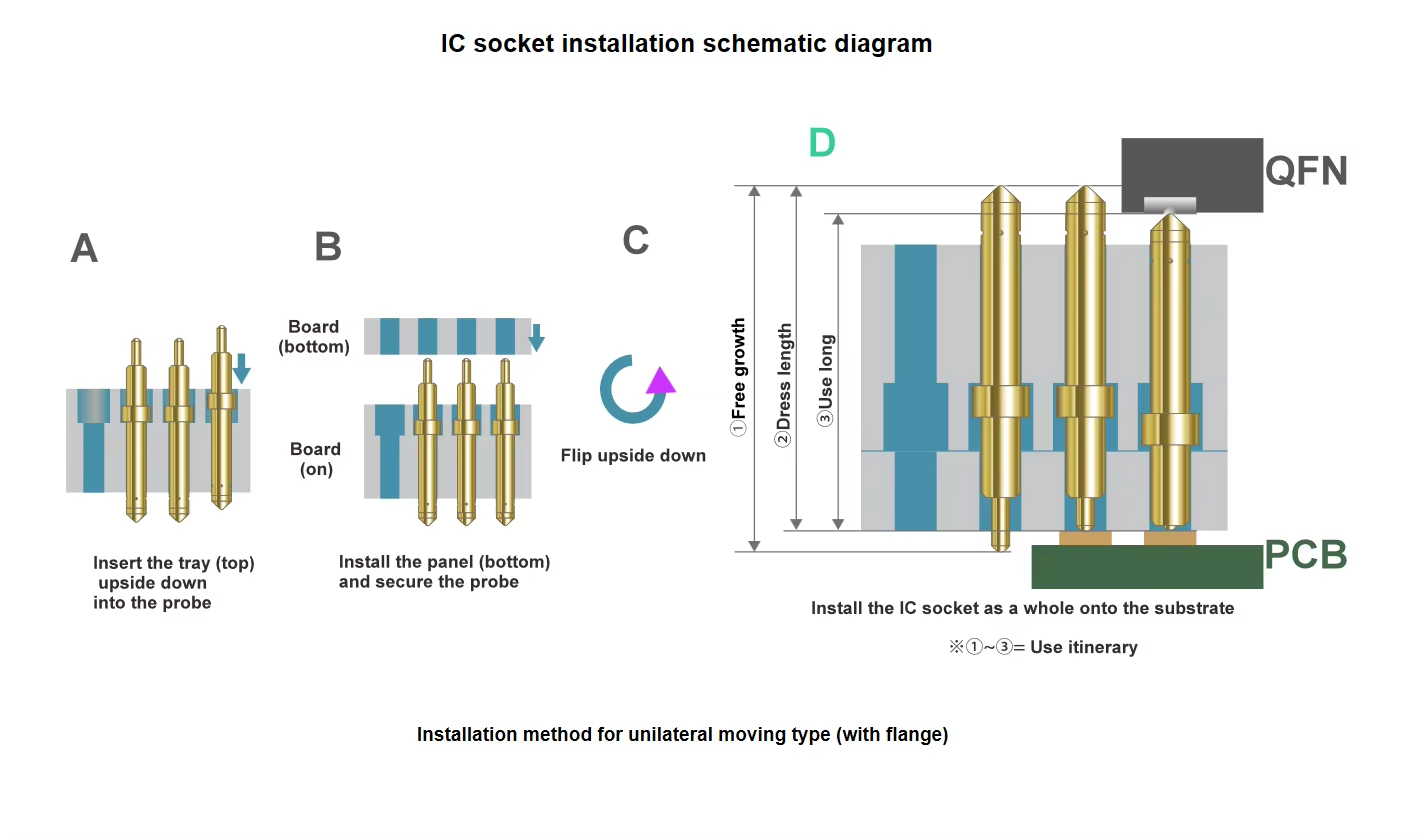

Detailed Component Illustration
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing

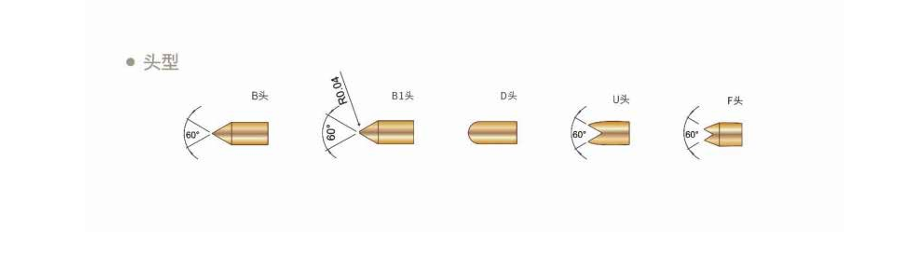

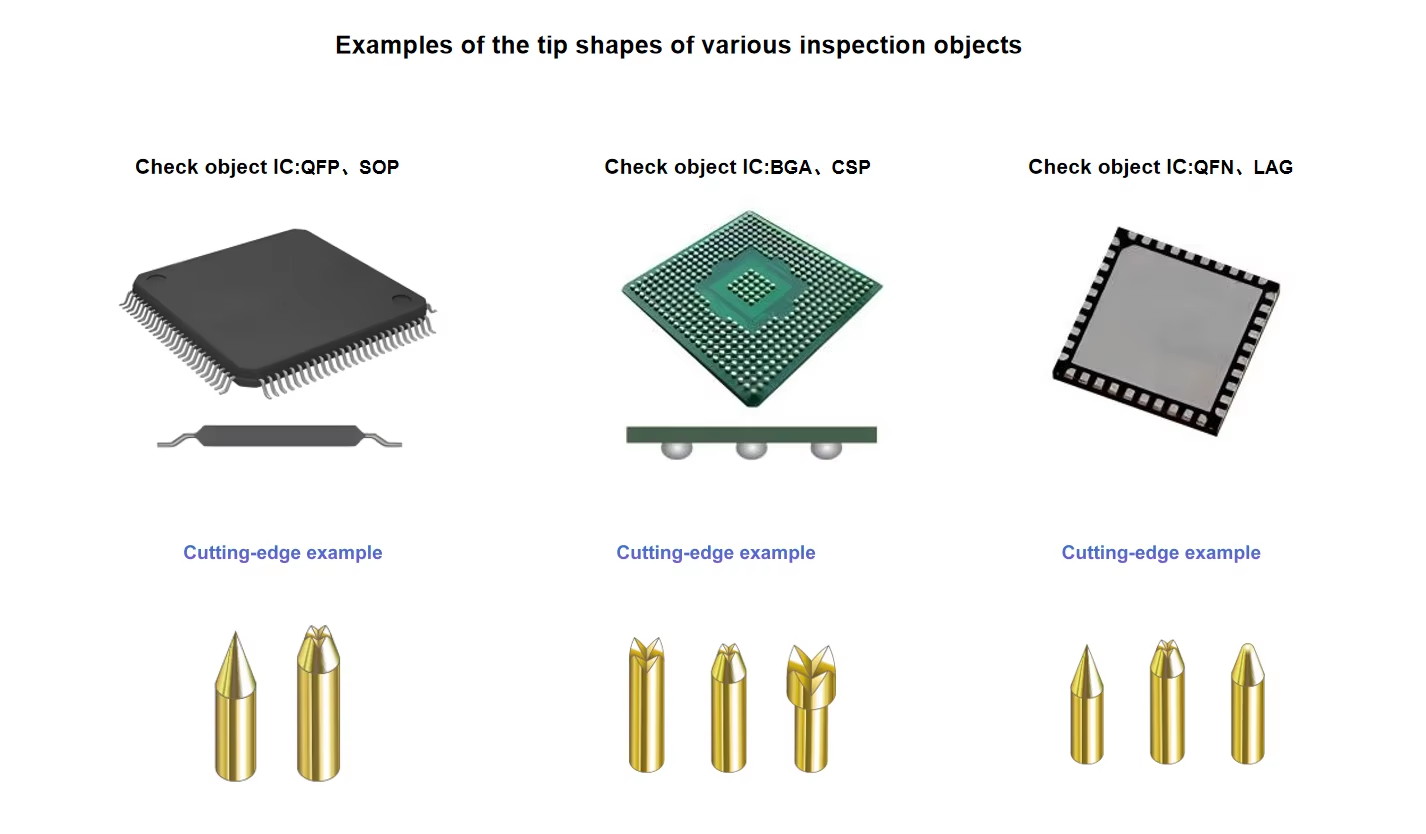

Comparison of different test probe tip types and configurations
Customization Options
SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Manufacturing Process
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing
Our probe manufacturing facility
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing
Quality control inspection
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing
Packaged probes ready for shipment
