High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device
High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device
High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device
High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

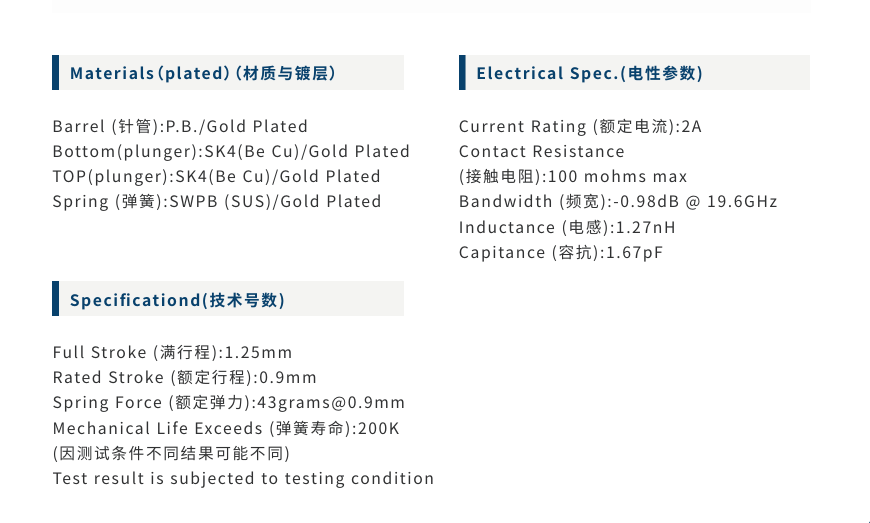

Specifications
Brand Name :
WINNER
Certification :
ISO9100
Place of Origin :
CHINA
MOQ :
3000pcs
Price :
999
Payment Terms :
L/C,Western Union,T/T
Supply Ability :
100000 rolls per month
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
Neutrial Packing or with OEM LOGO
Product name :
spring test probe
Barrel :
P.B., Gold-palted
Bottom Plunger :
BeCu/SK4,gold -plated
TOP Plunger :
SK4(Be Cu)/Gold Plated
Spring :
SWPB(SUS)/Gold Plated
Availability :
Custom sizes available
Coating :
Gold plated
Current Rating :
2A
contact resistance :
100 mohms max
Bandwidth :
-0.98dB @ 19.6GHz
inductace :
1.27nH
Captance :
1.67pF
Full stroke :
1.25mm
Rated stroke :
0.9mm
spring force :
43grams@0.9mm
Mechanical Life Exceeds :
200K
Description
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO58BF066-002
Dual-Head High-Frequency IC Test Probe
Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities.
Key Product Features
  • High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
  • Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
  • Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
  • Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory
Product Images
High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device


High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device


High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

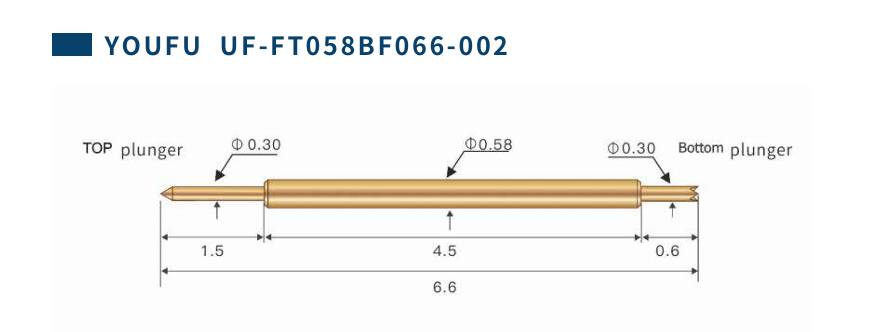

Detailed Component Illustration
High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

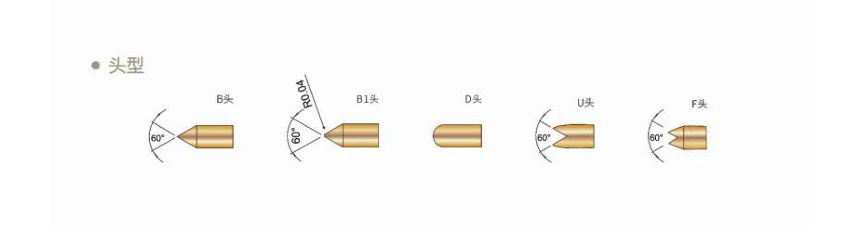

Comparison of different test probe tip types and configurations
Customization Options
SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance.
Manufacturing Process
High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device
Our probe manufacturing facility
High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device
Quality control inspection
High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device
Packaged probes ready for shipment
Contact us to request samples or a quotation for your specific application requirements.
