ANSI/IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL/cUL Certified

Overview


Winley Electric’s 75 kVA single‑phase liquid‑filled pad‑mounted distribution transformer is engineered for reliable outdoor distribution service for residential, commercial and light industrial applications. Designed to meet DOE 2016 efficiency requirements and applicable ANSI/IEEE standards, this conventional ONAN unit delivers high efficiency, robust construction and low maintenance for grid-tied and stand‑alone distribution needs.

ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

Main data

Transformer Type Distribution Transformer, Conventional Type
Transformer Configuration Liquid Filled Pad Mounted
Phase Single Phase
Capacity 75 KVA
Primary Voltage 6900V
Primary BIL 75 kV
Secondary Voltage 460V
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 51 dBA
Efficiency 99.00%

Technical drawings

ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

Feature

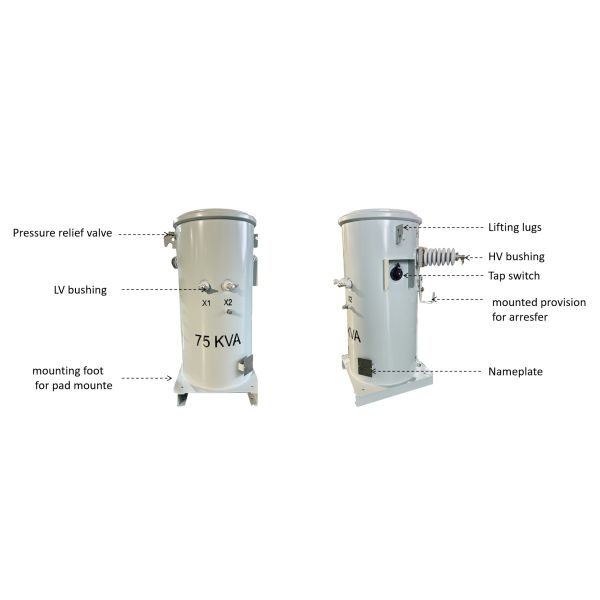

  • Housing Material: Coated steel with corrosion‑resistant cover band and removable top cover
  • Finish Color: ANSI 70 Gray with weatherproof, UV‑resistant epoxy coating and undercoat
  • Lifting Lugs: Included (visible on exterior)
  • Mounting: Pad‑mount base with mounting provisions
  • Hardware: Stainless steel fasteners and external fittings
  • Nameplate & Markings: External nameplate and oil level/inspection markings (internal oil level line indicated at service points)
  • External Bushings: Porcelain high‑voltage side‑mounted bushing and live bushing lugs visible on tank side
  • Access Features: Removable top cover/lid for filling and maintenance;
  • Protective Features: Corrosion‑resistant cover band, sealed weatherproof joints, and grounding lug on tank exterior
  • Sound: Low audible profile (~51 dBA), apparent at typical operating distance

ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

why choose us

Winley Electric is a professional manufacturer of pole transformers, with capacities ranging from 10 kVA to 333 kVA. Our products meet ANSI/IEEE, CSA, IEC, and other standards and have obtained UL/cUL certifications. With decades of professional experience, we provide safe, stable, and efficient designs, along with comprehensive technical support, to offer you reliable power solutions.
