CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
Specifications
Brand Name :
WINLEY
Model Number :
D-50/13.85
Certification :
UL/cUL, CE, ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Transformer Type :
Pole Mounted Transformer
phase :
Single
Capacity :
50 KVA
Primary Voltage :
13856GrdY/8000
Secondary Voltage :
120/240
Cooling method :
ONAN
Winding material :
Aluminum
Standard :
CSA C2.2-06/CSA 802
Description

CSA 2.2 802 Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer

CSA C2.2-06/CSA 802 standards cover all aspects of transformer design, operation and testing to ensure safe, efficient performance, with particular emphasis on reducing energy losses and meeting environmental regulations.

Winley Electric’s single-phase pole-mounted transformers fully comply with CSA requirements and are UL and cUL certified. They offer strong overload capacity, high reliability for continuous operation, and easy maintenance.

UL certification cUL certification

CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer

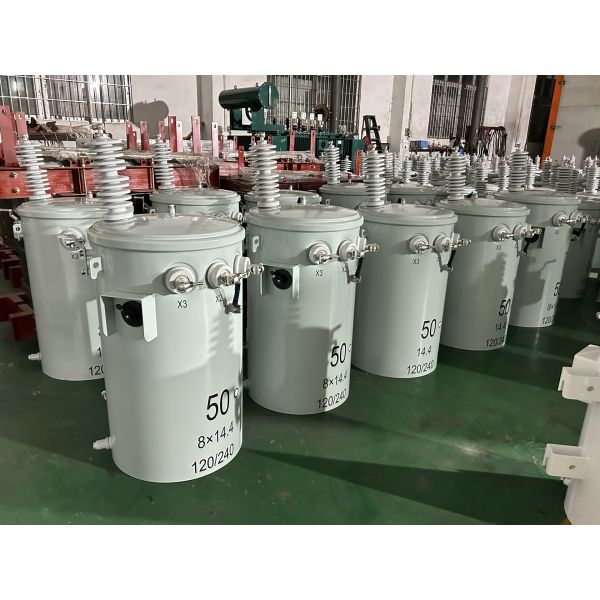

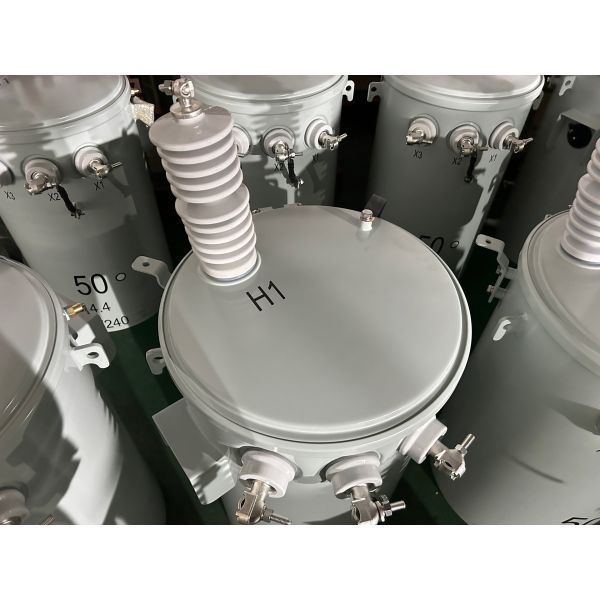

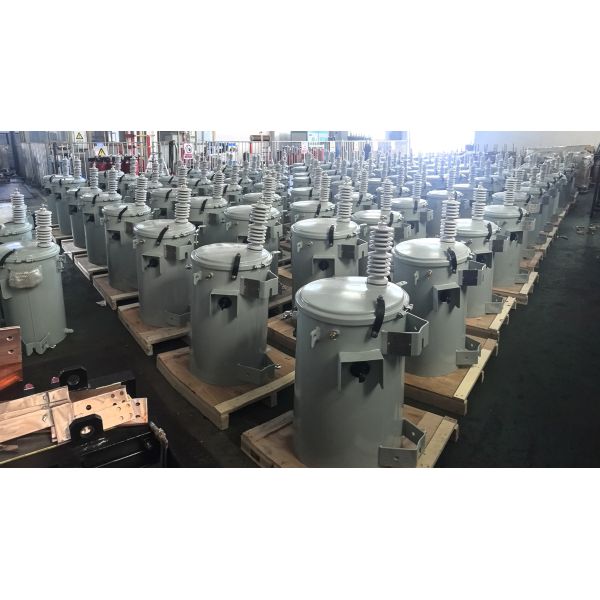

Factory product photos

CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer

CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer

CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer

Main Data

No. ITEM UNIT SPECIFICATION REMARK
1 Type ~ POLE MOUNTED conventional type
2 Rated capacity kVA 50
3 No. of Phase ~ Single Phase
4 Primary voltage V 13856GrdY/8000 Grounded Wye
5 Secondary voltage V 120/240
6 Vector group ~ Ii6
7 Tapping type ~ Off-circuit tapping
8 Tapping range % ±2*2.5
9 Cooling method ~ ONAN
10 Rated frequency Hz 60
11 Insulation class ~ A(105℃)
12 Temperature rise K 65
13 Winding material ~ Aluminum/Aluminum
14 Core material ~ silicon steel
15 Insulation Fluids ~ Mineral oil
16 Dimension mm 625*730*1150 for reference only
17 Weight kg 320
18 Service condition ~ outdoor
19 Sea level m ≤1000
20 Standard ~ CSA C2.2-06/CSA 802

Drawing

CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer

Key Benefits of CSA Standards for Distribution Transformers

  • Energy Savings & Cost ReductionCSA C802 mandates minimum efficiency levels for distribution transformers, minimizing energy losses, cutting grid electricity consumption, and lowering operational costs for utilities and end users.
  • Environmental SustainabilityImproved energy efficiency supports Canada’s carbon emission reduction goals by lessening electricity generation demand, which often depends on fossil fuels, and mitigating the environmental impact of energy systems.
  • Reliability & SafetyCSA-C88-M90 sets strict requirements for temperature limits, insulation, and short-circuit resistance, ensuring transformers operate safely and reliably in Canada’s diverse, harsh environments—from urban centers to remote areas.

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500		 110
220
230
400
480		 II0,II6 IEEE/ANSI/ DOE 1.8-4% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43

Production process

CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer


CSA Standard 50kva Pole Mounted Transformer Oil Type 13856V To 120v cUL Certified Power Pole Transformer
