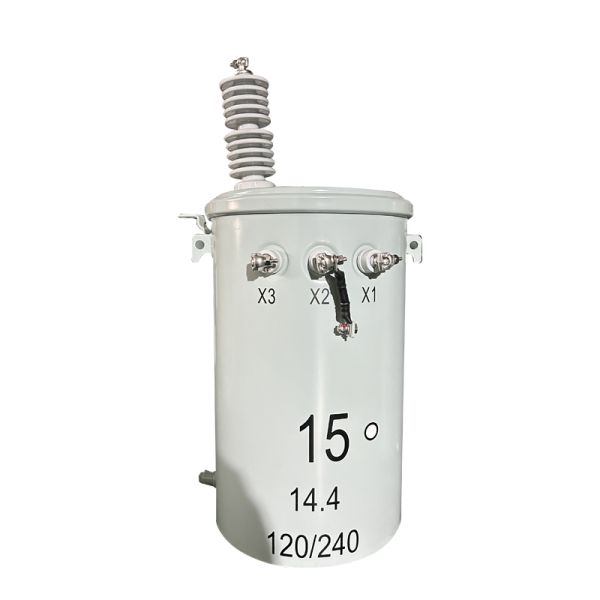

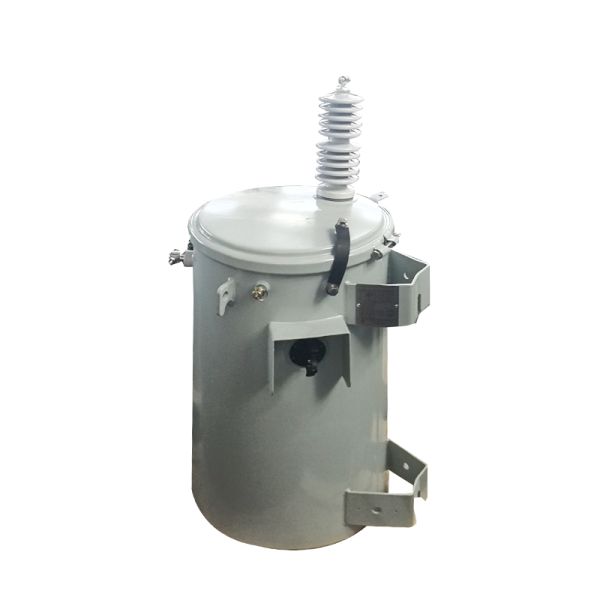

15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified
Specifications
Brand Name :
WINLEY
Model Number :
D-15/13.8
Certification :
UL/cUL, CE, ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Transformer Type :
Pole Mounted Transformer
phase :
Single
Capacity :
15 KVA
Primary Voltage :
13856GrdY/8000
Secondary Voltage :
120/240
Frequency Rise :
60Hz
Winding material :
Aluminum
Standard :
CSA C2.2-06 Standard
Description

15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified

Winley Electric’s single‑phase pole‑mounted transformer is purpose‑built for reliable outdoor distribution in North American networks. Designed and manufactured to meet CSA requirements and carrying cUL certification, this conventional pole‑mounted unit delivers dependable performance, safety, and ease of installation for utility and municipal applications.

15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified

15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified

15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified

Main Data

No. ITEM UNIT SPECIFICATION REMARK
1 Type ~ POLE MOUNTED conventional type
2 Rated capacity kVA 15
3 No. of Phase ~ Single Phase
4 Primary voltage V 13856GrdY/8000 Grounded Wye
5 Secondary voltage V 120/240
6 Vector group ~ Ii6
7 Tapping type ~ Off-circuit tapping
8 Tapping range % ±2*2.5
9 Cooling method ~ ONAN
10 Rated frequency Hz 60
11 Insulation class ~ A(105℃)
12 Temperature rise K 65
13 Winding material ~ Aluminum/Aluminum
14 Core material ~ silicon steel
15 Insulation Fluids ~ Mineral oil
16 Dimension mm 430*510*950 for reference only
17 Weight kg 140
18 Service condition ~ outdoor
19 Sea level m ≤1000
20 Standard ~ CSA C2.2-06/CSA 802

Drawing

15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified

Key Features

  • CSA compliant: Designed to meet CSA C2.2‑06 / CSA 802 standards.
  • cUL certified: Factory tested and cUL qualified for Canadian and U.S. market acceptance.
  • Conventional pole‑mounted design optimized for outdoor service and long-term reliability.
  • Single‑phase, 15 kVA rated capacity—ideal for residential and small commercial distribution.
  • Grounded wye primary: 13,856 V GrdY / 8,000 V for compatibility with common distribution systems.
  • Secondary: 120/240 V with additive polarity and vector group Ii6 for standard North American use.
  • Robust insulation and cooling: ONAN cooling, Insulation Class A (105 °C), 65 K temperature rise.
  • Durable construction: coated steel tank with Munsell 5BG grey painting and mineral oil insulation fluid.

15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified 15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500		 110
220
230
400
480		 II0,II6 IEEE/ANSI/ DOE 1.8-4% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43

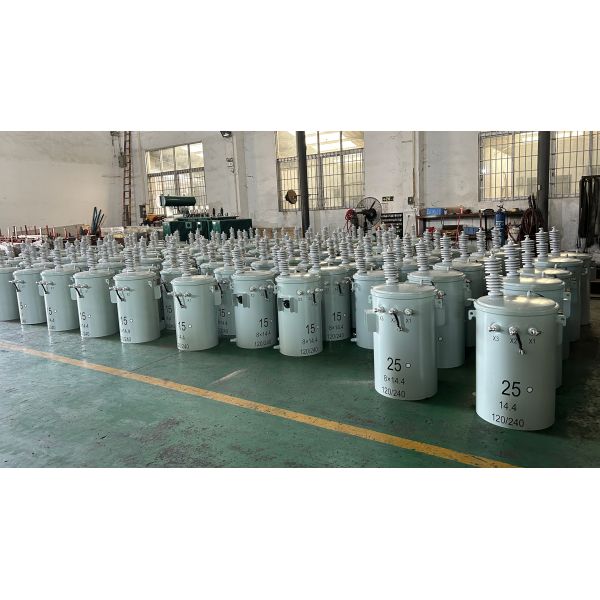

Production process

15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified


15kva Pole Mounted Transformer 13.8kv To 120v Oil Immersed Power Transformer CSA C2.2-06 Standard cUL Certified

Conclusion


Winley Electric’s CSA‑standard, cUL certified single‑phase pole‑mounted transformer combines proven electrical performance with certified safety and rugged outdoor construction—making it a dependable choice for utilities and contractors requiring CSA compliance and cUL qualification.
