25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
Specifications
Brand Name :
WINLEY
Model Number :
D-25/13.85
Certification :
UL/cUL, CE, ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Transformer Type :
Pole Mounted Transformer
Type :
conventional type
Capacity :
25 KVA
Primary Voltage :
13856GrdY/8000
Secondary Voltage :
120/240
Cooling method :
ONAN
Winding material :
Aluminum
Standard :
CSA C2.2-06/CSA 802
Description

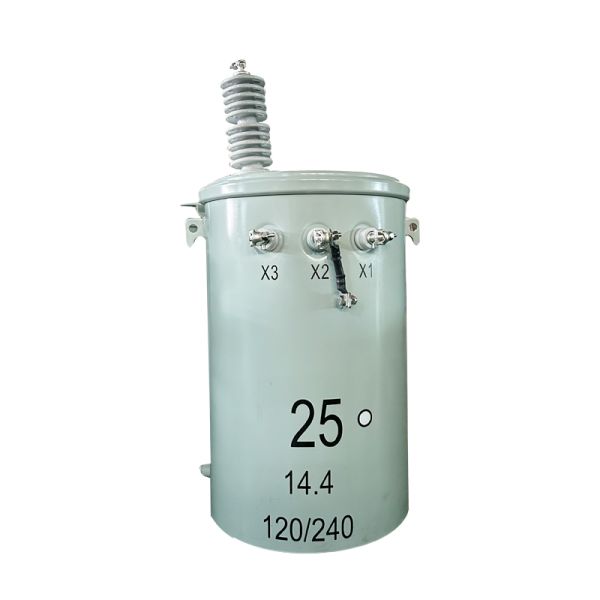

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard cUL Certified


Winley Electric’s 25 kVA single‑phase pole‑mounted transformer is a compact, rugged solution designed for Canadian overhead distribution needs. CUL certified to Canadian/North American standards and backed by a 30‑day delivery promise, this unit meets utilities’ and contractors’ requirements for reliability, code compliance, and fast turnaround.

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard

Winley Electric's pole-mounted transformer UL and CUL certificates

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard 25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
UL certification cUL certification

Key specifications

  • Type: Pole‑mounted (conventional)
  • Capacity: 25 kVA
  • Phase: Single‑phase
  • Primary voltage: 13,856 V GrdY/8,000 (Grounded Wye)
  • Secondary voltage: 120/240 V (additive polarity, vector group Ii6)
  • Primary bushing: 15 kV class, BIL 95 kV porcelain
  • Secondary terminal: (3) 1.2 kV class, BIL 30 kV 2‑hole spades
  • Tap changer: Off‑circuit, range ±2 × 2.5%
  • Cooling: ONAN
  • Frequency: 60 Hz
  • Insulation class: A (105 °C), Temp rise 65 K
  • Losses: No‑load 104 W; Load (85 °C) 377 W
  • Impedance: 1.5–3.0%
  • Windings: Aluminum/Aluminum; Core: Silicon steel
  • Insulation fluid: Mineral oil; Tank: Coated steel (Munsell 5BG grey)
  • Dimensions (approx.): 510 × 590 × 1100 mm; Weight ≈ 240 kg
  • Service: Outdoor, ≤1000 m altitude
  • Standards: CSA C22.2 (CSA C2.2‑06/CSA 802) — CUL certified


Technical drawings

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard

Benefits summary

  • CUL certified for Canadian acceptance and safety compliance
  • Industry‑leading 30‑day delivery to meet tight schedules and emergency needs
  • Compact, durable design for straightforward pole mounting and reduced labor time
  • Low losses and proven materials for efficient, long service life
  • Field‑ready terminals and off‑circuit taps for flexible voltage adjustment


Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)HighLow Voltage(v)Connection SymbolStandardShort-circuit impedance(%)Efficiency
Voltage(v)(%)
104160
7200
12000
12470
13200
13800
19920
24940
34500		110
220
230
400
480		II0,II6IEEE/ANSI/ DOE1.8-4%98.7
1598.82
2598.95
37.599.05
5099.11
7599.19
10099.25
16799.33
25099.39
33399.43

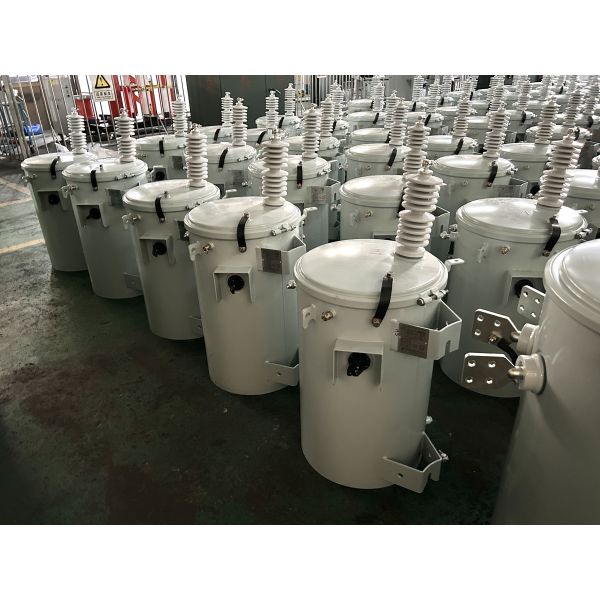

Production process

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard


25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard
