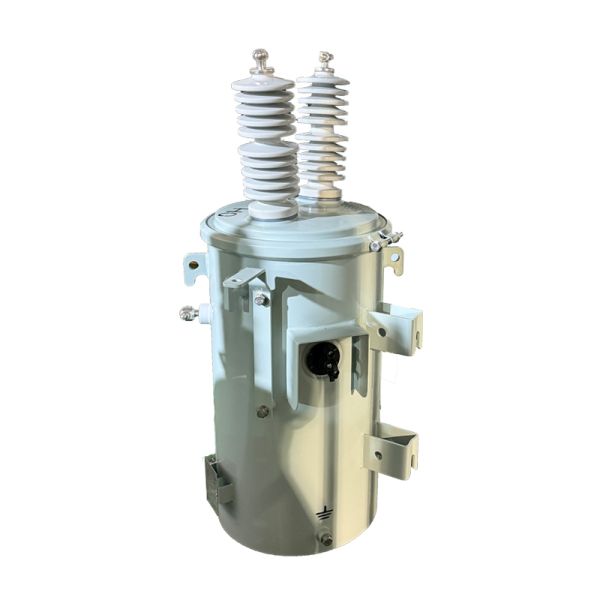

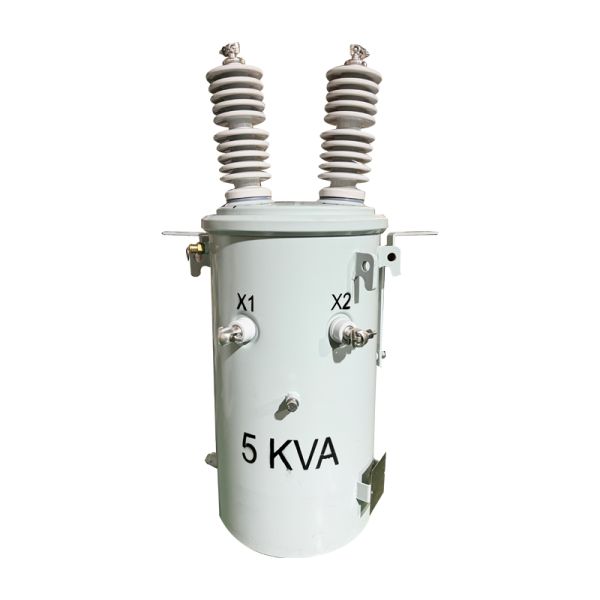

Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards
Specifications
Brand Name :
WINLEY
Model Number :
D-5/24.94
Certification :
UL,cUL,CE,ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
5000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Transformer Type :
Overhead Grounding Distribution Transformer
capacity :
5KVA
Primary Voltage :
24940Y/14400
Secondary Voltage :
120V (L-N)
Power Resistor :
5.2Ω, 55A, 16W Cont. Rating
Maximum Short Circuit Capacity :
40 times the rated current
Winding Material :
Copper
Efficiency Standard(s) :
Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Description

Electric Pole Transformer 5kva 24.94kv To 120v Oil Immersed Power Transformer UL cUL Listed Ansi Ieee CSA DOE 2016 Standards



Winley Electric is a professional manufacturer of pole transformers, with capacities ranging from 1 kVA to 333 kVA. Our products meet ANSI/IEEE, CSA, DOE2016, IEC, and other standards and have obtained UL/cUL certifications.



Overview


Compact 5 kVA pole‑mounted liquid‑filled distribution transformer with an integrated outdoor‑rated resistor cabinet housing Post Glover DB0900‑HNSXA dynamic braking resistors (5.2 Ω, 55 A, 16 W continuous), Designed to ANSI/IEEE, CSA and DOE 2016 standards.



Main data


Transformer Type Overhead Grounding Distribution Transformer
Phase Single Phase
Capacity 5 KVA
Primary Voltage 24940Y/14400
Secondary Voltage 120V (L-N)
Frequency 60 Hz
Temperature Rise 65°C
Maximum Short Circuit Capacity 40 times the rated current
Power Resistor 5.2Ω, 55A, 16W Cont. Rating
Resistor Cabinet Outdoor rated enclosure with Louver, Drip Hood, and Terminal Block
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Primary Conductor Size ≥ 4 AWG
Secondary Conductor Size ≥ 2/0 AWG
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 48 dBA

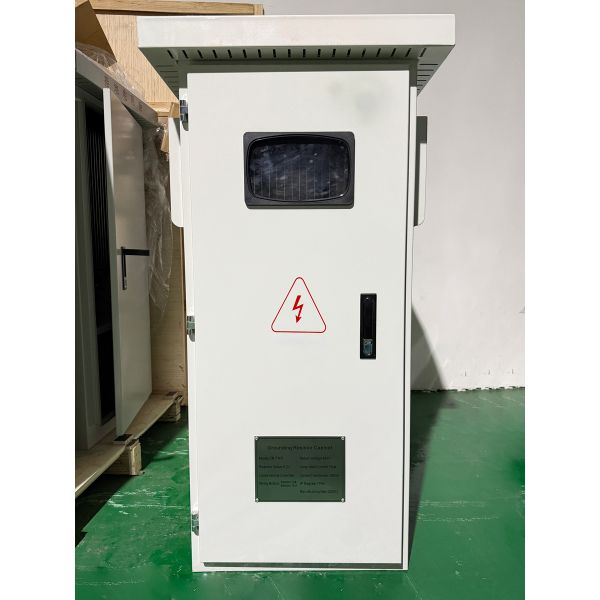

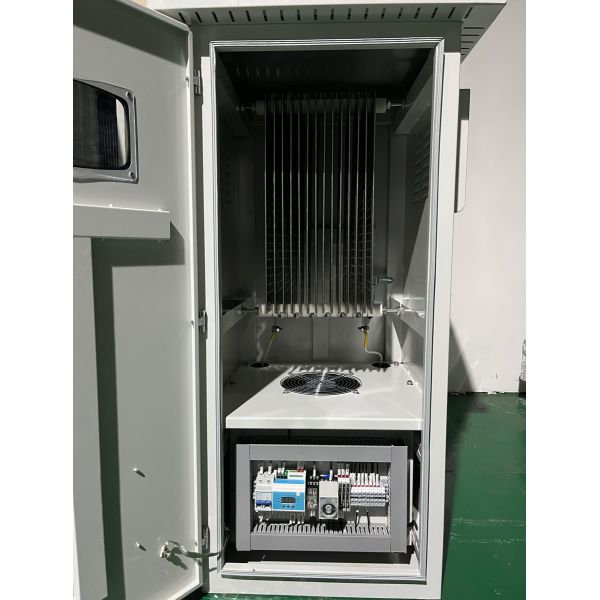

Power Resistor cabinet


The transformer features an integrated outdoor‑rated resistor cabinet housing Post Glover DB0900‑HNSXA dynamic braking resistors (5.2 Ω, 55 A, 16 W continuous) designed to withstand fault conditions up to 40× the rated current, tin‑plated terminals accepting copper or aluminum conductors, and a louvered, drip‑hood enclosure with terminal block and dedicated grounding strap for secure outdoor service.



Features


  • Outdoor‑rated louvered resistor cabinet with drip hood and weatherproof terminal block for clean, protected field connections
  • Corrosion‑resistant coated steel enclosure with stainless steel hardware and UV‑resistant epoxy finish (Munsell 5BG 7.0/0.4, ANSI #70)
  • Compact pole‑mount footprint with double hanger brackets and included lifting lugs for neat installation
  • Tin‑plated terminals and visible grounding lug with copper strap for orderly, professional wiring accessibility
  • Discrete, low‑profile design housing Post Glover DB0900‑HNSXA resistors (5.2 Ω, 55 A) while maintaining a rugged, serviceable exterior


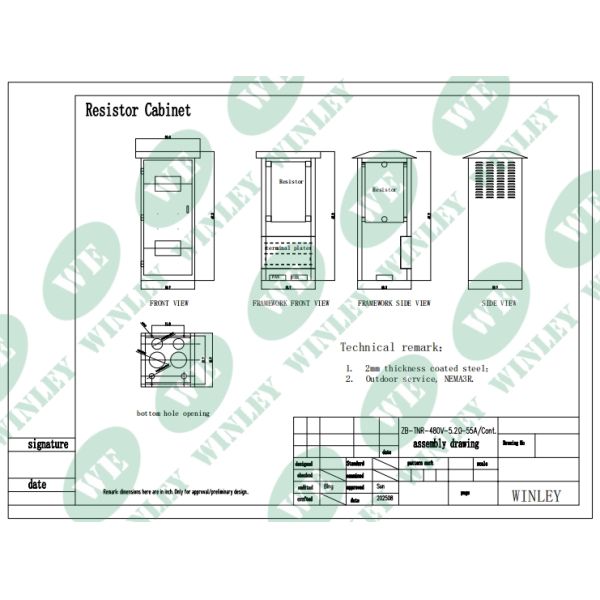

Technical drawings



Ratings


  • Meets/Exceeds DOE 2016 Efficiency Ratings
  • Meets/Exceeds CSA Efficiency Ratings
  • Complies with ANSI / IEEE C57 12.00
  • Complies with ANSI / IEEE C57 12.10
  • Complies with ANSI / IEEE C57 12.30
  • Complies with ANSI / IEEE C57 12.31
  • Complies with ANSI / IEEE C57 12.35
  • Complies with ANSI / IEEE C57.12.90
  • Complies with ANSI / IEEE C62.11
  • Complies with ANSI / IEEE C62.22
  • Complies with ANSI / IEEE C2
  • Complies with ANSI / IEEE C37.47
  • Complies with ANSI Z535.4
  • Complies with ASTM D3487
  • Complies with ASTM D6871
  • Complies with 10 CFR Part 431
  • Complies with CAN / CSA C802.1-13
  • Complies with CAN / CSA C233.1-87
  • Complies with CAN / CSA C50
  • Complies with CSA C2.2
  • Complies with NEMA TP-1 2002


Specifications


10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500		 110
220
230
400
480		 II0,II6 IEEE/ANSI/ DOE/CSA 1.0-4.5% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49

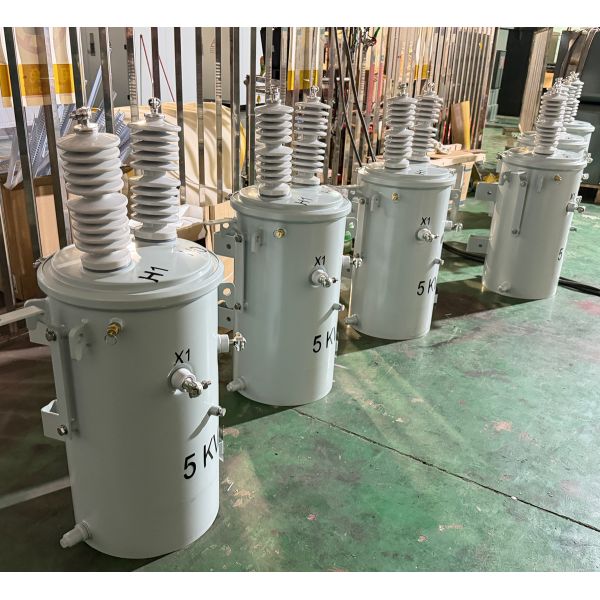

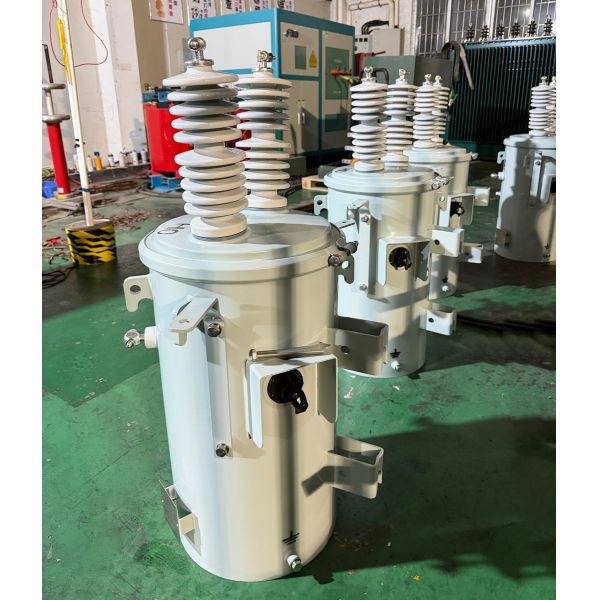

Production process
